4 Channel Hybrid 8MP Digital Video Recorder

4 Channel Hybrid 8MP Digital Video Recorder

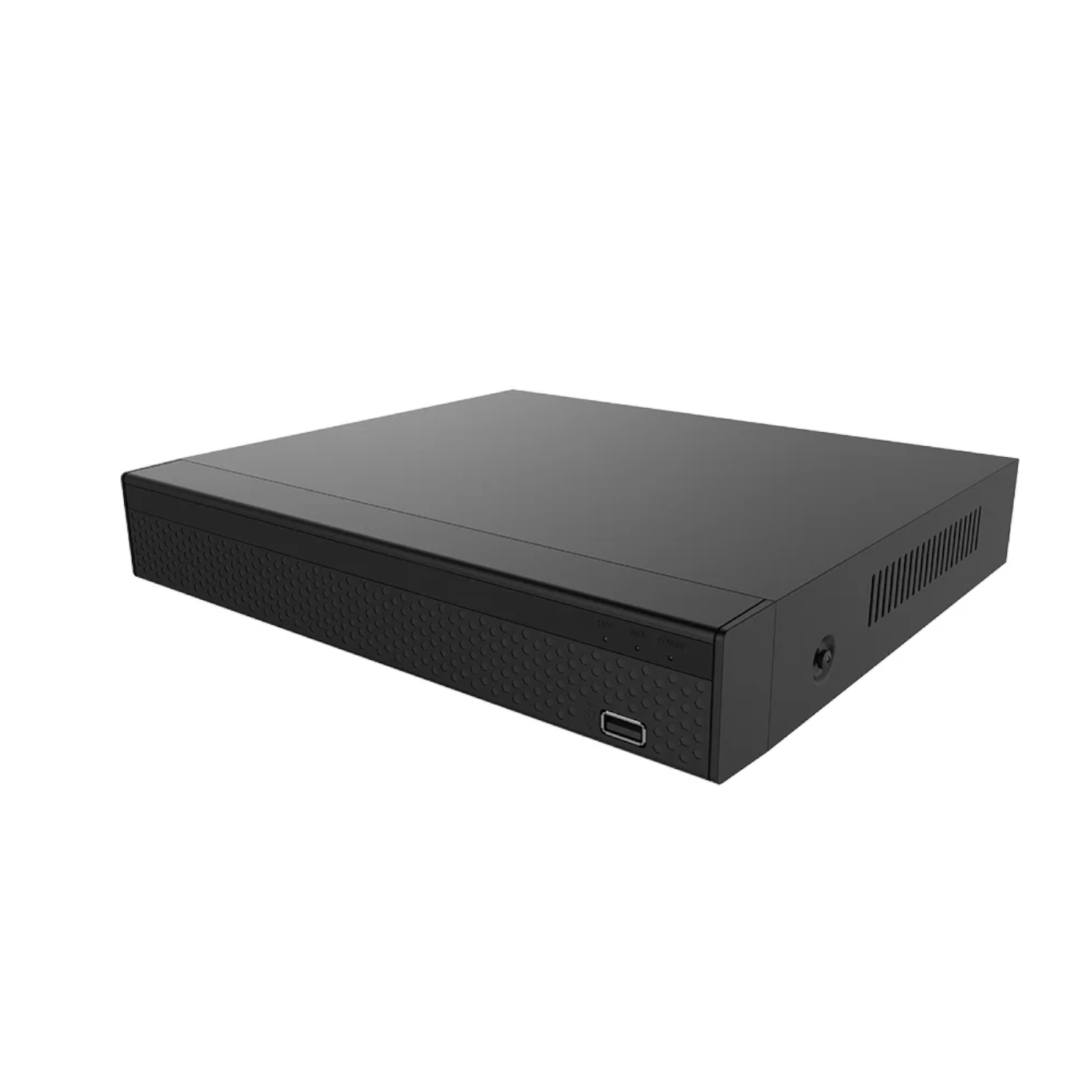

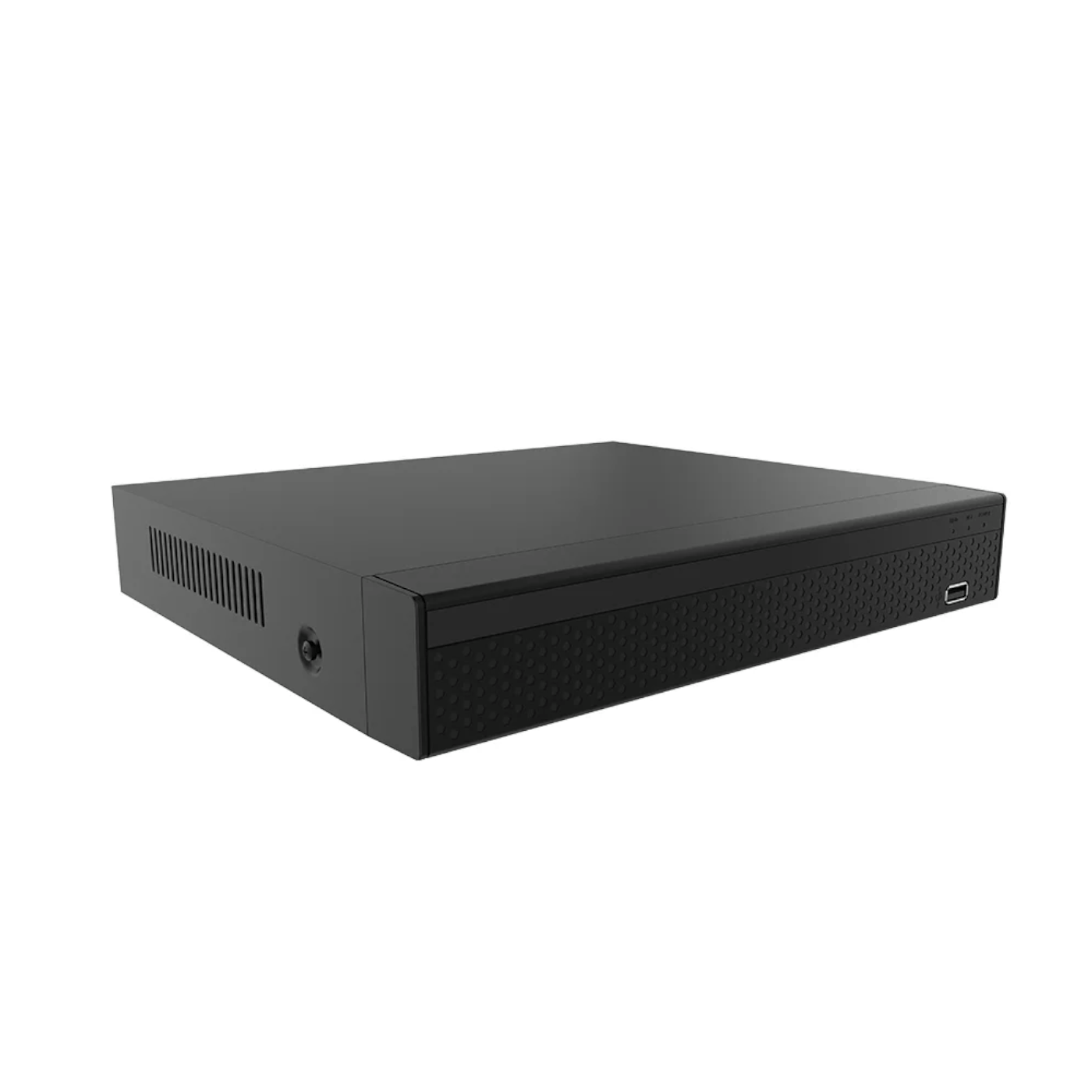

The CST XVR8104N 4 Channel Hybrid 8MP Digital Video Recorder is a 5-in-1 surveillance recording device that supports up to four channels BNC based cameras [AHD/TVI/CVI/CVBS/IP Cameras], and can handle video resolutions up to 8 megapixels (4K).

Features 4-Analog Inputs, and Up To 16-IP Cameras

It is a hybrid DVR, meaning it is compatible with both Analog and IP cameras, offering flexibility in security setups.

Key Features

• • 4-Channel Input: Supports up to 4 Analog HD Cameras, 16 IP Cameras (Analog, HD-TVI, AHD, CVI, and IP).
  • 8MP Recording: Capable of recording at 4K resolution for high-quality video.
  • Hybrid Compatibility: Works with traditional coaxial analog cameras and most third-party IP cameras.
  • H.265+/H.264 Compression: Efficient video compression for optimized storage and bandwidth.
  • Remote Access: View live or recorded footage via mobile apps, web browsers, or PC software.
  • Storage Support: Support up to 8TB HDDs for local storage.
  • Motion Detection & Alerts: Sends notifications for detected motion via email or mobile push alerts.
  • HDMI & VGA Output: Supports high-resolution monitor connections for clear playback.
  • USB & Network Backup: Allows video backup via USB drives or network storage.
  • Cloud & P2P Support: Enables easy remote viewing without complex network configurations.

System Specifications

• • System: Hybrid 8MP Digital Video Recorder
  • Camera Type Support: 5-in-1 [AHD/TVI/CVI/CVBS/IP Cameras]
  • Analog HD Camera Input: 4
  • IPC Camera Input: 16
  • Recording Resolution: 8MP-N@8fps, 5M-N@10fps, 5M@6fps, 4M-N@15fps, 4M@8fps,3M-N@18fps, 3M@9fps, 2M@15fps, IPC 16CH@30fps max.
  • Video Output: 1-HDMI, 1-VGA, 1-BNC
  •  P2P Video Input: 4HD + 2IPC
  • Network: LAN [10/100/1000Mbpsself-adaptive Ethernet interface]
  • USB: 2
  • Audio: Yes
  • Alarm: Yes
  • RS485: Yes
  • Hard Drive: 3TB included [1-Drive Bay 8TB Max]
  • Power Supply: 115 ~ 230V 12V 2amp
  • Dimension: Width = 12 | Length = 12 | Height = 3.5 inches
  • Weight: 10 pounds

Ideal For

• • Offices, and Businesses
  • Apartment and Office Buildings
  • Retail Stores and Warehouses
  • Schools and Hospitals
  • Parking Lots and Public Spaces

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 1 XVR8104N XVR System
  • 3-tb Hard drive
  • 1 SATA cables
  • Mounting screws
  • Manual & installation instructions

Manufacturer Warranty

• • 2 Year System & Harware Limited Warranty
