Description

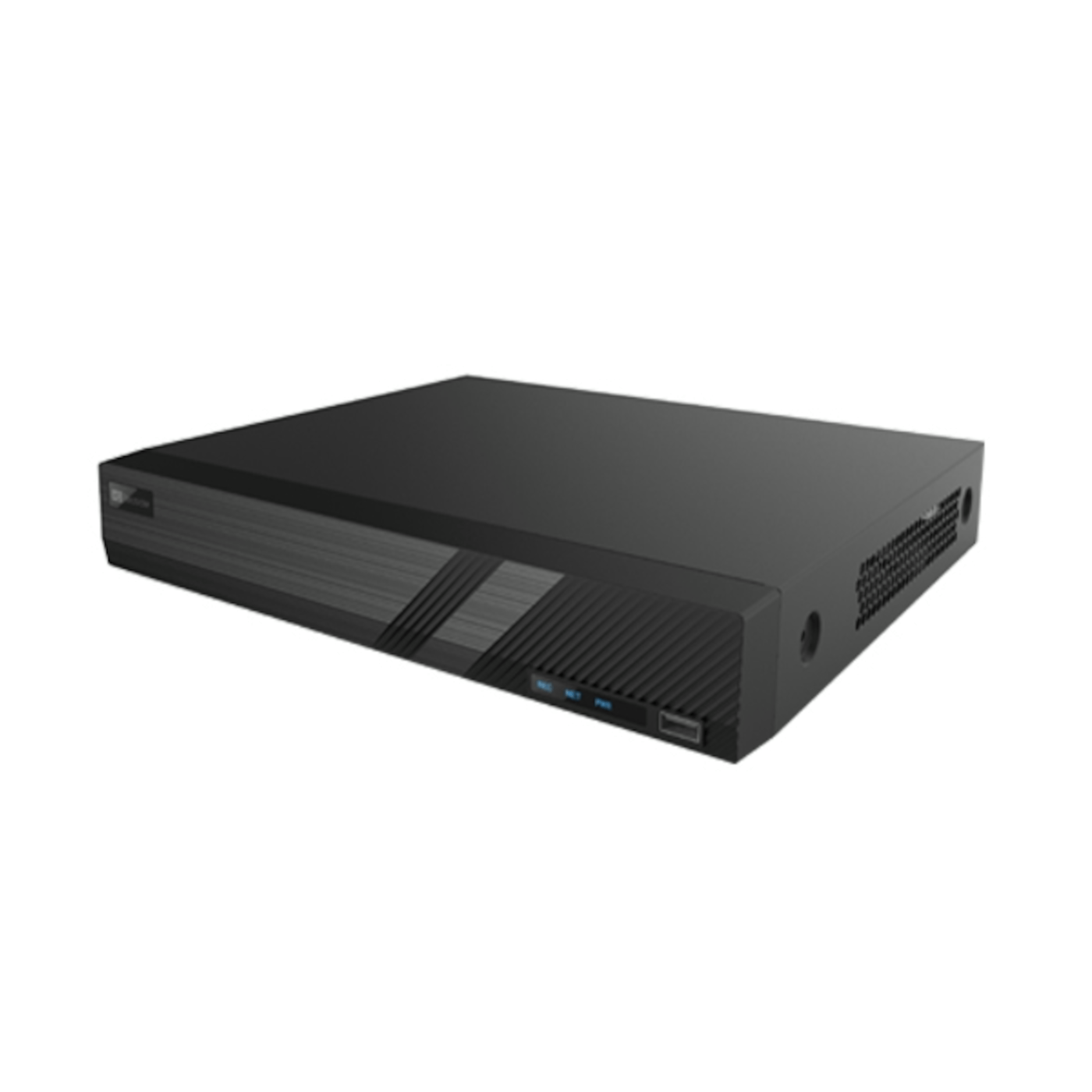

YCX 8MP 32-Channels H.265 5 IN 1 Hybird DVR

This YCX 8MP 32-Channel H.265 5-in-1 Hybrid DVR is a high-performance digital video recorder designed for professional-grade surveillance applications.

Features Multiple Cameras Technology AHD, TVI, CVI, CVBS, and IP

This YCX 8MP 32-Channel H.265 Hybrid DVR is an excellent solution for anyone seeking a scalable, high-resolution, and feature-packed surveillance system with maximum compatibility and efficiency.

Key Features

    • 32-Channel Input: Supports up to 32 cameras for extensive surveillance coverage.
    • 8MP (4K) Ultra HD Resolution: Captures crystal-clear images and videos for superior security monitoring.
    • H.265 Video Compression: Efficiently reduces file size without compromising quality, maximizing storage capacity.
    • 5-in-1 Hybrid Technology: Compatible with AHD, TVI, CVI, CVBS, and IP cameras.
    • Remote Viewing & Mobile App Support: Access live video remotely via a smartphone, tablet, or PC.
    • Motion Detection & Alerts: Sends real-time push notifications and email alerts upon motion detection.
    • Multiple Recording Modes: Supports continuous, scheduled, and motion-based recording.
    • HDMI & VGA Output: Supports multiple display options for flexible monitoring.
    • Up to 16TB Storage Support: Compatible with SATA hard drives for extensive video storage.
    • Cloud Backup & USB Export: Allows easy backup and retrieval of footage.
    • Night Vision & PTZ Support: Works with infrared cameras and PTZ (Pan-Tilt-Zoom) cameras for enhanced surveillance.
    • ONVIF Support: Ensures seamless integration with third-party IP cameras.

Device specification

    • System Compression: Standard H.265 High Profile
    • OS: Embedded Linux
    • Video Input: BNC X32
    • Resolution: TVI/AHD : 8MP/5MP/4MP/3MP/1080P/720P/WD1 | CVI : 4MP/3MP/1080P/720P/WD1
    • IP Input: 8 Channels [Up to 16CH]
    • Output: HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1024 × 768 | VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768
    • BNC × 1 : CVBS ( used as the main or spot output )
    • Audio Input: RCA × 1
    • Output: RCA × 1
    • Two-way audio: Take up channel one audio input
    • Recording Resolution: 4K/4K Lite/5MP/5MP Lite/4MP/4MP Lite / 1080P/720P/WD1/D1
    • Frame Rate: 4K@6/7fps (PAL/NTSC;Odd channels can support) | 4K Lite@12fps/15fps (PAL/NTSC) 5MP@12fps (PAL / NTSC) 5MP Lite@20fps (PAL / NTSC) 4MP@12fps(PAL) / 15fps (NTSC)4MP Lite/1080P/720P/WD1@25fps (PAL) / 30fps (NTSC)
    • Bit Rate: 32Kbps ~ 5Mbps (main stream)
    • Mode: Manual, timer, motion
    • IP Input Resolution: 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P
    • Frame Rate: 25fps ( PAL ) / 30fps ( NTSC )
    • Play back: 16 Channels
    • Search Time: Time slice / time / event / tag search/Smart Search/Highlight colors to display the camera record in a certain period of time, different colors refer to different record events
    • Function: Play, pause, FF, FB, digital zoom, etc.
    • Alarm Mode: Manual, motion, exception | Input: No | Output: No | Triggering: Record, snap, preset, e-mail, etc.
    • Network: RJ45 100Mbps × 1 | Protocol: TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP Accss/Transfer Bandwidth 32/96 (access/transfer)
    • Mobile Device: OS, iOS, Andriod
    • Storage: HDD SATA× 4, up to 8TB per HDD
    • Backup: Local Backup U disk, USB removable HDD | Network Backup: Yes | Port: RS485 | RS485 × 1, connect to PTZ or keyboard
    • USB: USB 2.0 × 2
    • Power Supply: DC12V / 4A
    • Consumption: ≤ 30W ( without HDD )
    • Operating Temperature: -10 ~ 50 ℃,10% ~ 90% humidity
    • Dimensions: 15.0 × 10.6 × 2.1 inches ( W × D × H )

Ideal For

    • Offices, and Businesses
    • Apartment and Office Buildings
    • Retail Stores and Warehouses
    • Schools and Hospitals
    • Parking Lots and Public Spaces

Got Application Customization Questions?

    • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
    • Email our Sales Department to get an answer within 24-hours
    • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

    • 1 XVR6232-V2 XVR System
    • 3-tb Hard drive
    • 4 SATA cables
    • Mounting screws
    • Manual & installation instructions

Manufacturer Warranty

    • 2 Year System & Harware Limited Warranty
Additional Information
Weight 35 lbs
Dimensions 10.6 × 15.0 × 2.1 in
Technology Option

4K, 5-In-1, 8MP, AHD, CVBS, CVI, IP, LAN, Mobile APP, TVI

Hard Drive Included

3TB, 6TB, 9TB, 12TB, 15TB
