2.4GHz 3-Watts Wireless Video And Audio Transmitter + Receiver

2.4GHz 3-Watts Wireless Video And Audio Transmitter + Receiver

The WT-2304 2.4GHz 3-Watts Wireless Video And Audio Transmitter + Receiver is a wireless system designed for transmitting video and audio signals up to a distance of 2,400 feet without requiring cables. It operates on the 2.4GHz frequency band, which is commonly used for wireless communication.

Video & Audio Support: Supports real-time video and audio transmission with low latency

Multi-media audio video Wireless Transmitter with super stable operation. Features 4-selectable channels with up to 2400-feet operating distance in open space. Can transmit high quality Stereo Audio feed from devices like DVD Players, Camcorder Cameras, Satellite Media Players and all Audio Sound Systems.

Key Features

• • Operating Frequency: 2.4GHz (ISM band)
  • Transmission Power: 3 Watts (high power for long-range transmission)
  • Range: Can transmit over long distances, typically 2400-feet (depending on environmental conditions and obstructions)
  • Video & Audio Support: Supports real-time video and audio transmission with low latency
  • Multiple Channels: Often includes multiple selectable channels to avoid interference
  • Applications: Suitable for wireless CCTV, drone FPV systems, remote monitoring, and live broadcasting
  • Receiver Output: Compatible with TVs, monitors, and AV recording devices
  • Antenna: Often includes high-gain antennas for improved signal stability

Common Uses

• • Wireless security camera systems
  • Remote video surveillance
  • FPV (First Person View) for drones or RC vehicles
  • Wireless broadcasting for events
  • AV transmission in areas where running cables is impractical

Device Specification

• • Transmitter
    • Power: 3 W
    • Voltage: 12V
    • Current: 300ma
    • Temp: -30——-120degree
    • Input impedence: 75ohm
    • Input level: 1VP-P
    • Video format:  NTSC/PAL
    • Modification mode: FM
    • Transmitting frequency: 2370MHZ-2510MHZ
    • Channels: 8
  • Receiver
    • Receiving antenna gainning: 7Dbi
    • Voltage: 12V
    • Current: 160ma
    • Temp: -30——-120degree
    • Input impedence: 75ohm
    • Input level: 1VP-P
    • Receiving sensitivity: -90dbm
    • Modification mode: FM
    • Transmitting frequency: 2370MHZ-2510MHZ
    • Channel: 8

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

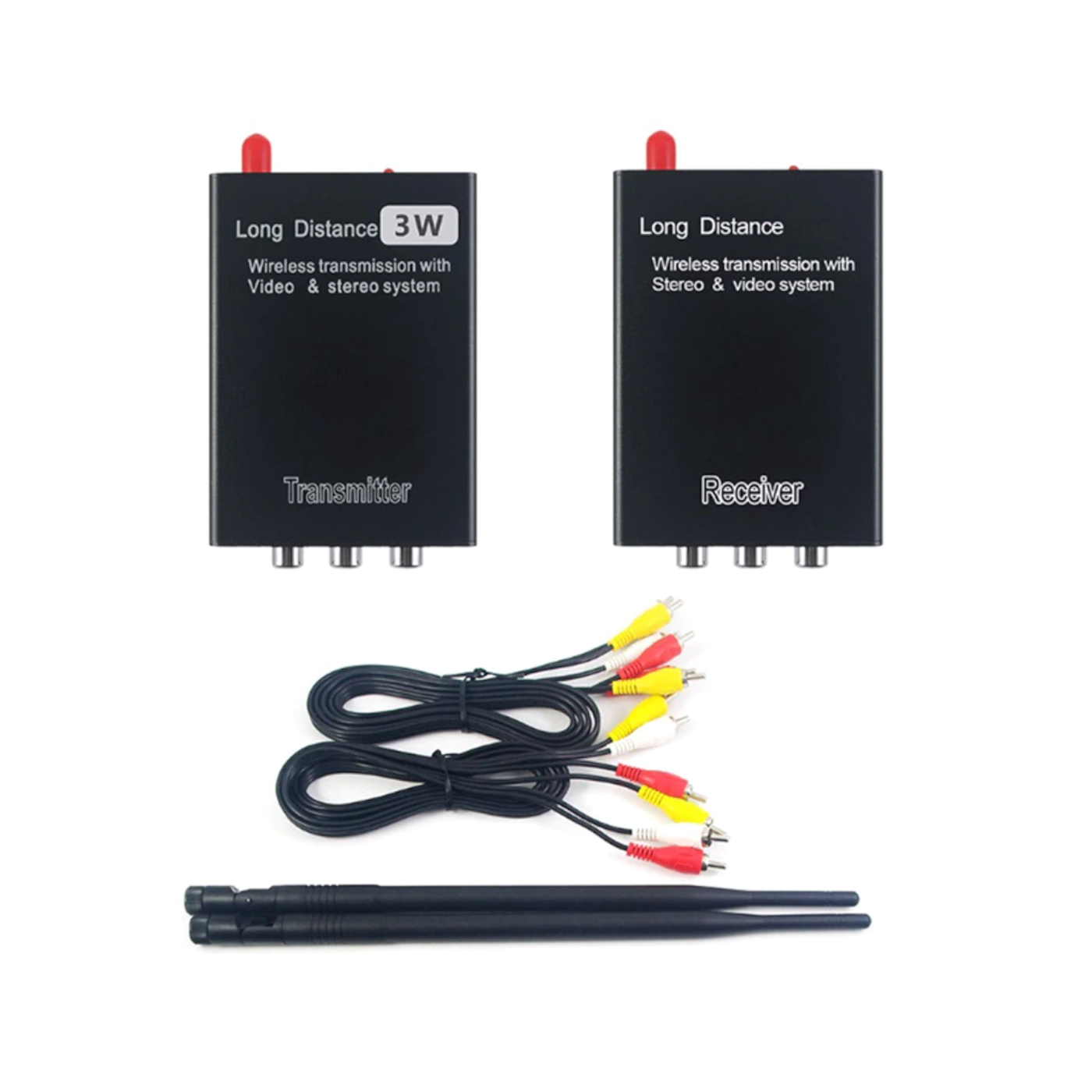

Included Items & Accessories

• • 1 x 5W 2.4GHz AV Transmitter
  • 1 x 2.4GHz AV Receiver
  • 2 x Antennas
  • 1 x Power Adapter (for receiver)
  • 1 x Power Cable (for transmitter)
  • 1 x User Manual

Manufacturer Warranty

• • 1 Year System & Harware Limited Warranty
