2.4G 1KM PTP PTMP Wireless Bridge

2.4G 1KM PTP PTMP Wireless Bridge

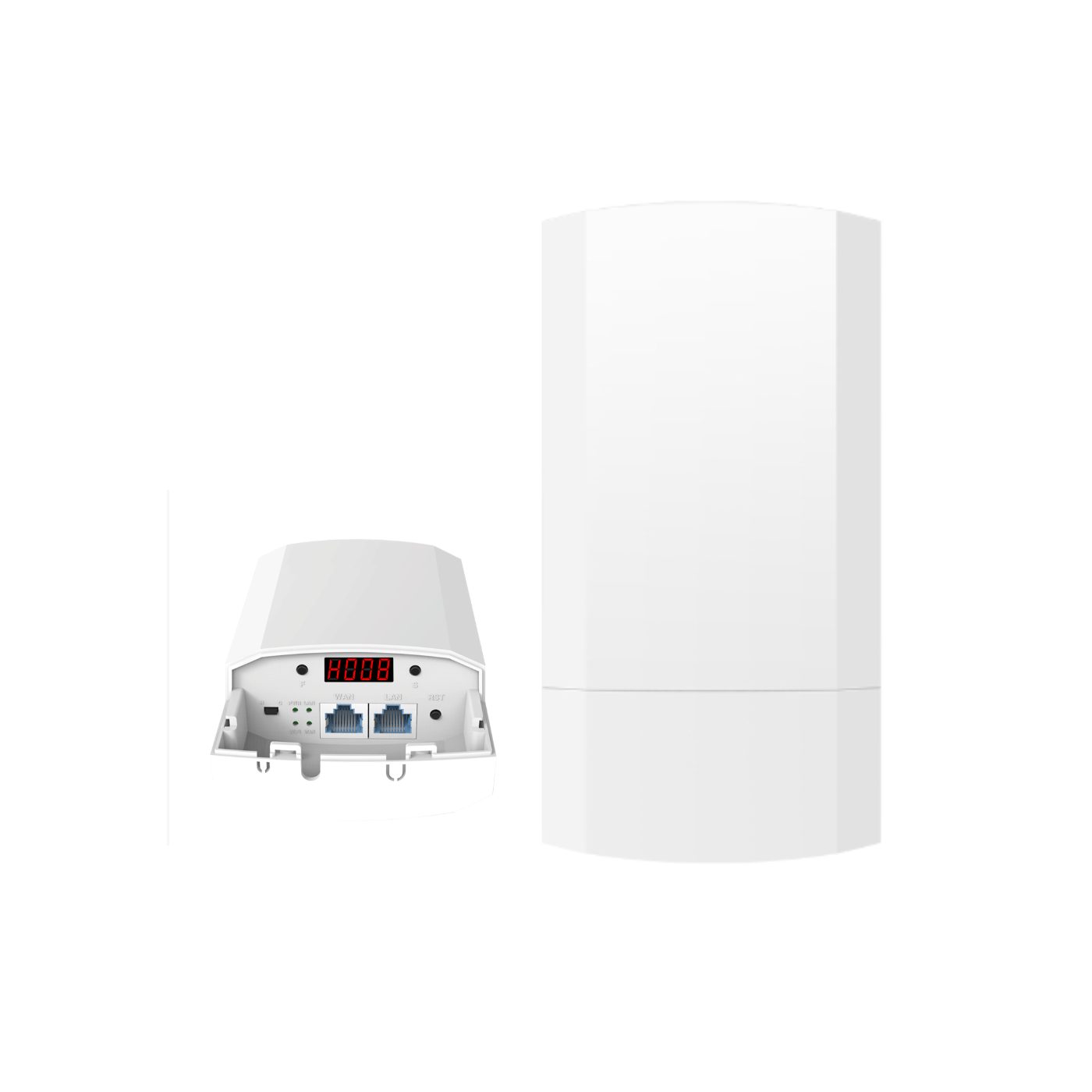

The CPE120 2.4G 1KM PTP PTMP Wireless Bridge is a networking device designed for Point-to-Point (PTP) and Point-to-Multipoint (PTMP) wireless communication over a distance of up to 1 kilometer (1KM) using the 2.4GHz frequency band.

PTP & PTMP Support: Can be used for direct Point-to-Point (PTP) communication between two locations

Key Features

• • 2.4GHz Frequency Band: Operates on the 2.4GHz spectrum, offering a balance between range and interference resistance.
  • 1KM Transmission Distance: Capable of maintaining a stable wireless connection up to 1 kilometer in ideal conditions.
  • PTP & PTMP Support: Can be used for direct Point-to-Point (PTP) communication between two locations or Point-to-Multipoint (PTMP) to connect multiple devices to a single access point.
  • High-Gain Antennas: Equipped with directional or omnidirectional antennas for improved signal strength and range.
  • Weatherproof Design: Built with an IP65 rating for outdoor deployment.
  • Easy Configuration: Supports plug-and-play setup with web-based or app-based management.
  • Low Latency: Ensures smooth data transmission, making it suitable for video surveillance, remote monitoring, and internet sharing.

Common Applications

• • Rural or remote internet connectivity
  • CCTV surveillance transmission
  • Warehouse and campus network expansion
  • IoT and smart city applications
  • Outdoor Wi-Fi distribution

Device Specification

• • Wireless: 802.11N, 2T2R  300M  MIMO Technology
  • Memory: 64MB RAM
  • Flash: 8MB
  • Interface: 1 * 10/100Mbps RJ45 WAN Port | 1 * 10/100Mbps RJ45 LAN Port | 1 * LED display, show operation mode, channel, signal strength 1 * F(Function) switch button for LED display | 1 * S(Select) button for LED display | 1 * Switch to operate the operation mode (Right is AP       mode, Left is Repeater mode) | 1 * DC Injector | 1 * Reset button, press 15 seconds to revert to default setting, press and hold for 1 second to finish LED display configuration.
  • Antenna: 8dBi Panel Antenna, V: 60o      L: 33o
  • LED Light: PWR(Power), WAN, LAN, Wi-Fi
  • Size: 168mm*88mm*57.6mm
  • Power: POE 24V/0.5A
  • Waterproof Level: IP65
  • ESD Protection Standard: ±6KV
  • Surge Protection Standard: ±2KV
  • RF Data: 802.11b/g/n | 2.4GHz to 2.484GHz
  • Modulation: OFDM = BPSK,QPSK, 16-QAM, 64-QAM DSSS = DBPSK, DQPSK, CCK.
  • Data Rate: 300Mbps
  • RF Power:
  • 802.11b: 11M | 18±2dBm | 1M | 21±2dBm
  • 802.11g: 54M | 17±2dBm | 6M | 20±2dBm
  • Receive Sensitivity:
  • 802.11b:11M | -85dBm | 1M | -94dBm
  • 802.11g: 54M | -72dBm | 6M | -88dBm
  • PPM: ±20ppm

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 1 kit of CPE120 Wireless bridge [2-Radios]
  • Mounting Kit
  • Power supply
  • Installation Screws
  • Installation instructions

Manufacturer Warranty

• • 1 Year System & Harware Limited Warranty
