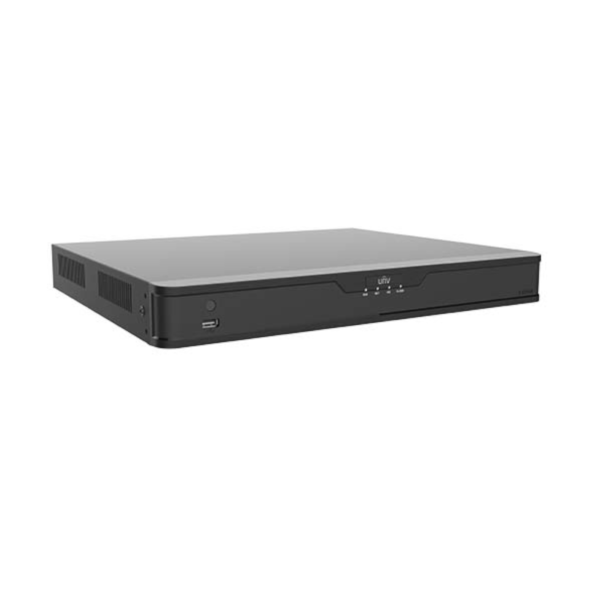

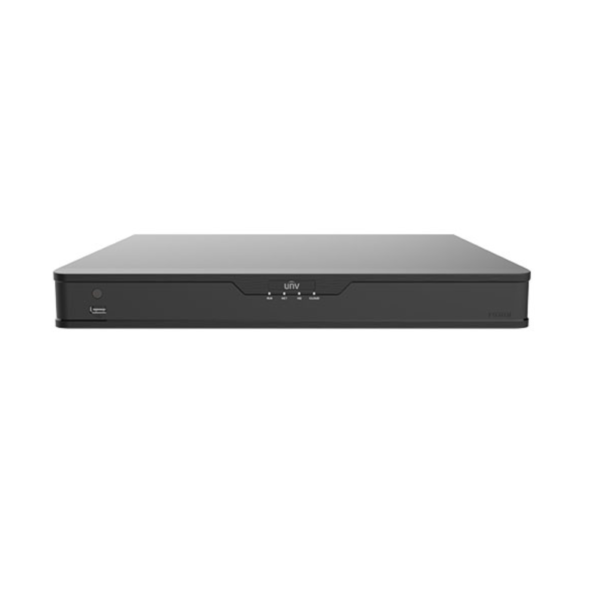

Uniview XVR302-16Q3 16 Channel DVR System

Uniview XVR302-16Q3 16 Channel DVR System | 4K Monitoring, Dual-display Outputs, and Smart analytics

The Uniview XVR302-16Q3 16 Channel DVR System is an 8MP security recording device that supports multiple video formats and high-resolution surveillance. Delivers versatile hybrid surveillance, 4K output, smart analytics, and ample storage at a competitive price.

Supports AHD, TVI, CVI, CVBS: Iutputs 16‑channels BNC | 8‑channels IP | 24‑channels Max.

It’s an excellent choice for those expanding or upgrading surveillance systems while retaining analog cameras. Ideal for medium to large surveillance setups integrating both old and new cameras, those transitioning to IP with existing analog infrastructure, applications needing 4K monitoring, dual-display outputs, and smart analytics without extra licenses and users requiring up to 16 TB of local storage and coax audio support.

Key Features

• • 16 analog BNC video inputs + up to 8 IP channels (max 24 channels total) – Combines traditional analog with modern IP surveillance
  • Supports H.265 & H.264 codecs – Efficient compression that improves storage and bandwidth usage
  • Multi-format compatibility – Works with TVI, AHD, CVI, CVBS, and ONVIF / RTSP IP cameras
  • Audio over coax – Supports audio transmission on TVI camera lines for two-way audio
  • 4K output capability – HDMI and VGA ports both support up to 4K UHD video (3840×2160) and can function simultaneously
  • Strong recording resolution options: Analog cameras: 8 MP @ 15 fps, 5 MP @ 20‑25 fps, 4 MP / 1080p / 720p at 30 fps | IP cameras: 8 MP @ 30 fps for up to 2 channels, 4 MP @ 30 fps for up to 4 channels, 1080p or 720p on more channels
  • Smart analytics built-in: Analog: intrusion, cross-line, region entry/exit (SIP), ultra motion detection (UMD) | IP camera: face detection, defocus, scene change, object detection, auto-tracking | VCA searches: face & behavior | Support mainstream cameras of ONVIF and RTSP protocol
  • Storage: Dual SATA bays, each supporting up to 8 TB (16 TB total)
  • Networking & remote access: 1 GbE port, 80 Mbps inbound /160 Mbps outbound, supports 128 remote users, DDNS, HTTP/S, P2P
  • Alarms & IO: 4 × alarm-in, 1 × alarm-out, RS‑485, USB 3.0 (rear) & USB 2.0 (front)
  • Power & environment: 12 V/3 A input; operates from 14–131 °F; consumes ≤ 12 W (without drives)

System Specification

• • IP Video Input: 8‑ch
  • Analog Video Input: 16‑ch, BNC
  • Max IP Video Input: 24‑ch
  • Supported Analog Camera Types:  AHD input = 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps. | TVI input = 8MP@15fps, 3K@20fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps. | CVI/CVBS input = 8MP@15fps, 5MP@25fps, 4MP@30fps, 1080P@30fps, 720P@30fps.  RCA Audio Input: 1‑ch
  • Video/Audio Output:  HDMI Output =  4K(3840×2160)/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz. | VGA Output = 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz.
  • BNC Video Output: 1‑ch
  • RCA Audio Output: 1‑ch
  • Live View Display: HDMI/VGA: 1/4/6/8/9/25
  • Recording Resolution: 8MP Lite/5MP Lite/4MP Lite /1080P/720P/D1
  • Recording Frame Rate: Main stream: 8MP Lite@8fps  Sub stream: D1@8fps | Main stream: 3K Lite@12fps  Sub stream: D1@12fps | Main stream: 5MP Lite@12fps  Sub stream: D1@12fps | Main stream: 4MP Lite@15fps  Sub stream: D1@15fps | Main stream: 1080P@15fps  Sub stream: D1@12fps | Main stream: 720P@30fps Sub stream: D1@12fps
  • Audio Sample Rate: 8KHz,16 bit per channel
  • Audio Bit Rate: 64Kbps per channel
  • Decoding Capability: Analog: = 16 x 8MP Lite@8, 16 x 3K Lite@12, 16 x 5MP Lite@12, 16 x 4MP Lite@15, 16 x 1080P@15, 16 x 720@30 | IP = 24 x D1@30, 16 x 720P@30, 8 x 1080P@30
  • Two-way Audio: Description: Two-way Audio = 1‑ch | RCA(Using the audio input and output)
  • Analog Snapshot: FTP/Schedule/Event Snapshot              Schedule/FTP/Event snapshot:16‑ch snapshot, up to 704*576 resolution
  • Network: Incoming Bandwidth = 80Mbps (Up to 112Mbps after all analog channel conversion) | Outgoing Bandwidth = 160Mbps
  • Remote Users: 128
  • Protocols: TCP/IP;P2P;UPnP;DHCP;HTTP;HTTPS;DNS;DDNS;SMTP;NTP
  • Browser: Windows: IE(IE10/11) | Firefox (version 52.0 and above) | Chrome(version 45 and above | Edge(version 79 and above).
  • Smart Description: Analog Smart by XVR               SIP(Intrusion Detection | Cross Line Detection | Enter Area/Leave Area | Ultra Motion Detection(UMD).
  • VCA Search: Face Search; Behavior Search
  • Alarm:  Alert Alarm = IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
  • Hard Disk: SATA = 2 SATA interfaces
  • Capacity: Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature)
  • External Interface: Network Interface = 1 RJ45 10M/100M/1000M self adaptive | Ethernet Interface | USB: Rear panel = 1 x USB3.0, Front panel: 1 x USB2.0 | RS485 = 1
  • Alarm In: 4‑ch
  • Alarm Out: 1‑ch
  • Power Supply: DC 12V/3A
  • Working Temperature: ‑10°C ~ + 55°C ( +14°F ~ +131°F )
  • Working Humidity: ≤ 90% RH(no condensing)
  • Power Consumption: (without HDD) ≤ 12W
  • Dimensions: 15.0″ × 12.8″×2.1”

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 1 XVR302-16Q3 XVR System
  • 3-tb Hard drive
  • 1 SATA cables
  • Mounting screws
  • Manual & installation instructions

Manufacturer Warranty

• • 2 Year System & Harware Limited Warranty
