4G LTE Mobile Network Wireless Router

4G LTE Mobile Network Wireless Router

The LTE-320 4G LTE Mobile Network Wireless Router is a device that provides internet connectivity using a 4G LTE cellular network. It acts as a Wi-Fi hotspot, allowing multiple devices to connect wirelessly to the internet.

Wi-Fi Hotspot: Supports multiple device connections via Wi-Fi (e.g., smartphones, tablets, laptops, smart home devices).

Device has built-in electrostatic protection and anti-surge components that allows seamless operation with zero crashes.

Key Features

• • 4G LTE Connectivity: Uses a SIM card to access mobile data networks, providing internet access where wired broadband is unavailable.
  • Wi-Fi Hotspot: Supports multiple device connections via Wi-Fi (e.g., smartphones, tablets, laptops, smart home devices).
  • Ethernet Ports: Include LAN/WAN ports for wired connections.
  • Dual-Band Wi-Fi: Support 2.4GHz Wi-Fi for better performance and reduced interference.
  • External Antenna Support: Omnidirectional antennas to improve signal strength and coverage.
  • Power: Supports 24V POE and DC12V power supply modes.
  • Security Features: WPA/WPA2 encryption, firewall protection, and VPN support for secure browsing.
  • Plug-and-Play Setup: Easy to set up with minimal configuration via a web interface or mobile app.

Common Use Cases

• • Remote Areas: Ideal for locations without fixed broadband access.
  • Travel: Provides internet access on the go for business trips, vacations, and vehicles.
  • Backup Internet: Serves as a failover connection in case of primary internet failure.
  • Temporary Offices & Events: Useful for temporary setups where wired internet isn’t practical.

Device Specification

• • Flash: 8MB
  • DDR: 64MB
  • Frequency: 2.4GHz – 2.484GHz
  • 2.4G WIFI Protocol: 802.11b / g / n
  • Data Rate: 300Mbps
  • 4G Antenna Gain: 3dbi
  • 2.4G WIFI antenna Gain: 2dbi
  • SSID Hidden: Supported
  • Maxi end users access: 30+
  • TX power: < 22 dBm
  • WAN: 1 * 10/100M RJ45 WAN port support PoE
  • LAN: 1 * 10/100M RJ45 LAN port

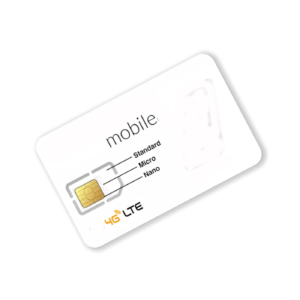

  • SIM Card: 1 * 4G SIM card slot
  • Water-Proof Level: IP65
  • DC: 12V   1A
  • POE: 24V   0.5A
  • Reset: Reset × 1（Press for 10 seconds to revert to factory settings）
  • LED indicator: POWER , WAN ,LAN,WLAN, Signal strength * 4
  • Power consumption: < 11W
  • Size: 230mm * 75 mm * 40 mm
  • Working Environment: Working temperature: -30°C to 55°C
  • Limited working temperature: -40°C to 70°C
  • Storage Temperature: -40°C to 70°C
  • Humidity：5％～95％（No-considering）
  • LTE Module Model: Quectel EC25-AU, LTE-CAT4
  • Band Support: GSM: B2/3/5/8 | WCDMA: B1/2/5/8 | LTE FDD: B1/2/3/4/5/7/8/28 | LTE TDD: B40 | LTE Data Rate | LTE-FDD: max 150(DL)/Max 50(UL) | LTE-TDD: max 130(DL)/Max 35(UL)
  • Wi-Fi Support: Auto Channel, Guest SSID, SSID hide, Wireless MAC filter, white and black list
  • Net: PPPoE, Automatic IP, Static IP, L2TP, PPTP, 4G Support automatically switch between WAN/ISP and 4G Support VPN server and VPN client: PPTP, L2TP and Open VPN, Support AP + Client
  • Firewall: Support NAT, URL Filter, MAC Filter and Network Service Filter, Support DoS attack protection, SYN flood attack, WAN PING,SSH, HTTP Access, NTP and account setup, Port forwarding, Virtual Server, Watchdog, DMZ and DDNS.

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 1 kit of HT320 Wireless router

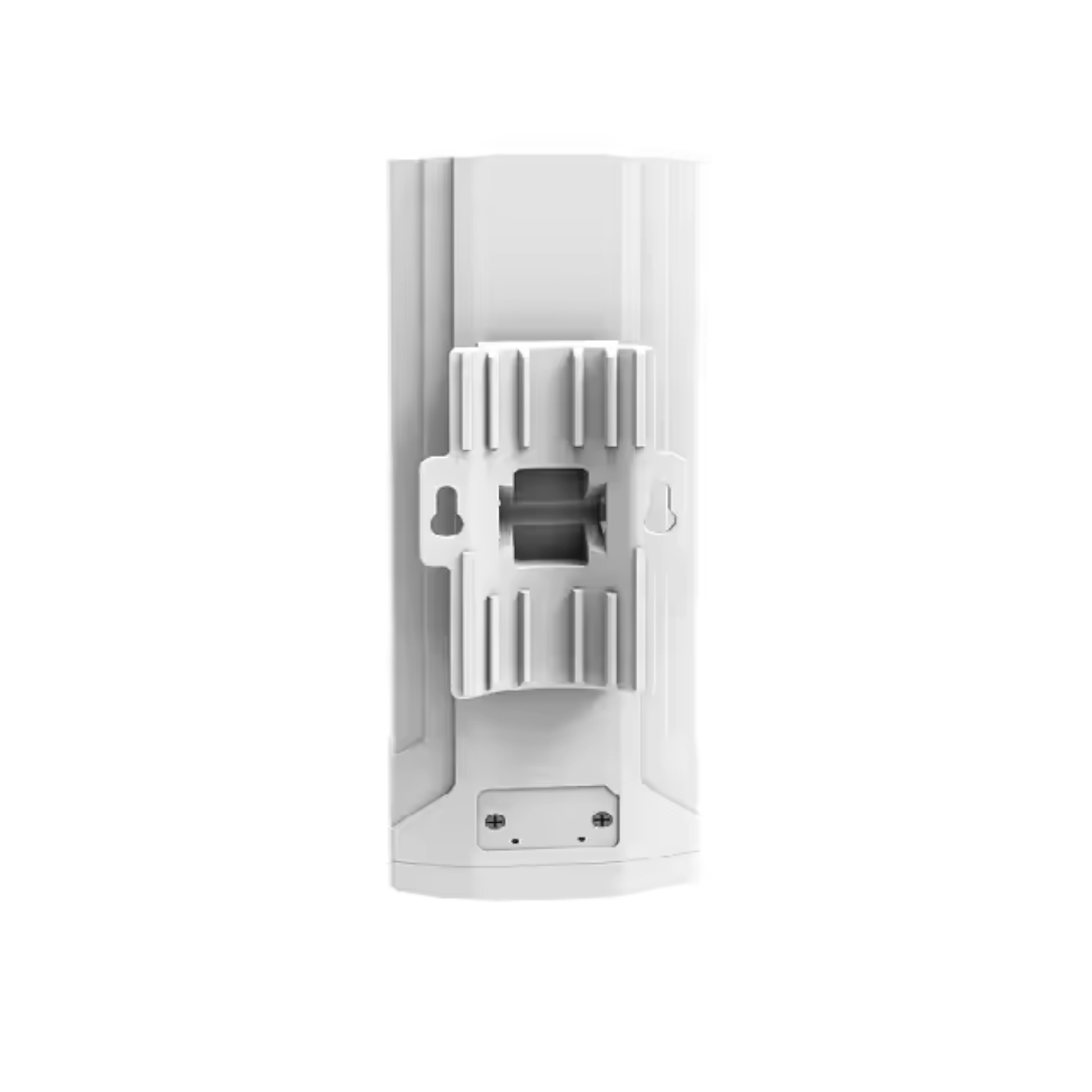

  • Mounting Kit
  • Power supply
  • Installation Screws
  • Installation instructions

Manufacturer Warranty

• • 1 Year System & Harware Limited Warranty
