Customer Service Window Intercom – Professional 2-Way Full Duplex Hands-Free Communication System
The ZDL-380E Customer Service Window Intercom is built for seamless communication in environments where staff and customers are separated by glass, acrylic, or security barriers. Perfect for banks, pharmacies, ticket booths, government offices, and customer service counters, this system ensures crystal-clear communication with true full-duplex, hands-free operation, allowing both sides to speak and listen at the same time—no push-to-talk buttons required.
The master operator station features a compact aluminum alloy and durable rigid plastic housing, a 3-watt built-in speaker, and a high-gain low-noise microphone for professional-grade audio clarity. Its 18-inch flexible gooseneck microphone provides superior positioning and voice pickup for the operator.
True Full-Duplex Hands-Free Communication – Natural, uninterrupted conversations without push-to-talk
On the customer side, the 2.5-inch compact speaker with built-in microphone delivers clear audio while maintaining a minimal footprint on the counter. Both master and customer stations feature independent volume controls, allowing operators to fine-tune microphone and speaker levels for optimal clarity in quiet or noisy environments.
Installation is effortless—no drilling or permanent setup required. The customer sub-station connects to the master station with the included 6-foot audio cable, and the master station supplies both power and audio, eliminating the need for extra wiring or power sources.
For recording or compliance, the master station includes an auxiliary audio output for easy connection to an external recorder. Built with rugged materials to withstand heavy daily use, this plug-and-play solution is designed for fast deployment and reliable performance.
Key Features
-
- True Full-Duplex Hands-Free Communication – Natural, uninterrupted conversations without push-to-talk.

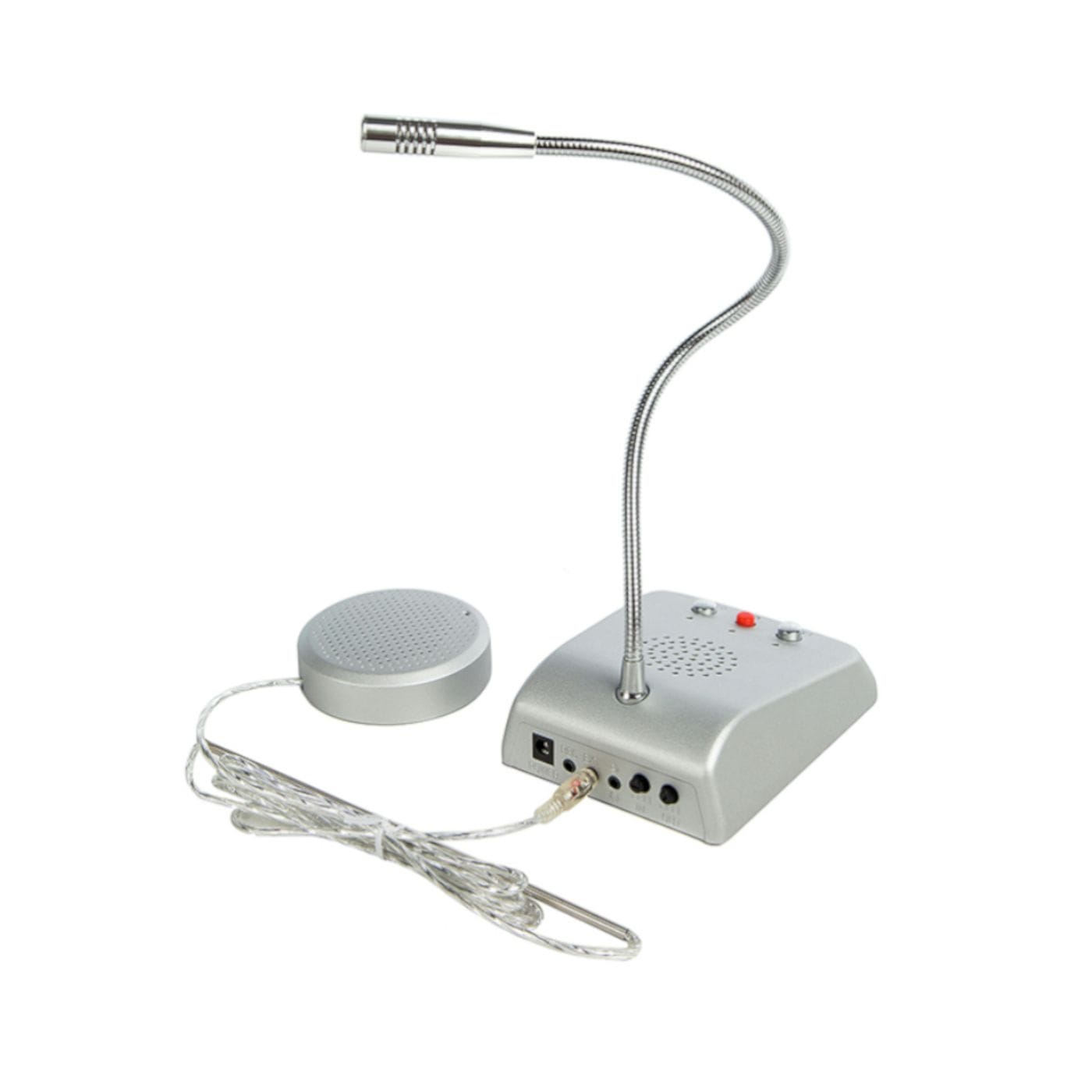

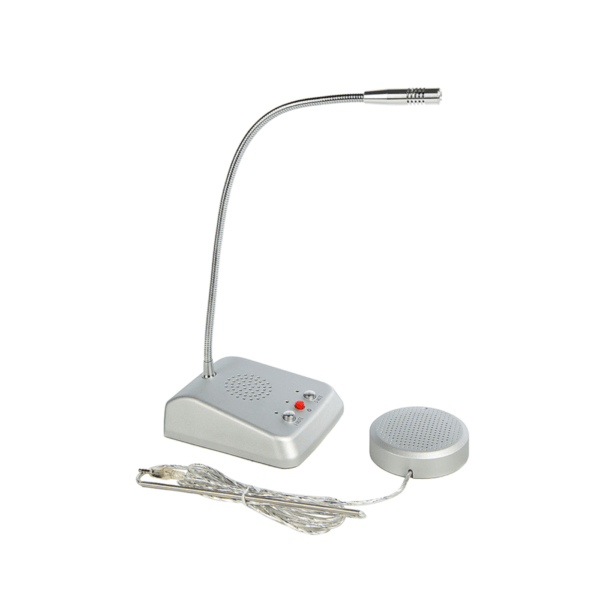

- Operator Master Station – Compact design with 3W built-in speaker, high-gain microphone, and 18″ gooseneck mic.
- Customer Sub-Station – Slim 2.5-inch speaker with integrated microphone saves counter space.

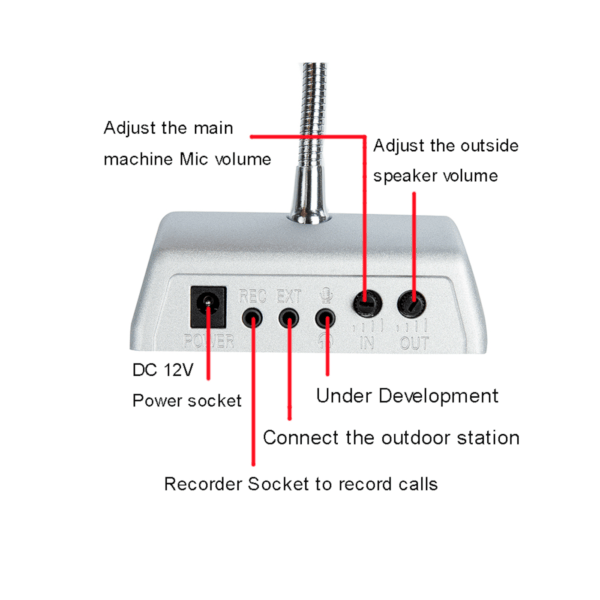

- Dual Volume Controls – Independent adjustments for both master and customer microphones and speakers.
- Plug-and-Play Setup – No installation required; sets up in minutes with a 6-foot audio cable.
- Built-In Power Distribution – Master station supplies both audio and power to the sub-station.
- Auxiliary Recording Output – Connects to external recorders for logging or monitoring.
- Durable Build – Master station made of aluminum alloy + rigid plastic, sub-station made of rugged plastic.
- Universal Power Supply – Operates on included 12V 1A power adapter compatible worldwide.
Device Specification
-
- Master Station Dimensions: H 1.0″ × W 5.0″ × L 4.5″
- Sub-Station Dimensions: H 2.5″ × W 2.5″ × T 0.7″
- Master Speaker Power: 3 Watts
- Microphones: High-gain low-noise mic + 18″ flexible gooseneck
- Customer Sub-Speaker Diameter: 2.5″ with integrated microphone
- Cable Length: 6 feet (audio jack connector)
- Power Supply: 12V DC, 1A (worldwide compatible)
- Recording Output: Auxiliary audio out to external recorder
- Materials:
- Master station – Aluminum alloy + rugged plastic
- Sub-station – Rugged plastic
Got Application Customization Questions?
-
- Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
- Email our Sales Department to get an answer within 24-hours
- Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation
What’s Included In The Package
-
- 1 ZDL-380E Master Station
- 1 ZDL-380E Sub Station with 6-feet 3.5mm audio jack cable
- 3M mounting kit
- 1 AC100 ~ 240V 12VDC 500mA Power supply
- 1 User operating manual
Manufacturer Warranty
-
- 1-Year Equipment Replacement
