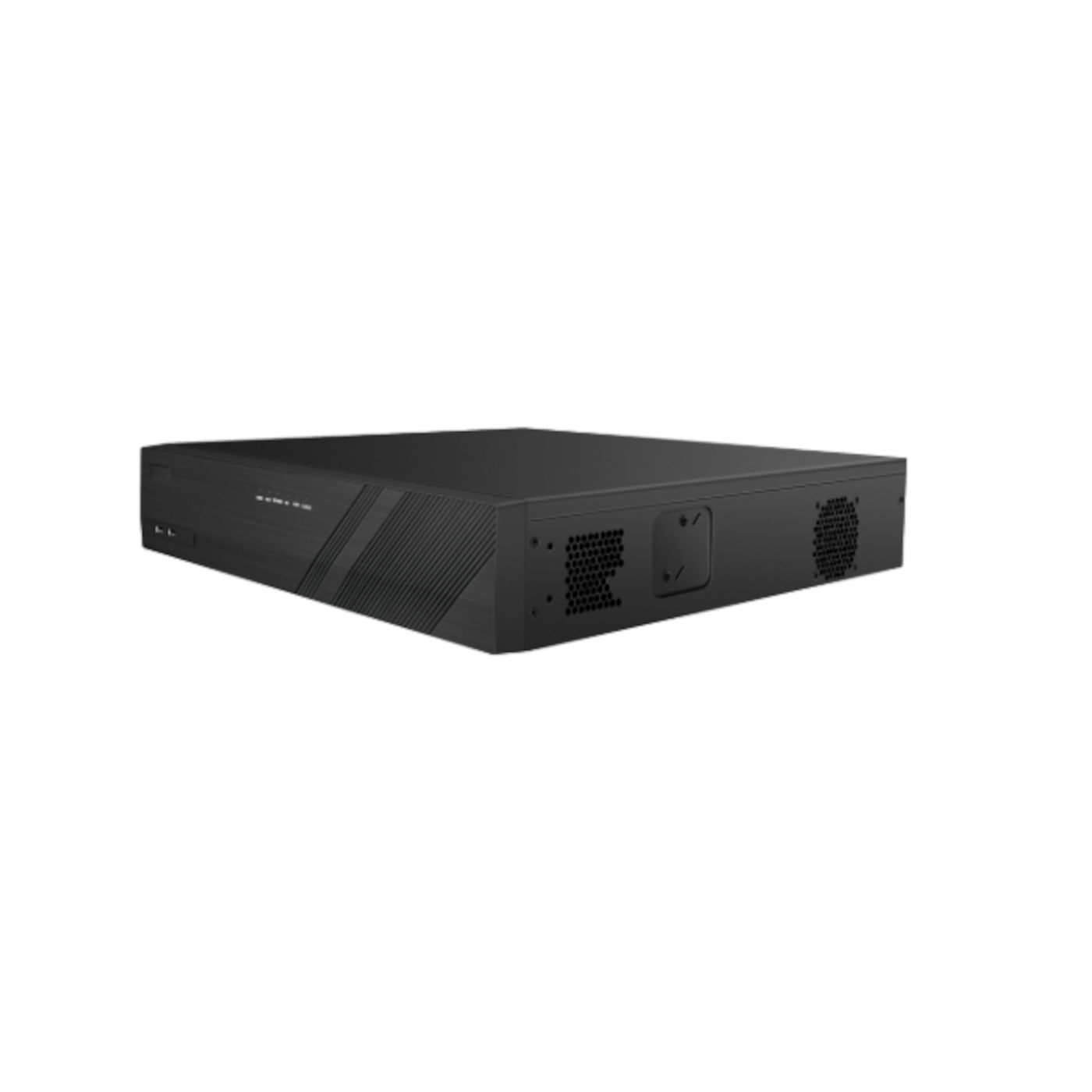

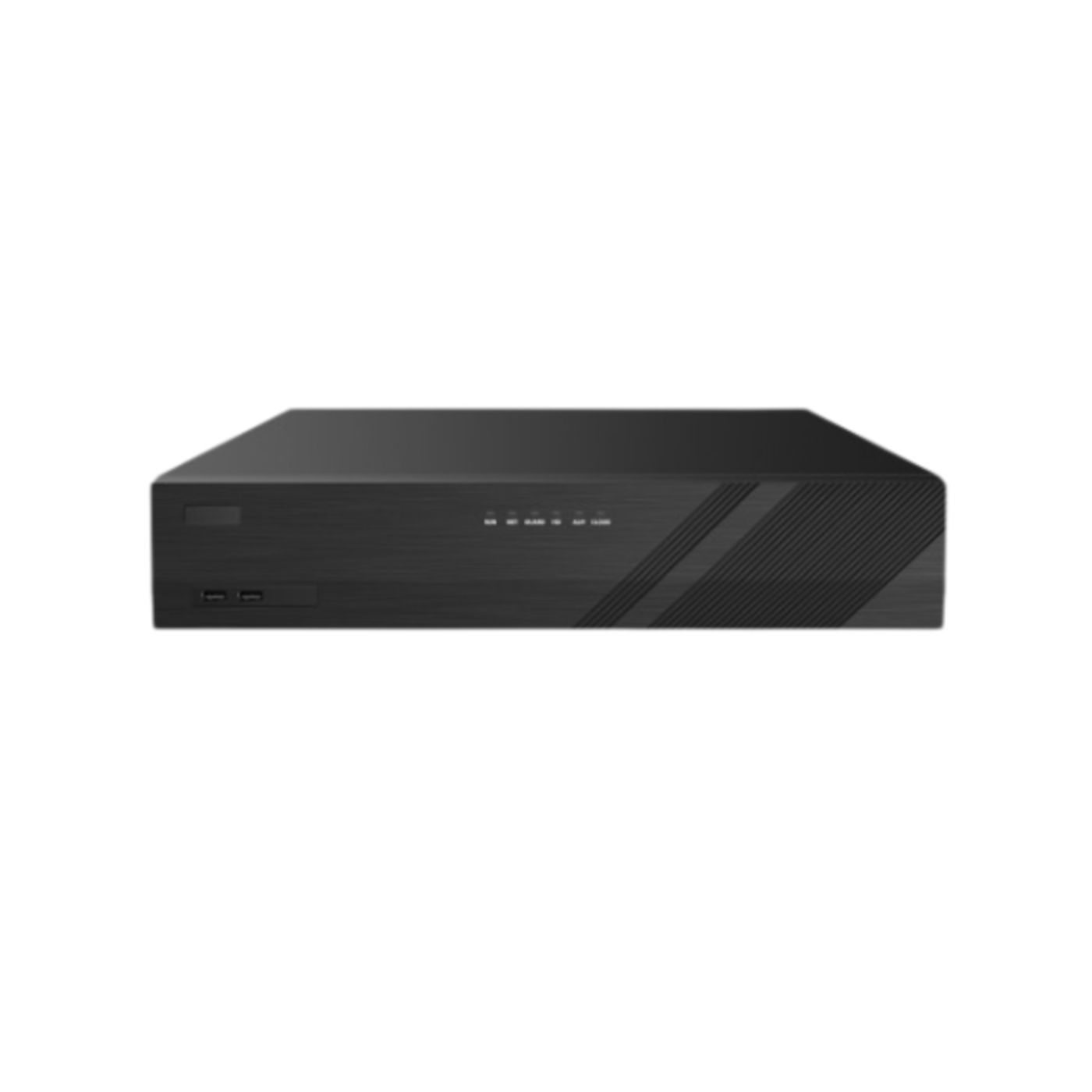

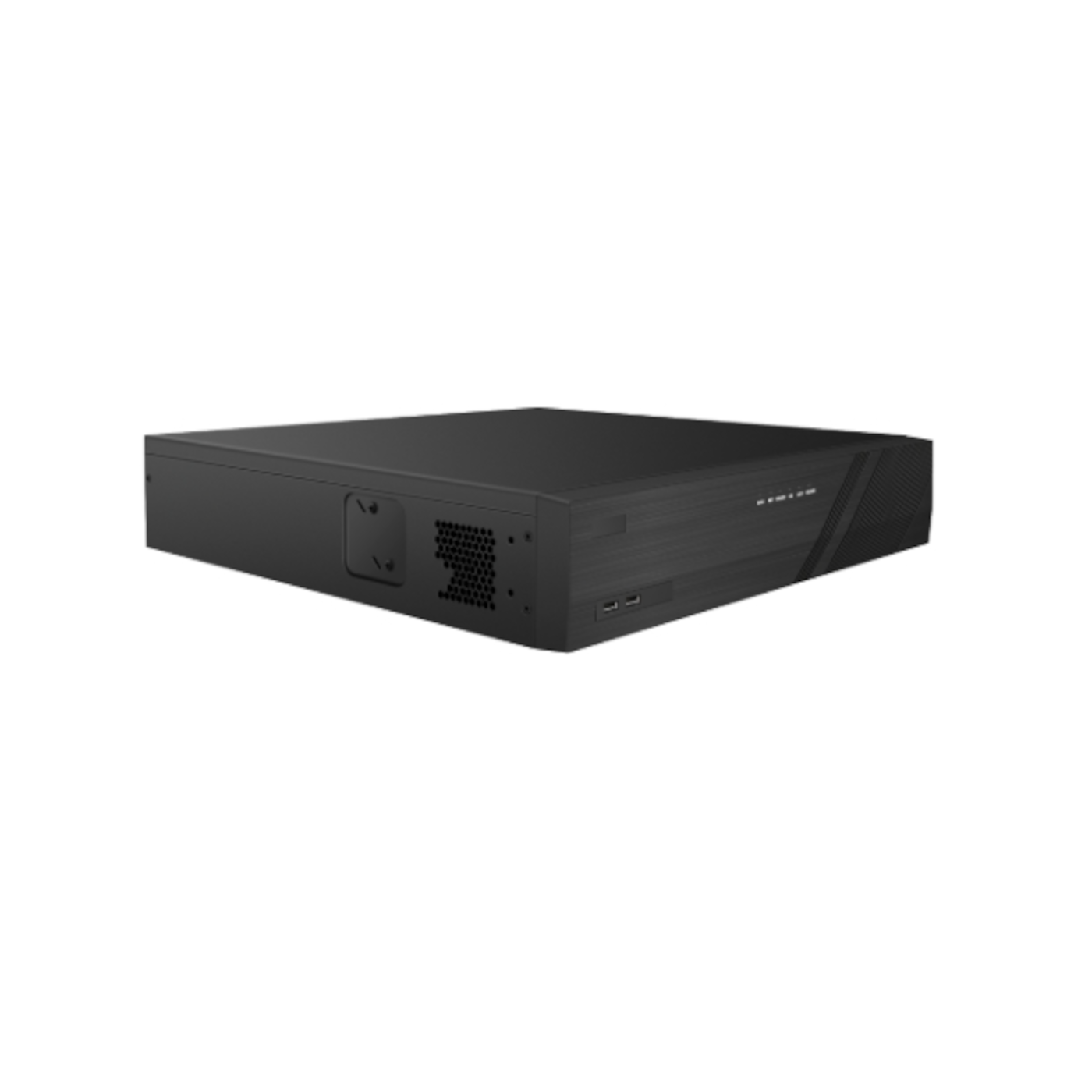

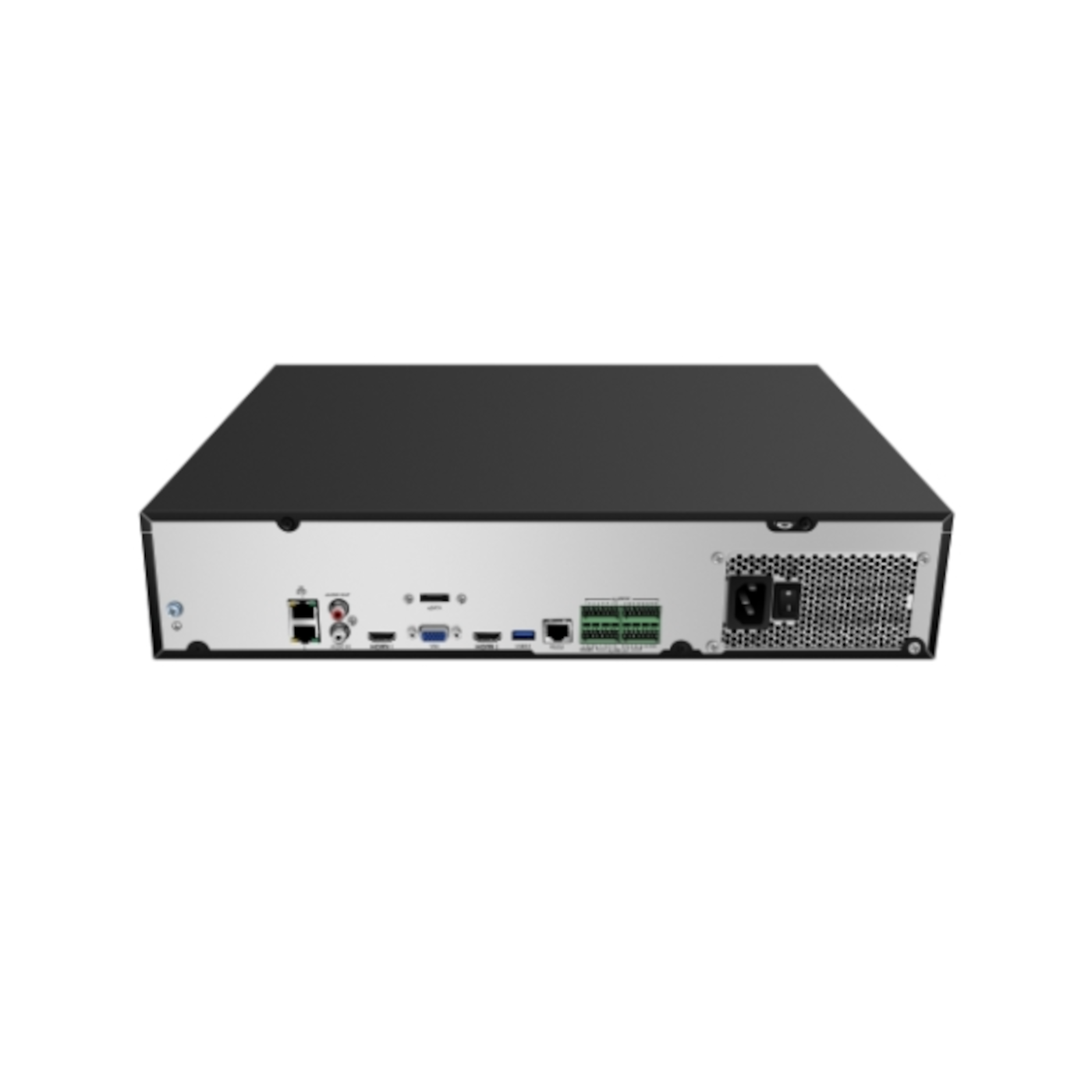

64-Channel 12MP H.265/H.264 Professional Network Video Recorder (NVR) with RAID Storage & 4K HDMI Output

Enterprise 64-Channel IP Camera NVR System with 12MP Recording, RAID Storage, and Dual 4K HDMI Outputs

The NVR3864-V2 64-Channel H.265/H.264 Network Video Recorder (NVR) System is a powerful enterprise-grade surveillance solution designed for large-scale security installations such as commercial buildings, campuses, factories, hospitals, hotels, and transportation hubs. Supporting up to 64 IP camera inputs with recording resolutions up to 12 Megapixels, this NVR provides exceptional video clarity, storage reliability, and intelligent analytics

The system supports H.265, Ultra H.265, and H.264 compression technologies, significantly reducing storage requirements while maintaining high-quality video recordings. Compatible with ONVIF (Profile S, G, and T) and RTSP protocols, it seamlessly integrates with a wide range of mainstream IP cameras.

For advanced video display, the NVR provides dual HDMI outputs and one VGA output, all operating independently. Both HDMI outputs support 4K resolution (3840×2160), enabling crystal-clear video monitoring on multiple displays simultaneously.

Ideal for Enterprise surveillance systems – Airports and transportation hubs – Hospitals and universities – Hotels and resorts – Industrial facilities – City surveillance systems

Built for reliability and high storage capacity, the system supports up to eight SATA hard drives (up to 12TB each) with RAID 0, 1, 5, 6, and 10 configurations, ensuring both redundancy and high-performance storage. Additional ANR (Automatic Network Replenishment) technology safeguards video recordings by storing data locally on cameras during network interruptions and synchronizing once connectivity is restored.

This enterprise NVR also features advanced video analytics, including intrusion detection, line crossing detection, people counting, vehicle detection, object left/removed alerts, temperature and fire detection, and traffic monitoring. These intelligent features help organizations enhance situational awareness and security management.

With 384 Mbps incoming and outgoing bandwidth, support for 128 simultaneous remote users, and robust network protocols, the system delivers smooth remote access and centralized monitoring across large security deployments.

Key Features

• • 64-Channel IP Camera Input
  • Supports Ultra H.265, H.265, and H.264 video compression
  • Up to 12MP recording resolution
  • ONVIF Profile S, G, T and RTSP compatible
  • Dual HDMI + VGA independent video outputs
  • 4K HDMI display support
  • RAID 0 / 1 / 5 / 6 / 10 storage support
  • Up to 8 SATA HDDs (12TB per drive)
  • N+1 Hot Spare redundancy
  • Fisheye camera de-warping for live view and playback
  • ANR technology for reliable video storage during network interruptions
  • Supports intelligent video analytics (VCA)
  • People counting and crowd density monitoring
  • Vehicle and traffic detection
  • Smart intrusion prevention
  • 16-channel synchronous playback
  • Up to 128 remote users simultaneously
  • Dual Gigabit network ports
  • Alarm inputs and outputs for system integration

System Specifications

• • Video

    • Video Compression: Ultra H.265 / H.265 / H.264
    • IP Camera Input: 64 channels
    • Recording Resolution:
      12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / CIF

  • Decoding Capability

    • 2 × 12MP @ 30fps
    • 4 × 4K @ 30fps
    • 8 × 4MP @ 30fps
    • 16 × 1080P @ 30fps
    • 32 × 960P @ 25fps
    • 36 × 720P @ 30fps
    • 64 × D1

  • Video Output

    • HDMI1 / HDMI2: Up to 4K (3840×2160)
    • VGA Output: Up to 1920×1080
    • Independent Outputs: HDMI1 / HDMI2 / VGA

  • Audio

    • Audio Input: 1 channel (RCA)
    • Audio Output: 1 channel (RCA)
    • Compression: G.711A / G.711U

  • Storage

    • SATA Ports: 8
    • Max HDD Capacity: 12TB per drive
    • RAID Support: RAID 0 / 1 / 5 / 6 / 10
    • e-SATA Interface: 1

  • Network

    • Network Interface:
      2 × RJ45 10/100/1000 Mbps Ethernet
    • Incoming Bandwidth: 384 Mbps
    • Outgoing Bandwidth: 384 Mbps
    • Remote Users: Up to 128

  • Supported Protocols

    • TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS

  • Alarm & Interfaces

    • Alarm Inputs: 16
    • Alarm Outputs: 4
    • RS232: 1
    • RS485: 1
    • USB:
      Front: 2 × USB 2.0
      Rear: 1 × USB 3.0

  • Intelligent Features

    • Intrusion Detection
    • Line Crossing Detection
    • Scene Change Detection
    • Object Left / Removed
    • Auto Tracking
    • People Counting
    • Vehicle Detection
    • Temperature & Fire Detection
    • Crowd Density Monitoring
    • Ultra Motion Detection (UMD)

  • Environmental

    • Operating Temperature: -10°C ~ +55°C
    • Humidity: ≤90% RH (non-condensing)

  • Power

    • Power Supply: 100 ~ 240VAC
    • Power Consumption: ≤25W (without HDD)

  • Physical

    • Dimensions: 442 × 426 × 89 mm (17.4 × 16.8 × 3.5 in)
    • Weight: ≤9.7 kg (without HDD)

  • Certifications

    • CE, FCC, UL, RoHS, WEEE

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 1 × NVR3864-V2 NVR System
  • 1 Mount bracket
  • Instruction manual & mounting screws

Manufacturer Warranty

• • 2 Year System & Hardware Limited Warranty
