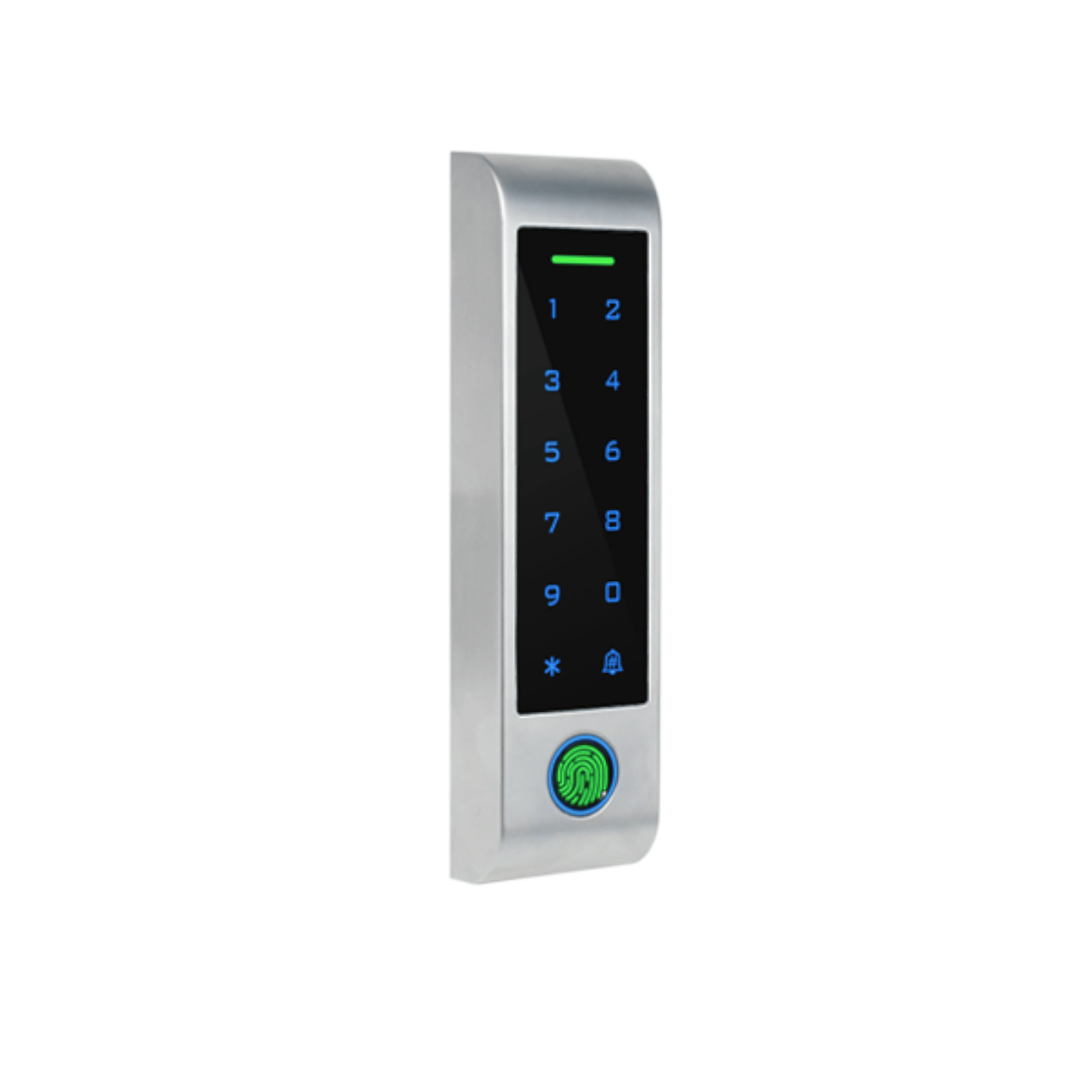

WIFI Fingerprint Access Control System
Thee HF4 WIFI Fingerprint Access Control System is a smart security solution that utilizes fingerprint authentication and wireless connectivity to control access to restricted areas.
Features Fingerprint, Mobile APP, Access Code, Smart Card Operation
It combines biometric recognition with WiFi-enabled communication to enhance security, flexibility, and remote management capabilities.
Key Features
-
-
Biometric Authentication
- Uses fingerprint recognition for secure and reliable access control.
- Can store up to fingerprints for multi-user access.
-

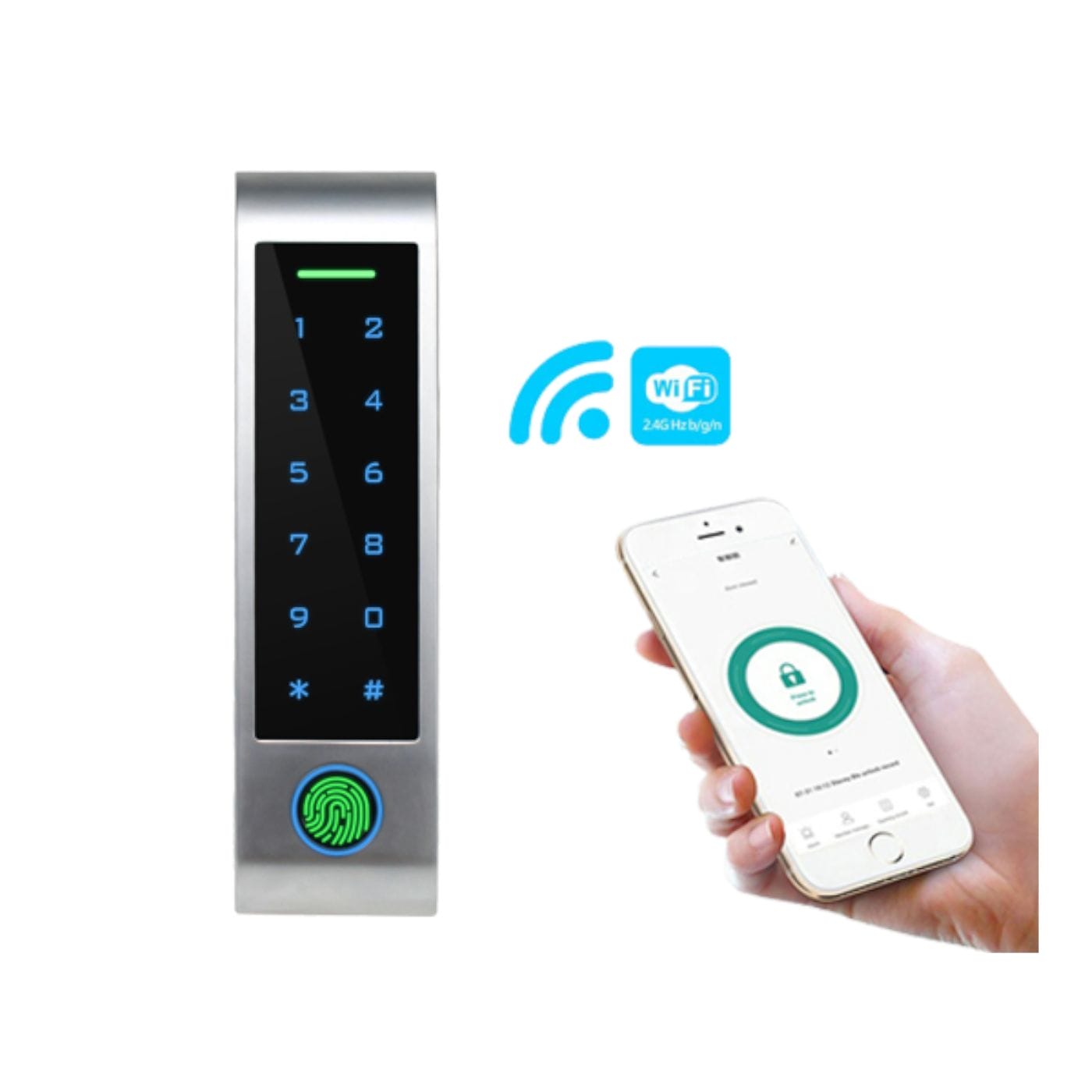

WiFi Connectivity
- Enables remote access control and monitoring via a mobile app.
- Can be integrated with smart home or business security systems.
-
Remote Management & Monitoring:
- Administrators can add or remove users remotely.
- Real-time logs and notifications of access attempts.
-
Multi-Access Methods
- Supports additional access modes like RFID cards, PIN codes, or mobile app unlock.
-
User-Friendly Interface
- Touchscreen, and mobile app-based user management.
- Intuitive setup and configuration via WiFi.
-
Applications
-
- Residential smart locks
- Office and business security systems
- Industrial and warehouse access control
- Educational institutions and research facilities
- Healthcare and medical centers
Device Specification
-
- User Capacity: Fingerprint = 100 | Smart Card = 888 | Access Code = 888 | APP = 10
- Guest Users: 10
- Panic Users: 2
- Access Code Lenght: 4 ~ 6 Digits
- Operating Voltage: 12 ~ 18VDC
- Idle Current: 60mA
- Active Current: 150mA
- Smart Card Support: EM or Milfare-1
- Relay Output: Relay output | Exit button | Alarm | Door contact | Wiegand input/output
- Lock Relay: 1 = NO, NC, COM
- Relay Output Time: 0 ~ 99 seconds
- Relay power Output: 2Amp Max.
- Wiegand Interface: EM Card Version = Wiegand 26 ~ 44 bits input and output \ Milfare Card Version = Wiegand 26 ~ 44 bits, 56-bits, 58-bits input and output | PIN Output = 4-bits, 8-bits [ASCII] 10-digits virtual number.
- Operating Operation: -22 deg fahrenheit to 140 deg fahrenheit
- Operating Humidity: 0%RH ~ 98%RH
- Structure Materials: Zinc alloy
- Size: Height = 5.8 X 1.7 X 0.8 inches
Got Application Customization Questions?
-
- Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
- Email our Sales Department to get an answer within 24-hours
- Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation
Included Items & Accessories
-
- 1 HF4
- 1 – 12VDC 2amp System Power Supply
- 2 Test Key-fobs
- Mounting Accessories
- Instructions & Manuals
Manufacturer Warranty
-
- 1 Year System & Harware Limited Warranty
