S6-X EM+MF Card Single Door Access Control

S6-X Dual-Frequency EM+Mifare Waterproof Single Door Access Controller | 1000 Users | Metal Anti-Vandal IP66 Design

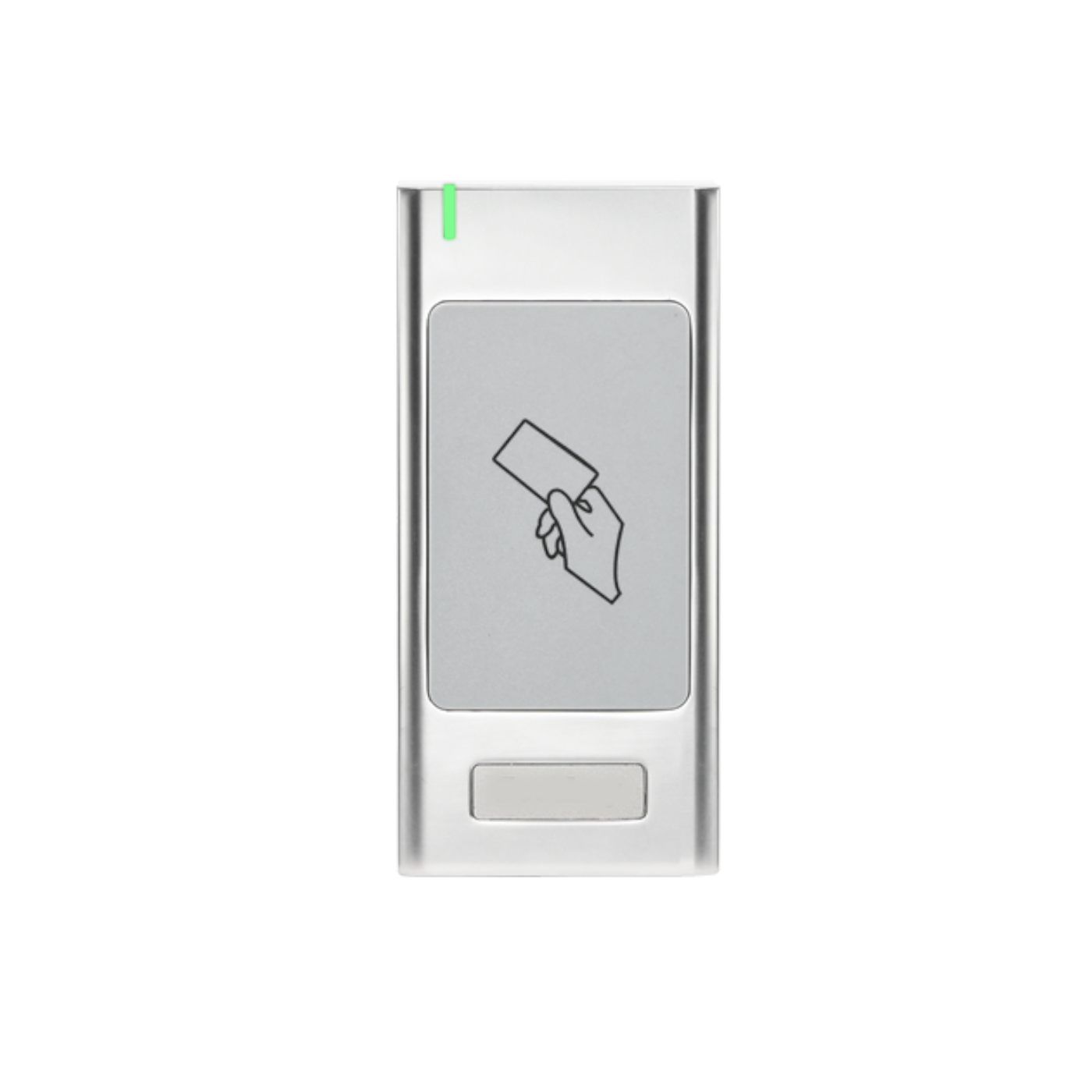

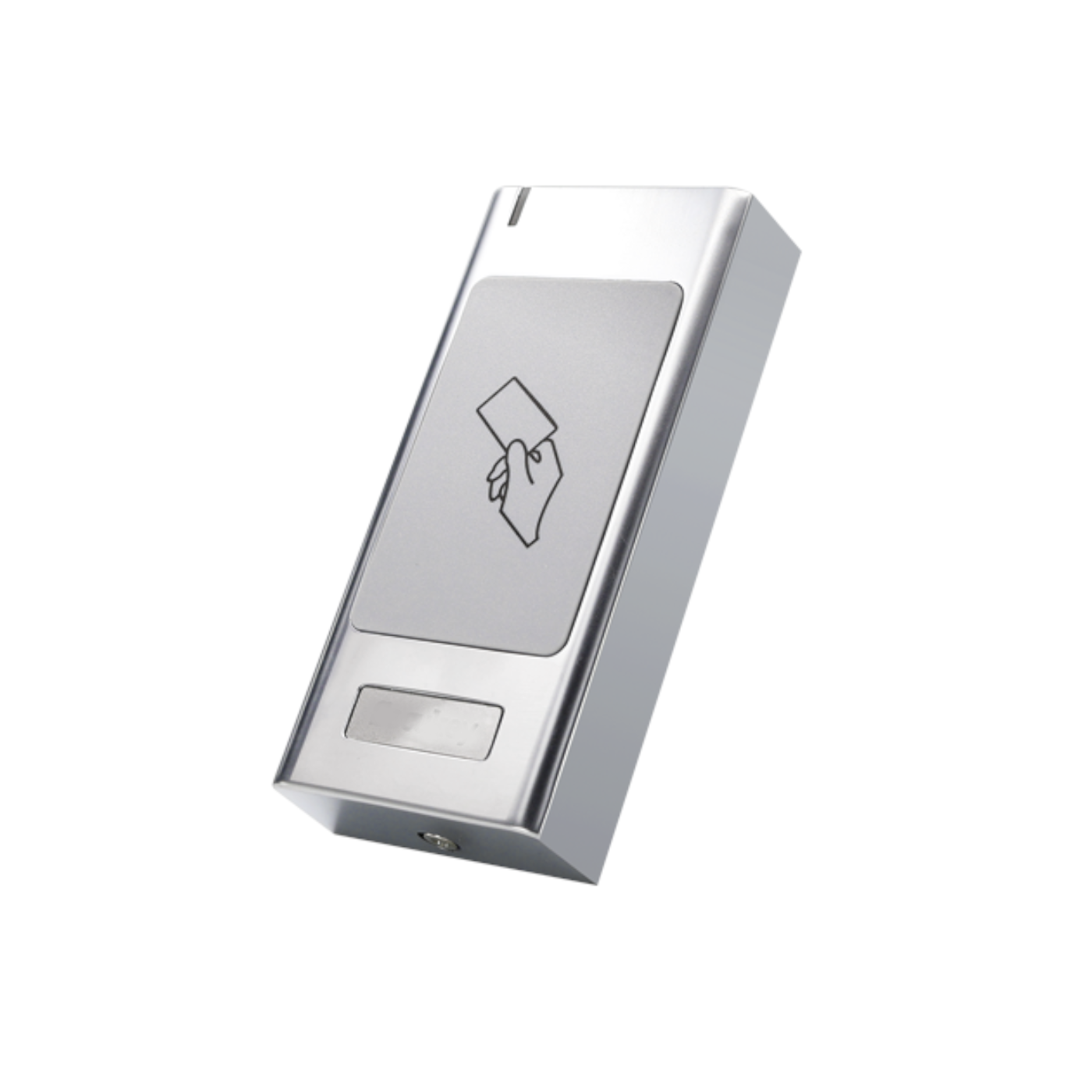

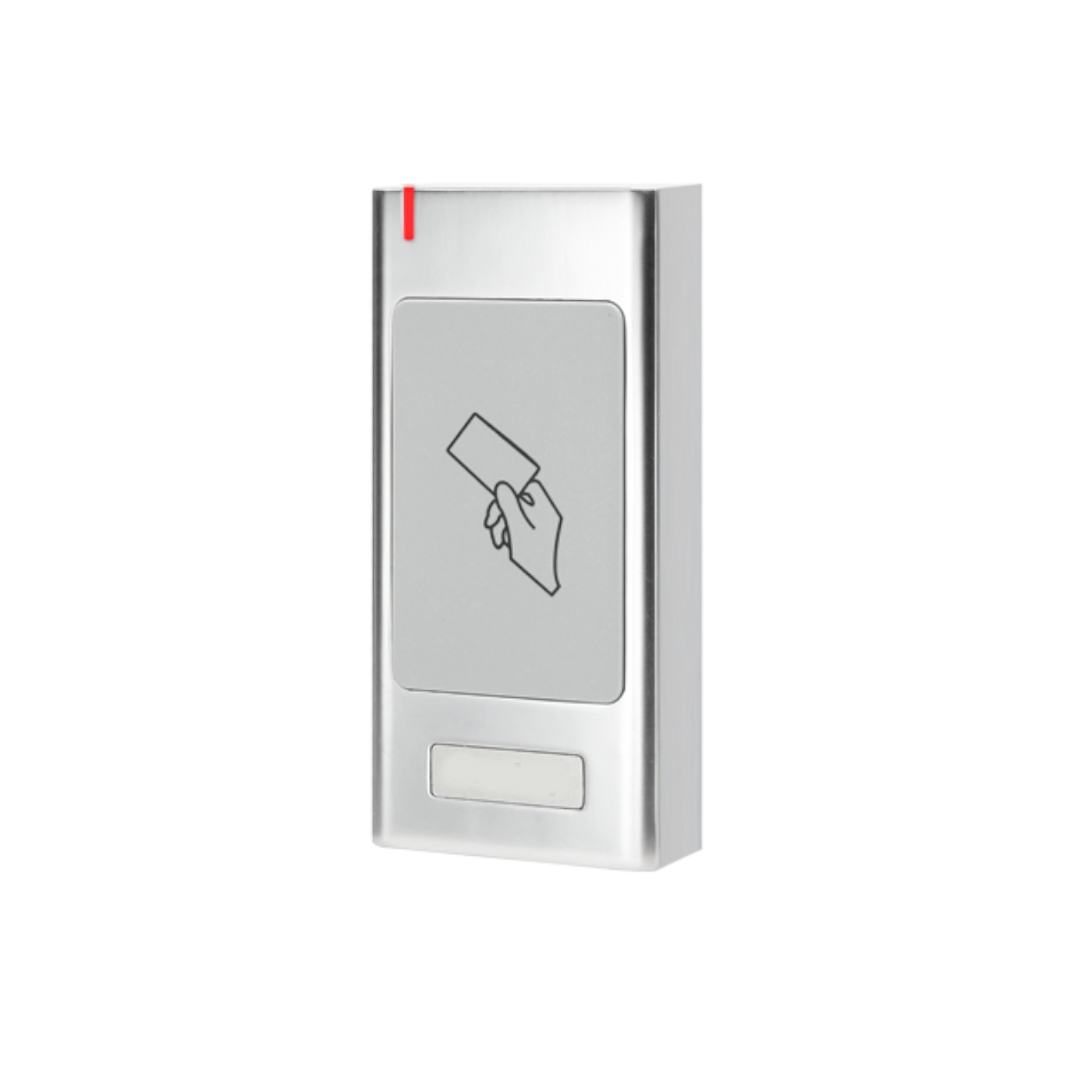

The S6-X EM+MF Single Door Access Controller is a robust, metal-cased access control device designed for standalone or networked security applications. Featuring IP66 waterproof protection and an anti-vandal construction, it ensures reliable performance in both indoor and outdoor environments—perfect for gates, offices, factories, apartments, and industrial facilities.

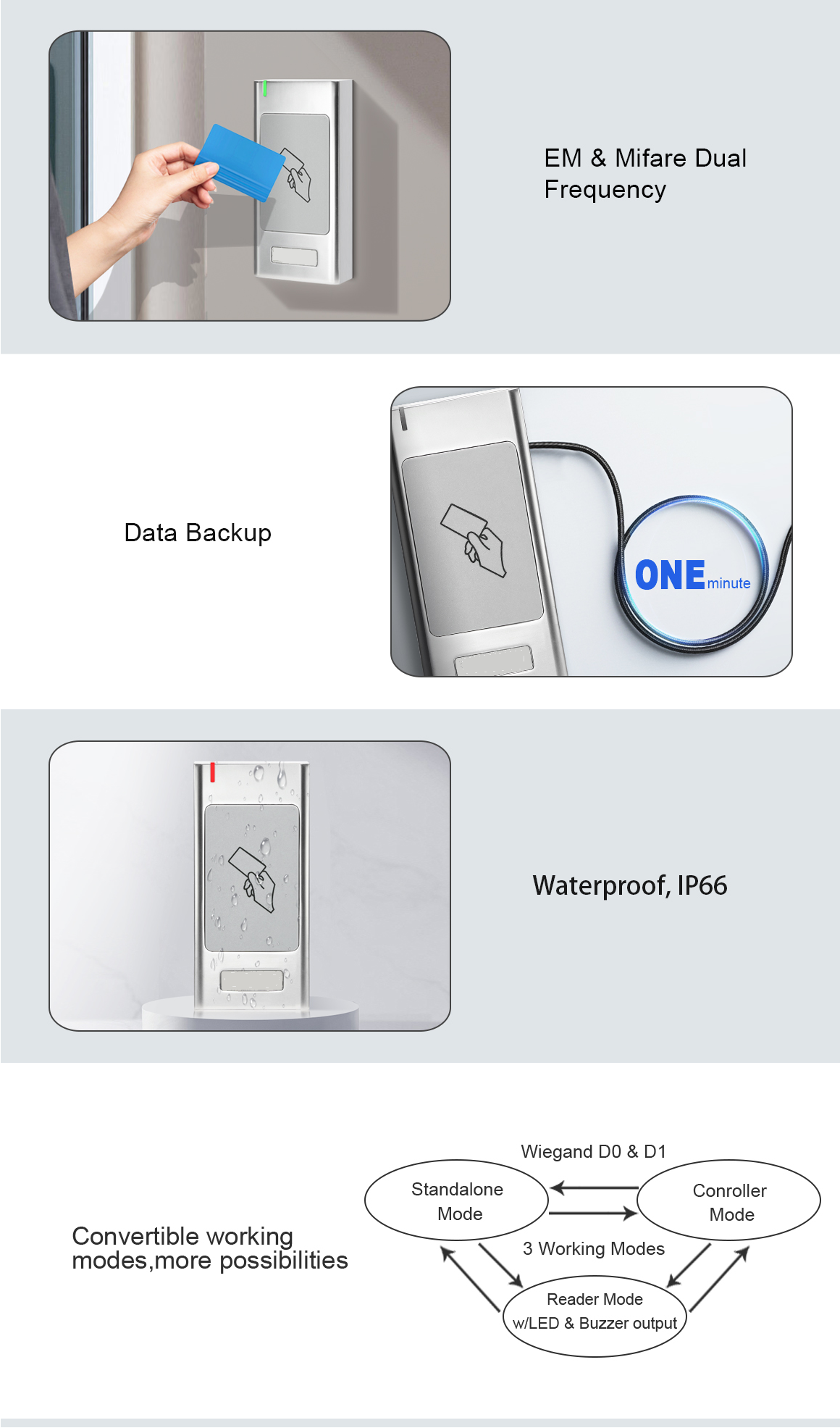

This controller supports dual-frequency card reading for 125 kHz EM and 13.56 MHz Mifare/NXP technologies, compatible with Mifare Plus, DesFire, Pro, UltraLight, Classic 4K, NFC, and CPU cards. With multiple authentication modes—Card, PIN, Card + PIN, and Multi-Card—the S6-X provides flexible access management for varied security levels.

Equipped with Wiegand 26–44, 56, 58-bit input/output, it can operate independently or integrate seamlessly with third-party controllers and access management systems. User data can be easily transferred over the Wiegand line, making setup and expansion straightforward.

Support 125 kHz EM & 13.56 MHz Mifare (NXP Mifare, Mifare Plus, DesFire, Pro, UltraLight, Classic 4K, NFC, CPU)

The built-in NO/NC/COM relay output supports direct connection to electronic locks, magnetic locks, and alarms. Relay timing is adjustable from 0 to 99 seconds (default 5 s), with a maximum output load of 2 A. The system operates at 12 – 18 V DC with < 35 mA idle current, offering energy-efficient, stable operation in environments ranging from −40 °C to +60 °C and 0–98 % RH humidity.

With a 1000-user capacity, including 998 standard users and 2 panic users, the S6-X delivers professional-grade flexibility for small to medium installations. Two S6-X units can be interlocked for secure two-door control. Compact in size yet powerful in capability, it is an excellent choice for standalone doors, gates, or integrated entry systems.

Device Features

• • Access Modes: Card, PIN, Card + PIN, Multi-Card.
  • Dual-Frequency Reader: 125 KHz EM + 13.56 MHz Mifare (NXP Mifare Plus, DesFire, Pro, UltraLight, Class 4K, NFC, CPU Cards).
  • User Capacity: 1000 users (998 regular + 2 panic).
  • Relay Output: 1 × NO/NC/Common; adjustable 0–99 s (delay default 5 s).
  • Interlock Support: Two devices can interlock two doors.
  • Waterproof & Anti-Vandal: IP66 metal housing with rigid plastic front.
  • Flexible Integration: Wiegand 26–44/56/58 bits input & output.
  • Modes: Pulse & toggle relay control.
  • Visual & Audio Indicators: LED status & buzzer feedback.
  • Low Power Consumption: < 35 mA idle current.
  • Wide Temperature Range: –40 °C to +60 °C operation.
  • Easy Installation: Simple wiring for relay, exit button, alarm, door contact.
  • Versatile Applications: Apartments, offices, schools, labs, warehouses, and gates.

Device Specification

• • Model: S6-X EM + MF Card Access Control
  • Card Type: 125 KHz EM & 13.56 MHz Mifare (NXP Mifare Plus, DesFire, Pro, UltraLight, Class 4K, NFC, CPU Cards)
  • User Capacity: 1000 (998 regular + 2 panic)
  • PIN Length: 4 – 6 digits
  • Read Range: 2 – 6 cm
  • Wiegand Format: 26 – 44 / 56 / 58 bits input and output
  • Relay Output: NO/NC/Common, max load 2 A
  • Relay Time: Adjustable 0 – 99 s (default 5 s)
  • Operating Voltage: 12 – 18 VDC
  • Idle Current: < 35 mA
  • Housing: Metal case + rigid plastic front
  • Protection Level: IP66 waterproof & anti-vandal
  • Operating Temperature: –40 °C ~ +60 °C
  • Operating Humidity: 0 % ~ 98 % RH (non-condensing)
  • Dimensions: 103 (H) × 48 (W) × 20 (T) mm
  • Interlock Support: Yes (2 units for 2 doors)
  • Modes: Pulse / Toggle Selectable
  • Mounting: Surface mount – indoor or outdoor use

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 1 Access Control unit
  • Mounting screws
  • Template & installation instructions

Manufacturer Warranty

• • 1 Year System & Harware Limited Warranty
