Premium 12-Room Smart IP Video Intercom

12-Monitor Smart-Home Intercom System with HD Door Camera, Room-to-Room Calling & Smartphone Access

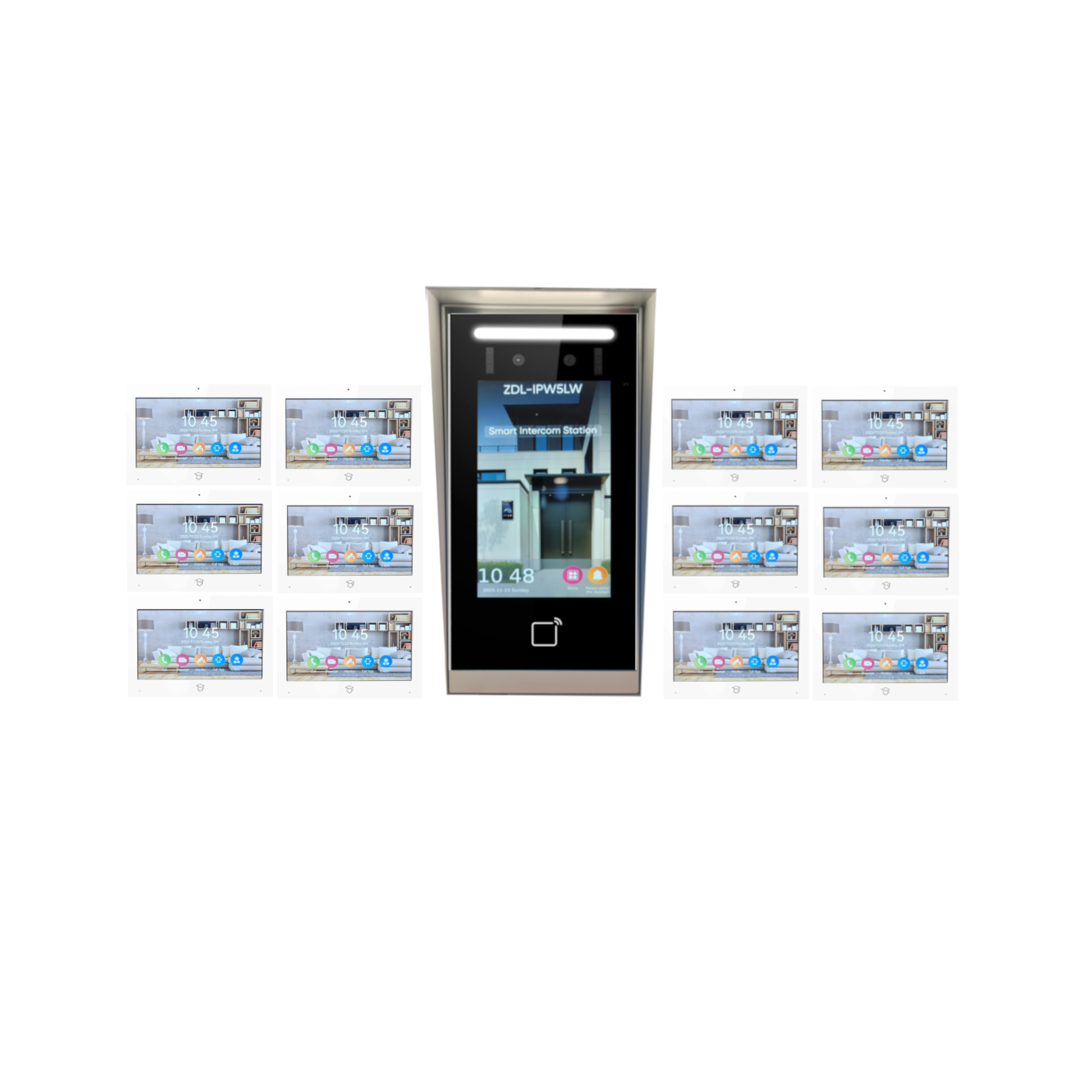

The ZDL-IPW5112WC is a Premium 12-Room Smart IP Video Intercom is a complete 12-interior station + 1 entry camera communication and access-control solution designed for modern homes, offices, villas, multi-floor properties, and commercial facilities. The system supports both wired LAN and Wi-Fi connectivity, offering flexible installation options and powerful smart features for security, convenience, and seamless communication.

The included ZDL-IPW-5LW 2MP hooded weatherproof door camera features a 5-inch touchscreen, 130° wide-angle view, and clear two-way audio/video communication. Visitors can communicate with any designated indoor monitor or grouped monitors, and calls can be forwarded directly to smartphones for offsite answering and remote unlocking.

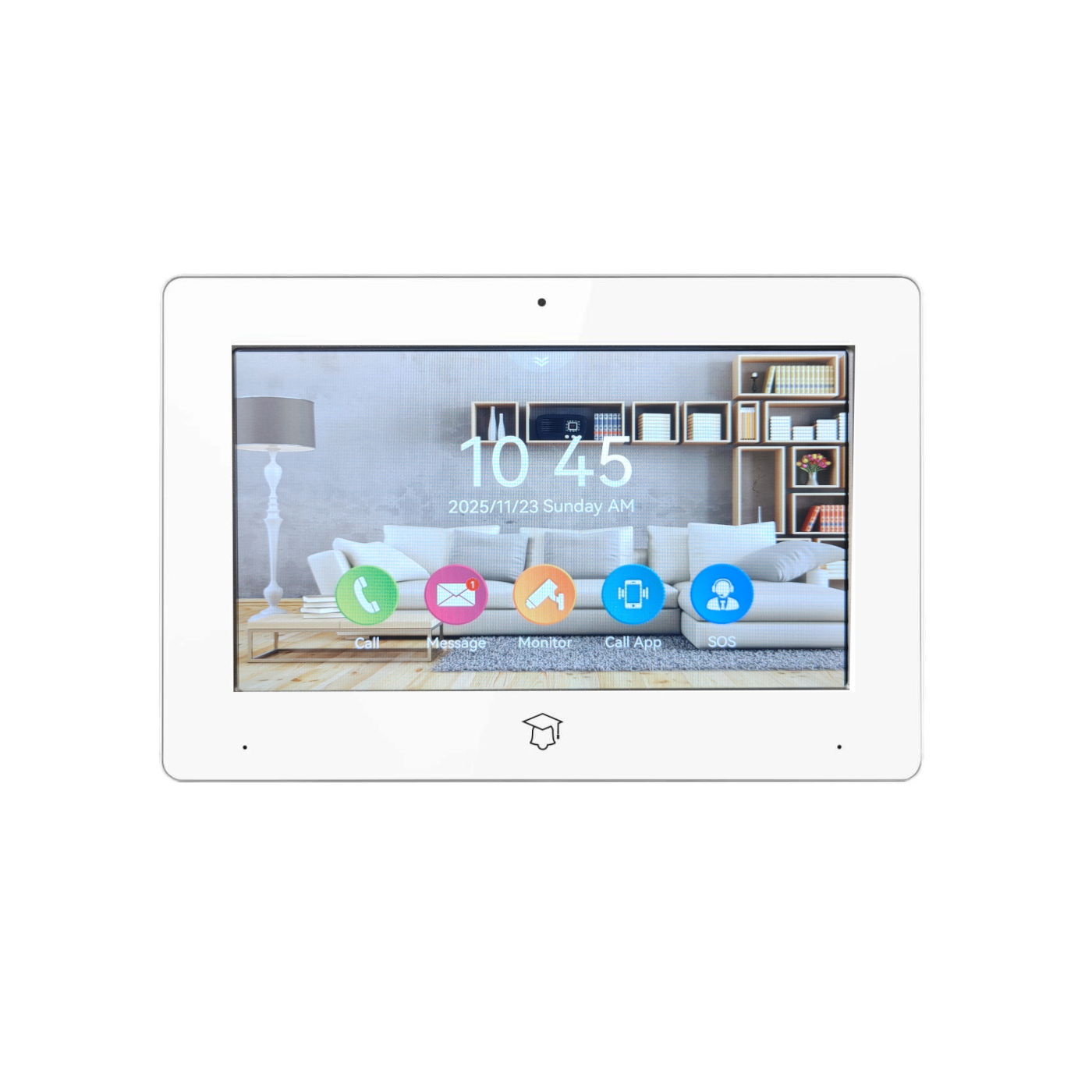

The system includes twelve ZDL-IPW10WC 10-inch high-resolution indoor monitors, each featuring a built-in 3MP front camera, enabling room-to-room video calling, specific room calling, SOS broadcast to all stations, and direct communication with the entry door camera. Each monitor supports PoE or 12VDC power, wired LAN, and Wi-Fi operation.

Full 12-station smart intercom and access system with HD video, Wi-Fi/PoE options, room-to-room calling, face recognition, smartphone control, door access relays, cloud support, IP camera integration

With support for up to 999 indoor stations and 999 entry door cameras, the system scales easily for residential, commercial, and multi-building applications. Built-in smart access features include face recognition, RFID card access, access-code entry, smartphone unlocking, and dual-lock control with adjustable unlocking timers.

Advanced smart-home integration includes motion alerts, snapshots, video recording, cloud support, multiple entry door control, and full compatibility with external sensors (motion, smoke, water leak, door contacts, and sirens). The system also integrates up to 16 external 8MP IP cameras (major brands supported) and up to 4 auxiliary RFID card readers.

The ZDL-IPW5112WC system comes complete with 12 indoor monitors, 1 HD door camera, a 16-port PoE switch, mounting brackets, cables, test keyfob, and full installation/programming manuals. With IP65 + IK07 protection, CAT5e/CAT6 cabling, and user-friendly configuration, installation is fast, clean, and highly reliable.

Features

• • Door Camera & Entry Features

    • 5-inch IP65/IK07 weather-proof touch-screen door camera
    • 2MP HD video, 130° wide view angle, adjustable image settings
    • Voice prompts for visitors
    • Surface-mounted with protective hood
    • Onsite & offsite communication via indoor stations or smartphone

  • Indoor Monitor Features

    • Twelve (12) 10-inch smart IP monitors (PoE or 12VDC)
    • Built-in 3MP front camera for room-to-room video calling
    • Full 2-way audio + video communication from the door
    • Room-to-room, room-to-door, specific station-to-station calling
    • SOS emergency group call to all internal monitors
    • Option to configure all indoor stations to automatically answer door camera calls

  • Smartphone & APP Connectivity

    • Calls from door to smartphone
    • Calls to and from each indoor station and smartphone
    • Free, shareable mobile app with:
      • Door motion monitoring
      • Push alerts & notifications
      • Motion-triggered image snapshots
      • Offsite video recording
      • Cloud storage support

  • Access Control

    • 4 unlock methods: Face recognition, RFID card, Access Code, Smartphone
    • Supports dual locks with adjustable unlocking time
    • Controls:
      • Door strikes
      • Magnetic locks
      • Gate openers
      • Garage doors
    • Compatible with Request-to-Exit (REX) buttons and sensors

  • System Expansion

    • Supports up to 999 indoor stations
    • Supports 999 door stations
    • Integrates up to 16 external 8MP IP cameras (popular brands)
    • Supports 4 auxiliary external RFID readers
    • Connects with:
      • Motion sensors
      • Smoke detectors
      • Water leak sensors
      • Siren alarms
      • Window/door contacts

  • Multi-room Features

    • Personalized call contacts
    • Ringtone selection & ring number adjustment
    • Volume & display brightness adjustments
    • Multi-zone communication
    • Group-call capability

  • Smart Panel Integration

    • Integrates with ZDL-M20 Smart Music Panel
    • Plays music throughout the system
    • Supports Alexa & Google Assistant

  • Installation

    • Uses Cat5e/Cat6 cable
    • Supports PoE or 12VDC power
    • Simple menu-driven setup
    • Professional-grade yet super easy installation

  • Specification

    • Door Camera (ZDL-IPW-5LW)

      • Display: 5″ touch panel
      • Camera: 2MP HD, wide-angle 130°
      • Housing: IP65 Weatherproof, IK07 Vandal Resistant
      • Mounting: Surface mount with hood
      • Communication: 2-way audio/video
      • Access methods: Face / RFID / Pin-Code / Smartphone
      • Power: 12VDC or PoE (model dependent)

    • Indoor Monitors (ZDL-IPW10WC)

      • Quantity: 12
      • Display: 10-inch HD touch screen
      • Camera: 3MP front-facing
      • Network: Wi-Fi + Wired Ethernet
      • Power: PoE or 12VDC
      • Supported calling:
        • Room-to-Room
        • Room-to-Door
        • Station-to-Station
        • Smartphone-to-Monitor

    • System Capacity

      • Indoor Stations: Up to 999
      • Door Stations: Up to 999
      • IP Cameras: Up to 16 (8MP supported)
      • External RFID Readers: Up to 4

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 1× ZDL-IPW-5LW Door Camera
  • 12× ZDL-IPW10WC 10-inch indoor monitors
  • 12× Mounting brackets
  • 1× 16-Port PoE Switch
  • 1× Power lead for door camera
  • 1× Test key fob
  • Installation instructions
  • Programming manual

Manufacturer Warranty

• • 1 Year System & Hardware Limited Warranty
