4-Apartment IP Intercom System – Scalable Smart Video Entry with Touchscreen Control
The ZDL-74 Intercom System for 4 Apartment Building Units is a 4-unit apartment building intercom system that offers seamless blend of smart access control, high-definition video communication kit with PoE touchscreen doorbell and indoor monitors, LAN/Wi-Fi connectivity for wiring flexibility. Built for both retrofits and new construction applications, and support 1 to 99 stations in each apartment, keyless access, real-time monitoring, and smart expansion up to 999 apartments. Features 4-user-friendly wall-mountable touch screen PoE-powered 7-inch touch-screen monitor with one-touch call response, live video view, and door unlock function.
Scalable System – Up to 999 Apartments – Up to 99 Doorbell Units – Up to 99 Indoor Stations per Apartment – Face Recognition for Hands-free Entry
Either planning to upgrade or replace existing cat5e or cat6 wire building intercom systems, this LAN/Wi-Fi connectivity intercom system is the best option due to the simplicity, cost-effectiveness, and more modern features. other access control features like user access-code for each user, smart key-card access for users, mail-main access options, smart call routing when called from included entry station with super stable operations.
Perfect for small to very large apartment buildings, multi-family condos, and office buildings, providing both security and convenience with its smart technology and easy installation. Comes included with everything required to get system up and running.
Key Features
-
- System User Support: User Support: 999 maximum users: APP Users: 4 FREE [Expandable W/Extra Cost] | Face Users: 999 | Access Code Users: 999 | Card Users: 999
- Include 4-Smart Touch Screen Indoor Monitor: Each unit gets a PoE powered, touchscreen monitor allowing video communication, remote unlock with monitor, and real-time monitoring.
- PoE Touchscreen Doorbell Station: Sleek, weather-resistant IP doorbell panel with full-color touchscreen, PoE-powered, and integrated face recognition, code access, and RFID card access.
- Face Recognition & Multi-Credential Entry: Built-in face recognition, PIN code, RFID card, and custom access profiles for secure and flexible resident entry.
- PoE Indoor Touch Monitors: Each apartment supports up to 99 indoor touchscreen monitors, all PoE-powered, with high-definition video, intercom, and access control.
- Smartphone Access with Free App: Residents can answer calls, view visitors, and unlock doors remotely via a free mobile app (iOS and Android).
- Expandable: Supports up to 999 apartments, 99 door stations, and 99 indoor units per apartment—ideal for large-scale properties and multi-building developments.
- Room-to-Room Communication: Enables intercom calling between rooms within the same apartment—perfect for large units or shared living spaces.
- Building-to-Building Communication: Seamlessly connect residents and admins across multiple buildings in the same complex.
- Face Recognition & Multi-Credential Entry: Built-in face recognition, PIN code, RFID card, and custom access profiles for secure and flexible resident entry.
- Access Logs & Video Recording: Monitor record visitor’s interactions, and motion events to cloud storage via smartphone app.
- Night Vision & Wide-Angle Lens: Clear visibility even in low light with infrared night vision and wide-angle lenses to cover more area.
- CCTV Camera Integration: Easily connect additional cameras for extended surveillance around common areas, entryways, or parking zones.
- Wi-Fi & LAN Connectivity: Supports both wireless and wired network setups for installation flexibility and stable performance.
- Up to 4 Auxiliary Card Reader Support: Extend access control to additional doors, gates, or shared facilities with up to four external RFID readers.
- Scheduled Access Management: Define who can access specific doors at certain times—ideal for managing cleaning staff, deliveries, or temporary guests.
- Installation & Customization: Suitable for apartments, office buildings, gated communities, or commercial facilities | Configurable per-door settings | Scalable for expansion if additional doors are needed.
- Audit Trail – Retrieve achived access records by date and time
- Mobile APP Support: Smart Life – Subscription FREE
- Central Management Software: Includes powerful PC-based software for system configuration, user management, access logs, and real-time monitoring.
Device Specification
-
-

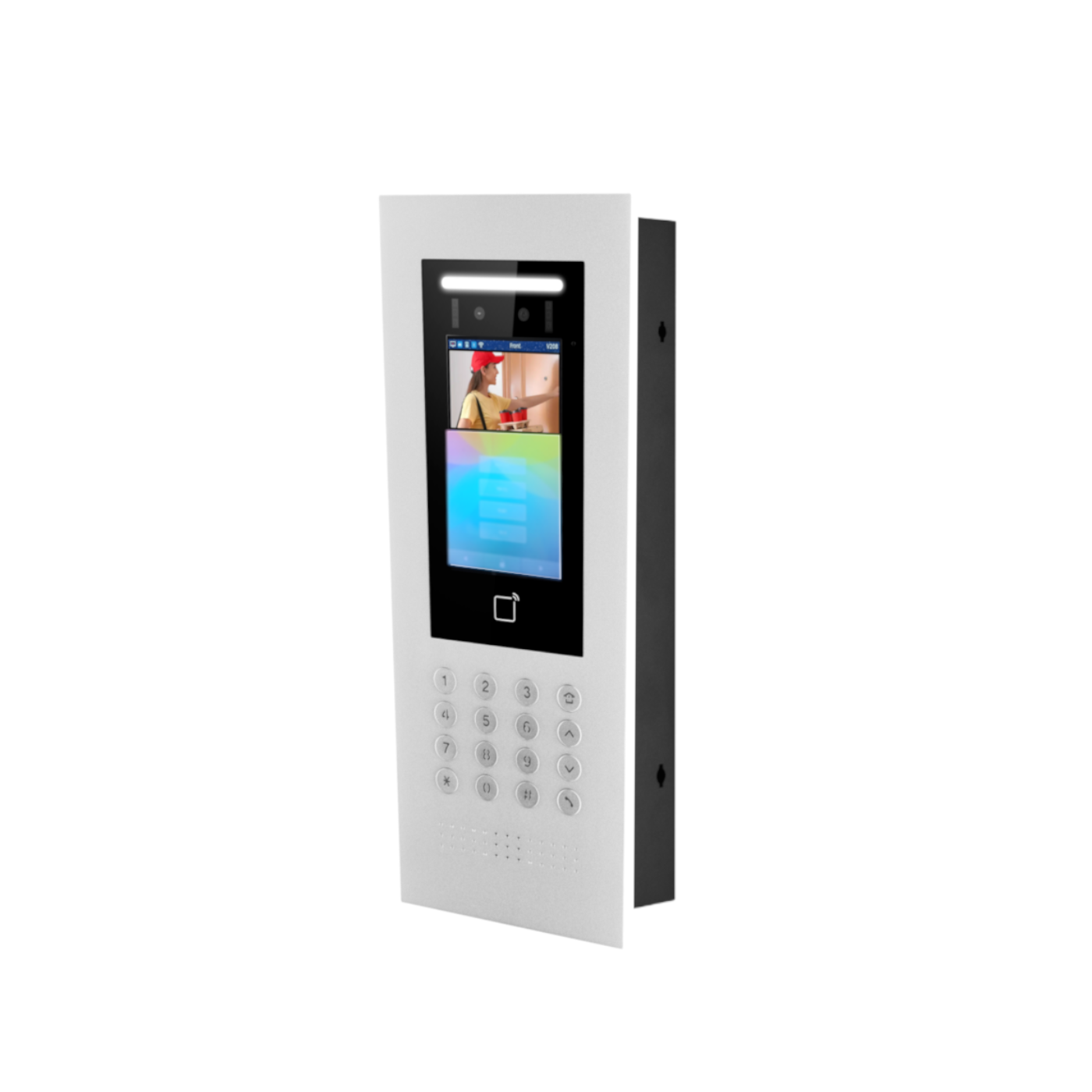

ZDL-7 IP Intercom Door Station
- Camera Resolution: 2MP
- Device Screen Size: 5-Inch
- Camera Veiwing Angle: 150-Degree
- Night View: IR LEDs ON [1-IR-LEDS]
- Connection: RJ45-Female [Optional 8-Wire Connector Available]
- Network: WiFi Function / Ethernet LAN
- Power Source: 12VDC Or POE
- Operating Current: <400mA
- Power Consumption: <5-Watts
- Panel Dimension: Width-5.5 X Height-14.5 X Thickness-2.0 Inches
- Mounting Style: Flush Mounting [Recommended]
- Operating Temperature: -10 Degree To 158 Degree Fahrenheit
- Weight: 18 Pounds
-
ZDL-IPWS7 Smart Touch Screen Monitor
- Device Screen Size: 7-Inch
- Screen Operation: Capacitive touch screen
- Camera Veiwing Angle: 150-Degree
- Screen Resolution: 1024 X 600
- LAN Connection: RJ45-Female
- Network Support: WiFi / LAN [Ethernet]
- Power Source: 12VDC Or POE [48V]
- Operating Current: <400mA
- Power Consumption: <5-Watts
- Panel Dimension: Width-9.5 X Height-6.5 X Thickness-0.9 Inches
- Monitor Mounting Style: Surface Mounting [Recommended]
- Compatible Door Cameras: ZDL-IPW2 | ZDL-IPW5LW | ZDL-IPW100W | ZDL-IPW80W | ZDL-IPW1000 | ZDL-IPW5000 | ZDL-7 | ZDL-700 | ZDL-7500 | ZDL-8500.
- IP Camera Support: HikVision | ONVIF | Dahua
- Weight: 2 Pounds
-
Got Application Customization Questions?
-
- Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
- Email our Sales Department to get an answer within 24-hours
- Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

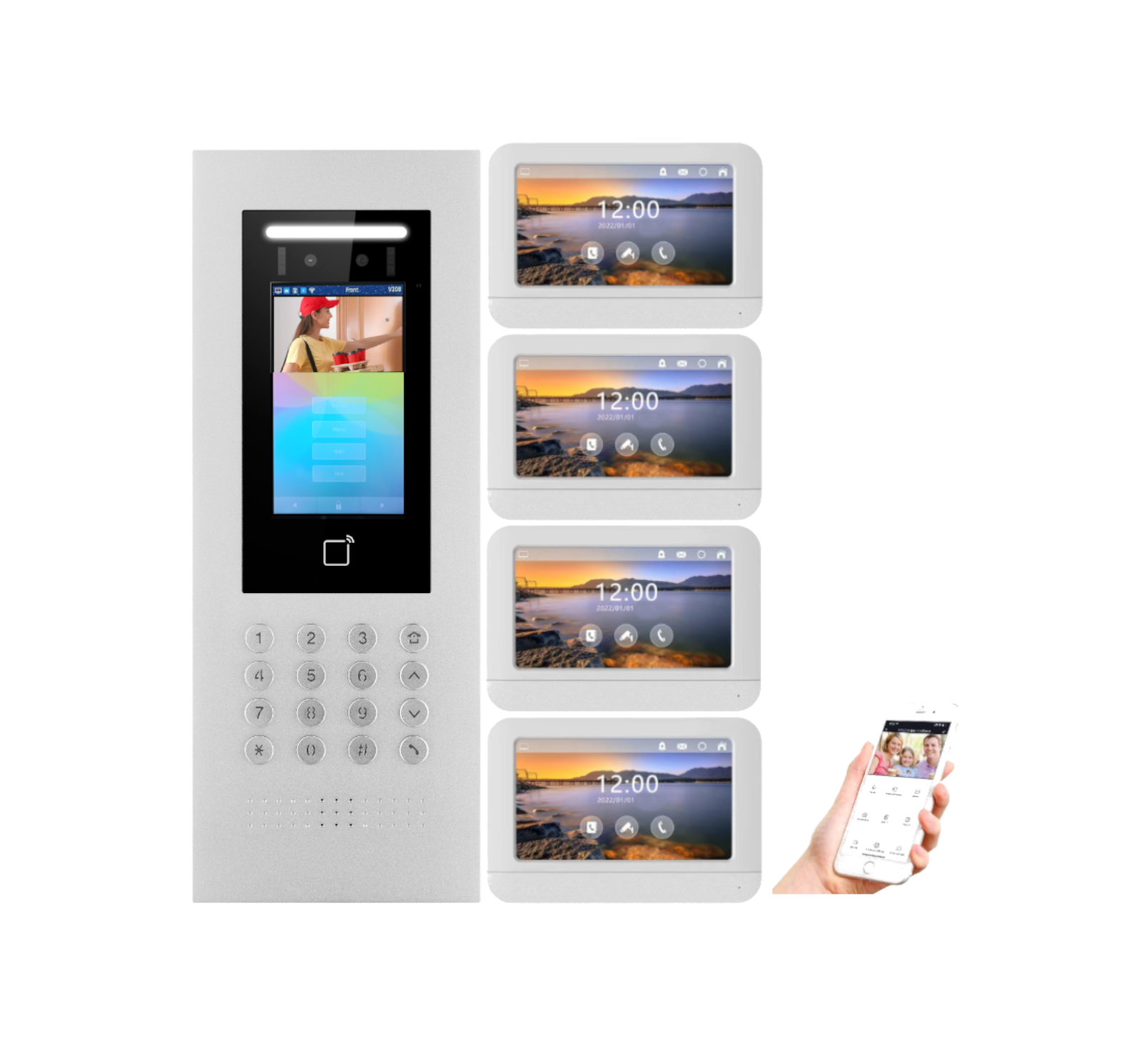

Included Items & Accessories
-
- 1 ZDL-7 Door Camera
- 4 ZDL-IPWS7W Monitor
- 4 Port Poe Switch [System Power Supply]
- 1 Access Control power supply
- 2 Test Key-fobs
- Mounting Accessories
- Instructions & Manuals
Manufacturer Warranty
-
- 1 Year System & Harware Limited Warranty
