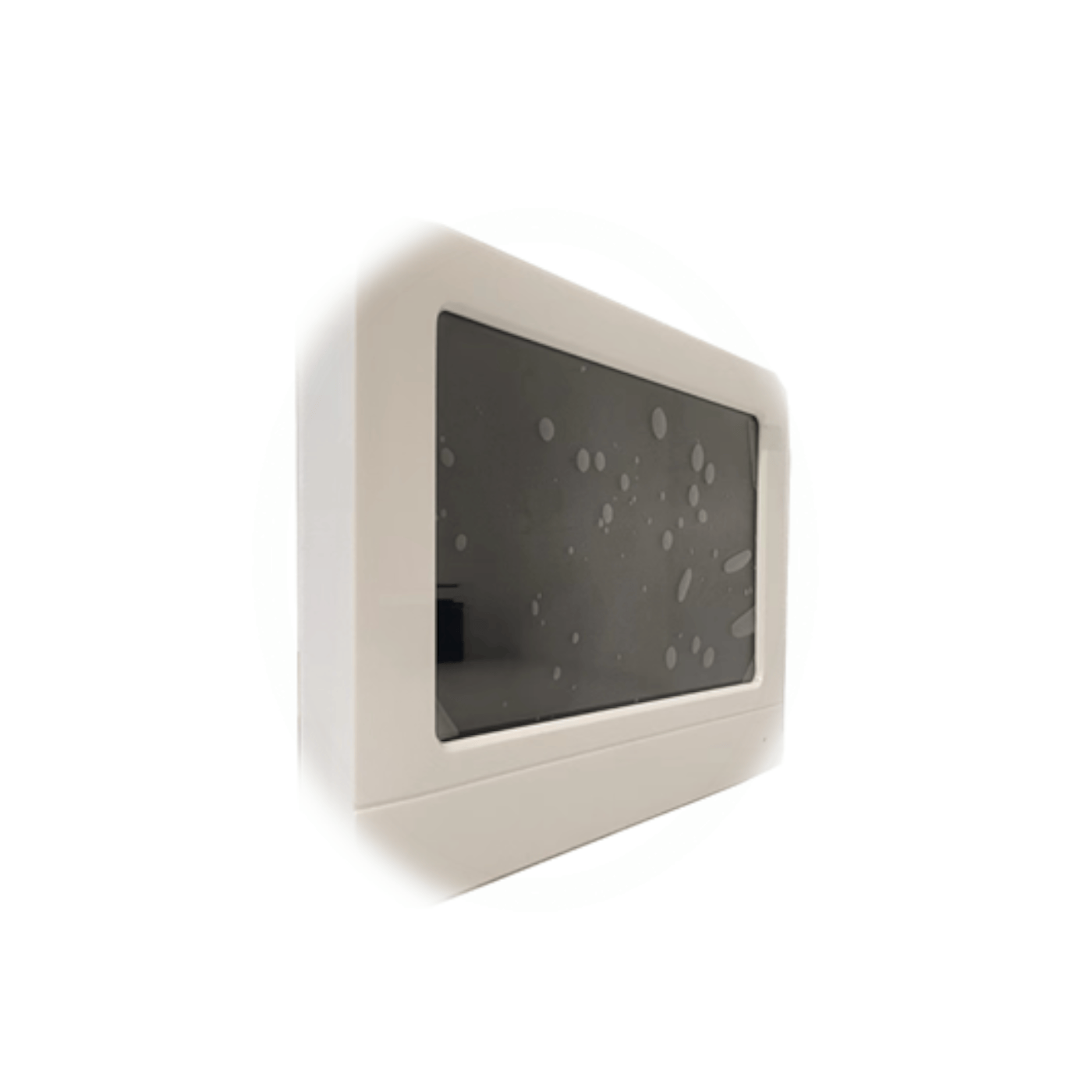

ZDL-IPWS7W 7-Inch Touch-Screen WIFI/LAN 2 Way Intercom Monitor

Wi-Fi/LAN 2-Way Full Duplex Communication – Local & Remote Communication

The ZDL-IPWS7W 7-Inch Touch-Screen WIFI/LAN 2 Way Intercom Monitor is a 2-way full duplex communication monitor that combines high-performance audio communication with flexible Wi-Fi and LAN connectivity, enabling smooth, hands-free conversations both locally and remotely. Smart intelligent 2-way full duplex monitor, designed for seamless, real-time audio and video communication with connected doorbell camera onsite and room-to-room audio communication onsite/offsite.

Supports simultaneous two-way audio, enabling natural, hands-free conversations, just like a phone call and ensures uninterrupted connectivity between parties, without the need to push buttons or wait for turns to speak.

Local & Remote Onsite/Offsite Communication | PoE & 12VDC | Smart Messaging, Alarm Integration & Custom Features

Requires NO Doorbell Camera to function onsite or offsite, and you can add up to 9999 extensions to create single or multiple communication group locally and remotely. Perfect communication solution for smart homes, apartment buildings, offices, hospitals, schools, and remote entry monitoring systems requiring robust communication with centralized or distributed control.

Key Features

• • Local Communication: Enables room-to-room or station-to-station interactions within the premises — ideal for homes, offices, clinics, and commercial spaces.
  • Onsite & Offsite Communication: Connect via secure Wi-Fi or LAN for real-time communication.
  • True Full Duplex Communication: Supports simultaneous two-way audio, enabling natural, hands-free conversations, just like a phone call.
  • Message Archiving: Automatically stores audio/video messages with timestamp and date—ideal for logs, playback, and security reference.
  • Secure Data Transmission: Encrypted audio and video streams to ensure privacy and prevent unauthorized access.
  • Expandable Up To 999 Monitor Groups –  Can connect up to 999 smart monitor groups, and up to 999 extensions doorbell groups.
  • Multi-Channel Support: Manage multiple communication points and locations through a centralized interface.
  • Personalized Contacts: Add, manage, and label frequently used contact points for fast one-touch communication.
  • Smart Integration: Compatible with video access control systems, CCTV, door stations, and building automation platforms.
  • Alarm System Integration: Seamlessly connects with alarm and security systems for unified monitoring and real-time alerts (e.g., fire, intrusion, panic button).
  • Screen Saver Display: Configurable idle screen for clock display, single/4-screen CCTV camera display or photos.
  • Wired or Wireless Options – Device can be hardwired into Poe Network Switch or operate wirelessly via Wi-Fi with 12vdc adapter.
  • PoE (Power over Ethernet): Simplified single-cable installation via Cat5e/Cat6.
  • 12VDC Power Input: Alternative power option for flexible deployment in various environments.

Device Specification

• • Device Screen Size: 7-Inch
  • Screen Operation: Capacitive touch screen
  • Screen Resolution: 1024 X 600
  • LAN Connection: RJ45-Female
  • Network Support: WiFi / LAN [Ethernet]
  • Power Source: 12VDC Or POE [48V]
  • Operating Current: <400mA
  • Power Consumption: <5-Watts
  • Panel Dimension: Width-9.5 X Height-6.5 X Thickness-0.9 Inches
  • Monitor Mounting Style: Flush Mounting [Recommended]
  • Compatible Door Cameras: ZDL-IPW2 | ZDL-IPW5LW | ZDL-IPW100W | ZDL-IPW80W | ZDL-IPW1000 | ZDL-IPW5000 | ZDL-7 | ZDL-700 | ZDL-7500 | ZDL-8500.
  • IP Camera Support: HikVision | ONVIF | Dahua
  • Weight: 2 Pounds

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 1 ZDL-IPWS7W 7-inch Smart Monitor
  • 1 2-Pin Power lead
  • 1 5-Wire Sensors & Detectors connector
  • Mounting Accessories
  • Instructions & Manuals

Manufacturer Warranty

• • 1 Year System & Harware Limited Warranty
