Condo Building Doorbell

Condo Building Doorbell

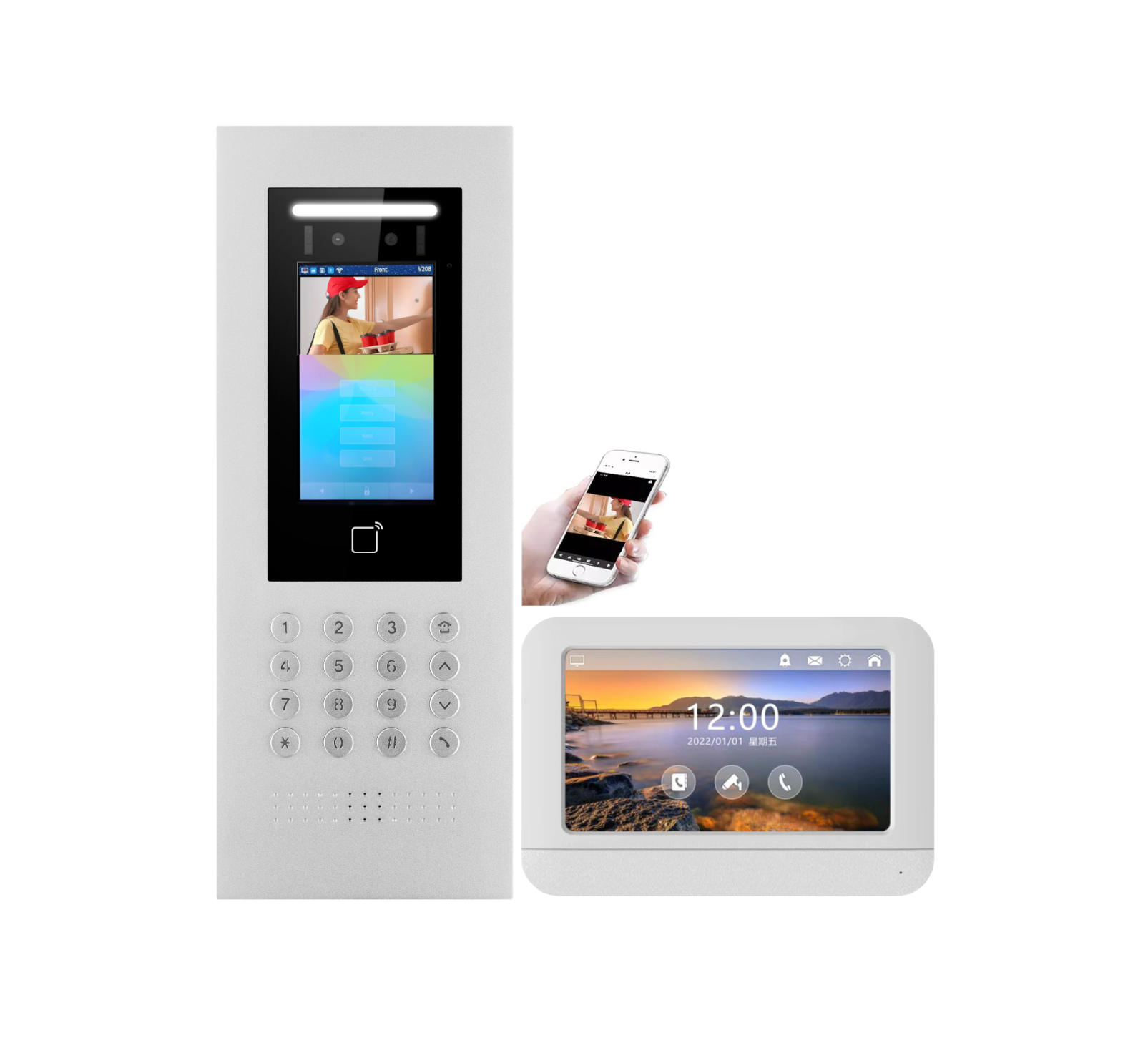

The ZDL-71 Condo Building Doorbell is a modern, internet-enabled solution for secure and efficient access control in multi-unit residential buildings. Unlike traditional analog intercoms, this IP-based systems use the local network (LAN) to facilitate communication between residents, visitors, and building management.

Support Up to 9999 Apartments – 99 Monitors Per Room – 999 Entry Doors

Multiple Authentication Methods – PIN codes, RFID key fobs/cards, facial recognition, and mobile app for secure access. Perfect solution for property managers, building owners, and resident condominium owners seeking an affordable yet robust solution for secure and convenient building access management.

Key Features

• • System User Support
    • Standard Users: 2000 | APP Users: 1 FREE [Expandable W/Extra Cost] | Face Users: 2000 | Access Code Users: 2000 | Card Users: 2000
  • Two-Way Audio & Video Communication
    • Visitors can call residents via included outdoor panel with an HD camera and microphone.
    • Residents can answer via mobile apps or indoor touchscreen monitors.
  • Remote Access & Mobile Integration
    • Residents can receive calls and unlock doors remotely using a smartphone app [System Include 1 User APP. Expandable W/Extra Cost].
    • Notifications and call logs provide security insights.
  • Cloud or On-Premise Operation
    • Cloud-based systems store access logs and video footage securely online.
    • On-premise solutions provide local storage and operation without internet dependency.
  • Multiple Authentication Methods
    • PIN codes, RFID key fobs/cards, facial recognition, and smartphones for secure access.
  • Visitor Management & Virtual Keys
    • Temporary access codes can be issued to guests, delivery personnel, or service providers.
    • Integration with property management software allows streamlined visitor tracking.
  • Multi-Door & Multi-Building Support
    • Scalable architecture to support multiple entrances and interconnected buildings.
    • Can be integrated with elevator controls to allow floor-restricted access [Add-on Hardware Required].
  • Integration with Smart Home & Security Systems
    • Works with smart locks, CCTV, and home automation systems for enhanced security.
  • Weatherproof & Vandal-Resistant Design
    • Outdoor panels are designed for durability with IP65/IP67 ratings for weather resistance.
    • Tamper alarms notify management in case of unauthorized access attempts.

Common Use Cases

• • Gated communities and apartment complexes
  • Office buildings and co-working spaces
  • Senior living facilities and student housing
  • Mixed-use buildings with both residential and commercial units

Device Specification

ZDL-7 IP Intercom Door Station

• • Camera Resolution: 2MP
  • Device Screen Size: 5-Inch
  • Camera Veiwing Angle: 150-Degree
  • Night View: IR LEDs ON [1-IR-LEDS]
  • Connection: RJ45-Female [Optional 8-Wire Connector Available]
  • WiFi Function / Ethernet LAN
  • Power Source: 12VDC Or POE
  • Operating Current: <400mA
  • Power Consumption: <5-Watts
  • Panel Dimension: Width-5.5 X Height-14.5 X Thickness-2.0 Inches
  • Mounting Style: Flush Mounting [Recommended]
  • Operating Temperature: -10 Degree To 158 Degree Fahrenheit
  • Weight: 18 Pounds

ZDL-IPWS7 Smart Touch Screen Monitor

• • Device Screen Size: 7-Inch
  • Screen Operation: Capacitive touch screen
  • Camera Veiwing Angle: 150-Degree
  • Screen Resolution: 1024 X 600
  • LAN Connection: RJ45-Female
  • Network Support: WiFi / LAN [Ethernet]
  • Power Source: 12VDC Or POE [48V]
  • Operating Current: <400mA
  • Power Consumption: <5-Watts
  • Panel Dimension: Width-9.5 X Height-6.5 X Thickness-0.9 Inches
  • Monitor Mounting Style: Flush Mounting [Recommended]
  • Compatible Door Cameras: ZDL-IPW2 | ZDL-IPW5LW | ZDL-IPW100W | ZDL-IPW80W | ZDL-IPW1000 | ZDL-IPW5000 | ZDL-7 | ZDL-700 | ZDL-7500 | ZDL-8500.
  • IP Camera Support: HikVision | ONVIF | Dahua
  • Weight: 2 Pounds

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 1 ZDL-7 Door Camera
  • 1 ZDL-IPWS7W Monitor
  • 4 Port Poe Switch [System Power Supply]
  • 2 Test Key-fobs
  • Mounting Accessories
  • Instructions & Manuals

Manufacturer Warranty

• • 1 Year System & Harware Limited Warranty
