2 Apartment Video Entry System

2-Apartment IP Video Entry System – Smart, Scalable, and Fully Integrated Access Control

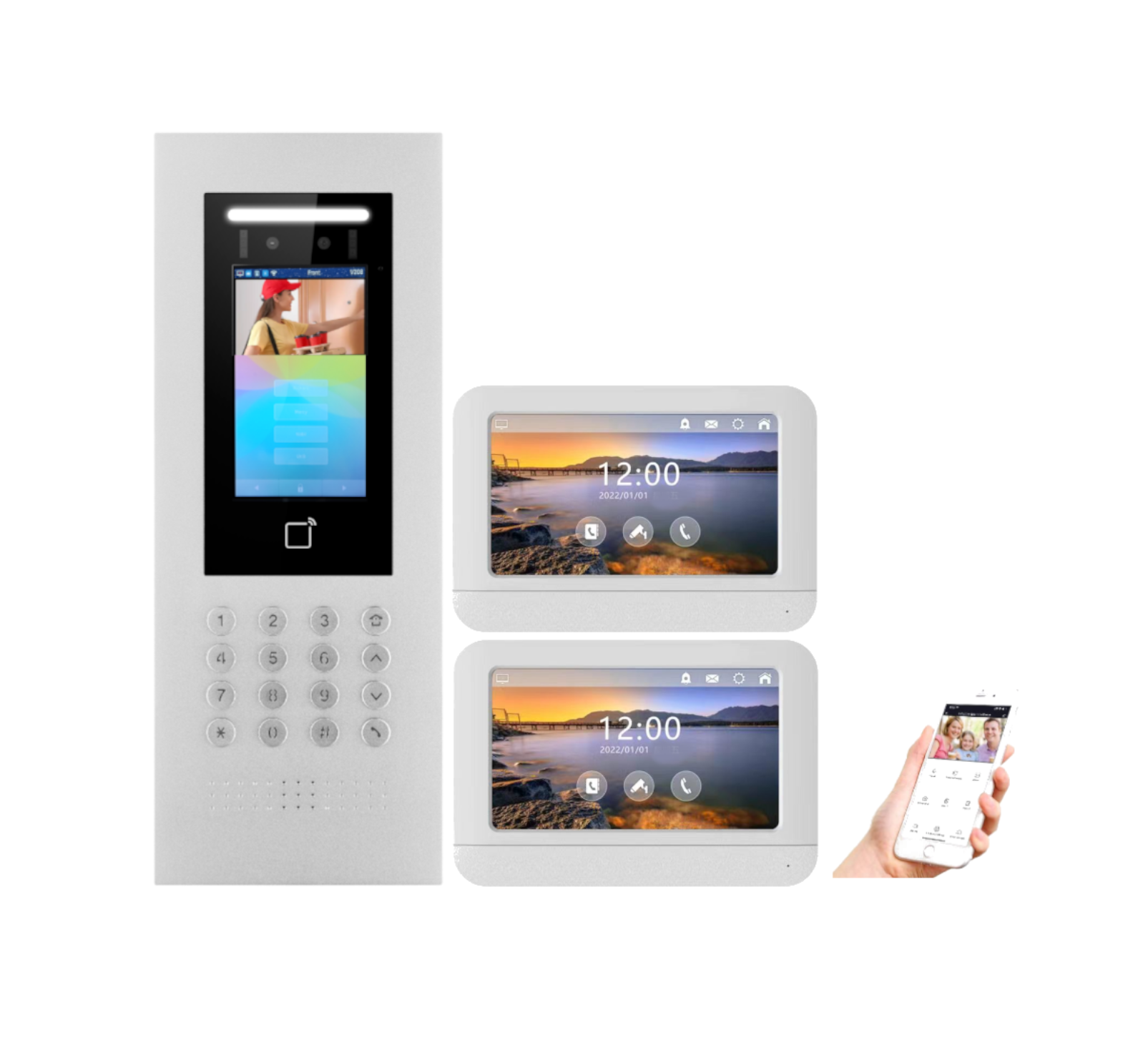

The ZDL-72 2 Apartment Video Entry System is a 2-tenant intercom system designed for modern residential applications, starting with 2 apartments and scalable up to 999 units. Built for both retrofits and new construction applications, and support 1 to 99 stations in each apartment, keyless access, real-time monitoring, and smart expansion up to 999 apartments. Features 2-user-friendly wall-mountable touch screen PoE powered smart 7-inch touch-screen monitor with one-touch call response, live video view, and door unlock function.

PoE Touchscreen Indoor Monitors – 99 Indoor Stations per Apartment – 99 Doorbell Units, and 999 Apartment Addresses

Whether planning an upgrade or replacement of existing cat5e or cat6 wire building intercom systems, this LAN/Wi-Fi connectivity intercom system offers the best options due to its simplicity, cost-effectiveness, and high-capacity support with integrated security and access control. Ideal for condominiums, multi-tower apartment complexes, gated communities, and smart residential buildings. Comes included with all parts, hardware and accessories required to get system setup and running.

Key Features

• • System User Support: User Support: 999 maximum users:  APP Users: 1 FREE [Expandable W/Extra Cost] | Face Users: 999 | Access Code Users: 999 | Card Users: 999
  • Include 2-Smart Touch Screen Indoor Monitor: Each unit gets a PoE powered, touchscreen monitor allowing video communication, remote unlock with monitor, and real-time monitoring.
  • PoE Touchscreen Doorbell Station: Sleek, weather-resistant IP doorbell panel with full-color touchscreen, PoE-powered, and integrated face recognition, code access, and RFID card access.
  • Face Recognition & Multi-Credential Entry: Built-in face recognition, PIN code, RFID card, and custom access profiles for secure and flexible resident entry.
  • PoE Indoor Touch Monitors: Each apartment supports up to 99 indoor touchscreen monitors, all PoE-powered, with high-definition video, intercom, and access control.
  • Smartphone Access with Free App: Residents can answer calls, view visitors, and unlock doors remotely via a free mobile app (iOS and Android).
  • Expandable: Supports up to 999 apartments, 99 door stations, and 99 indoor units per apartment—ideal for large-scale properties and multi-building developments.
  • Room-to-Room Communication: Enables intercom calling between rooms within the same apartment—perfect for large units or shared living spaces.
  • Building-to-Building Communication: Seamlessly connect residents and admins across multiple buildings in the same complex.
  • Face Recognition & Multi-Credential Entry: Built-in face recognition, PIN code, RFID card, and custom access profiles for secure and flexible resident entry.
  • Access Logs & Video Recording: Monitor record visitor’s interactions, and motion events to cloud storage via smartphone app.
  • Night Vision & Wide-Angle Lens: Clear visibility even in low light with infrared night vision and wide-angle lenses to cover more area.
  • CCTV Camera Integration: Easily connect additional cameras for extended surveillance around common areas, entryways, or parking zones.
  • Wi-Fi & LAN Connectivity: Supports both wireless and wired network setups for installation flexibility and stable performance.
  • Up to 4 Auxiliary Card Reader Support: Extend access control to additional doors, gates, or shared facilities with up to four external RFID readers.
  • Scheduled Access Management: Define who can access specific doors at certain times—ideal for managing cleaning staff, deliveries, or temporary guests.
  • Installation & Customization: Suitable for apartments, office buildings, gated communities, or commercial facilities | Configurable per-door settings | Scalable for expansion if additional doors are needed.
  • Audit Trail – Retrieve achived access records by date and time
  • Mobile APP Support: Smart Life – Subscription FREE
  • Central Management Software: Includes powerful PC-based software for system configuration, user management, access logs, and real-time monitoring.

Device Specification

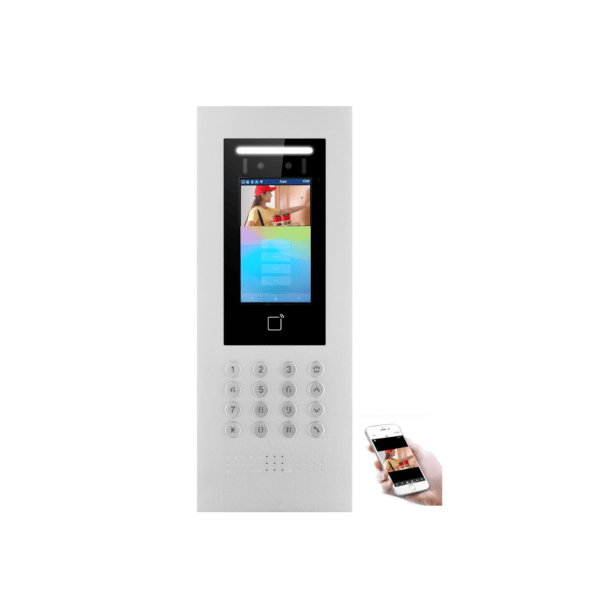

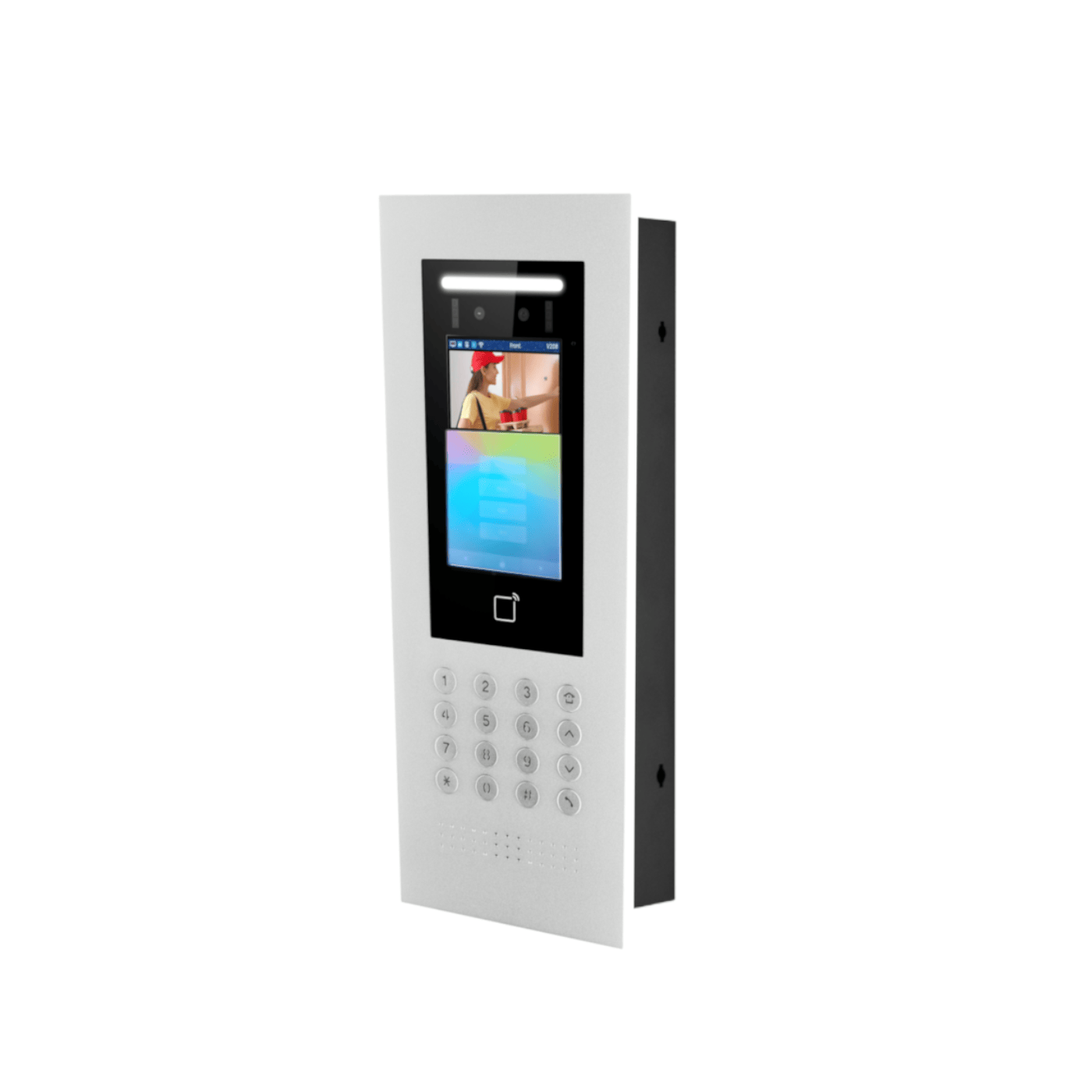

• • ZDL-7 IP Intercom Door Station

    • Camera Resolution: 2MP
    • Device Screen Size: 5-Inch
    • Camera Veiwing Angle: 150-Degree
    • Night View: IR LEDs ON [1-IR-LEDS]
    • Connection: RJ45-Female [Optional 8-Wire Connector Available]
    • Network: WiFi Function / Ethernet LAN
    • Power Source: 12VDC Or POE
    • Operating Current: <400mA
    • Power Consumption: <5-Watts
    • Panel Dimension: Width-5.5 X Height-14.5 X Thickness-2.0 Inches
    • Mounting Style: Flush Mounting [Recommended]
    • Operating Temperature: -10 Degree To 158 Degree Fahrenheit
    • Weight: 18 Pounds

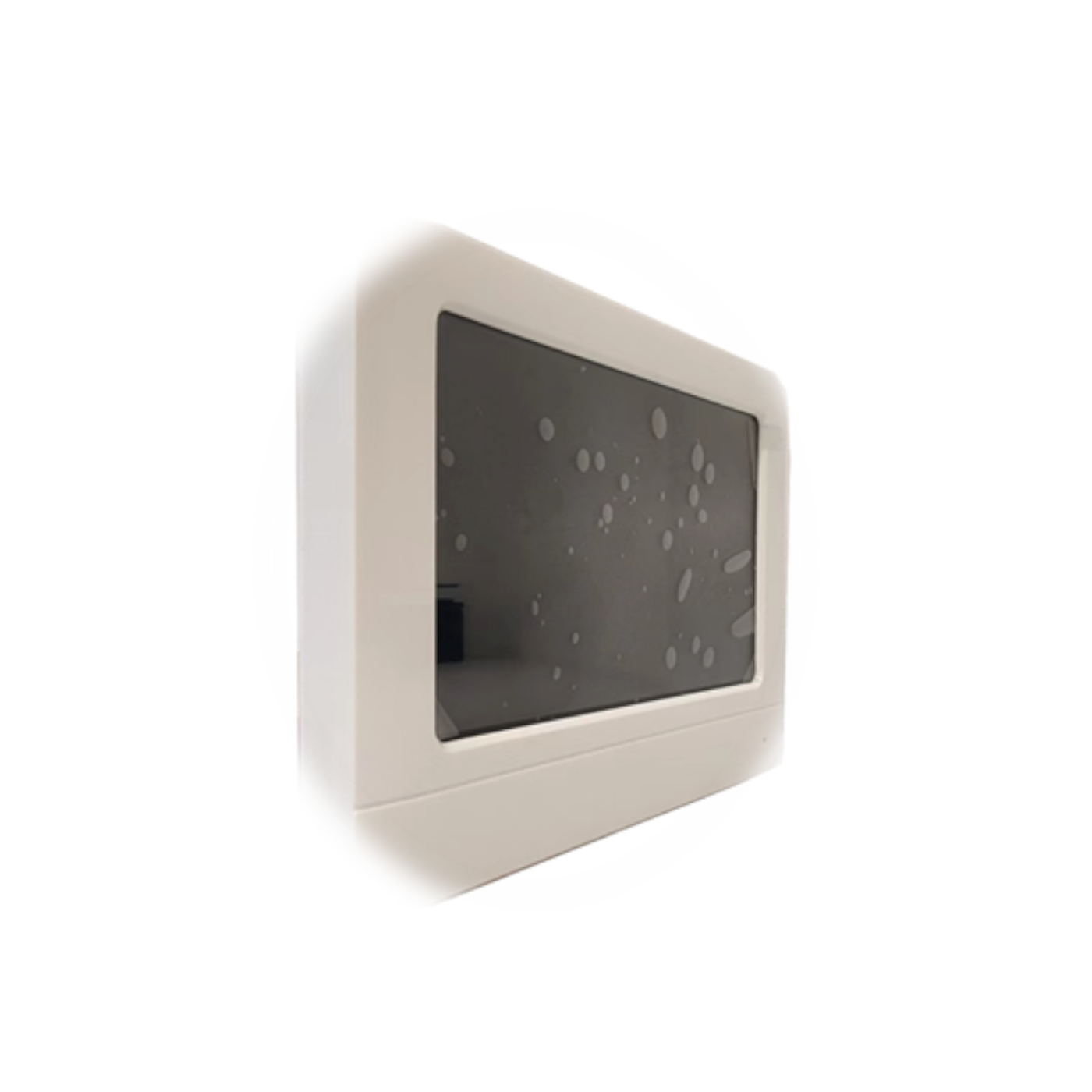

  • ZDL-IPWS7 Smart Touch Screen Monitor

    • Device Screen Size: 7-Inch
    • Screen Operation: Capacitive touch screen
    • Camera Veiwing Angle: 150-Degree
    • Screen Resolution: 1024 X 600
    • LAN Connection: RJ45-Female
    • Network Support: WiFi / LAN [Ethernet]
    • Power Source: 12VDC Or POE [48V]
    • Operating Current: <400mA
    • Power Consumption: <5-Watts
    • Panel Dimension: Width-9.5 X Height-6.5 X Thickness-0.9 Inches
    • Monitor Mounting Style: Surface Mounting [Recommended]
    • Compatible Door Cameras: ZDL-IPW2 | ZDL-IPW5LW | ZDL-IPW100W | ZDL-IPW80W | ZDL-IPW1000 | ZDL-IPW5000 | ZDL-7 | ZDL-700 | ZDL-7500 | ZDL-8500.
    • IP Camera Support: HikVision | ONVIF | Dahua
    • Weight: 2 Pounds

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 1 ZDL-7 Door camera
  • 2 ZDL-IPWS7W monitor
  • 4 Port Poe Switch [System Main Power Supply]
  • 1 Access Control power supply
  • 2 Test Key-fobs
  • Mounting Accessories
  • Instructions & Manuals

Manufacturer Warranty

• • 1 Year System & Harware Limited Warranty
