6 Unit Touch-screen Panel For 6-Multi-unit Apartment Building

6-Unit Touchscreen Video Intercom System – Scalable Smart Access for Multi-Apartment Buildings

The 2W-OS26 6 Unit Touch-screen Panel For 6-Multi-unit Apartment Building is a modern touchscreen video intercom system designed for a 6-unit multi-apartment building. Built for both retrofits and new construction applications, and support 1 to 4 stations in each apartment, keyless access, real-time monitoring, and smart expansion up to 128 apartments. Features user-friendly wall-mountable touch screen 7-inch touch-screen monitor with one-touch call response, live video view, and door unlock function.

Expandable Multi-Unit Calling System – Video Intercom Solution with Smart Access Control, Routes Guest’s Calls to Specific Residents.

If shopping to upgrade or replace existing 3-wire, 4-wire, 5-wire, or 6-8 wire building intercom system, this 2-wire intercom system is the best option due to the simplicity, cost-effectiveness, and more modern features. other access control features like user access-code for each user, smart key-card access for users, mail-main access options, smart call routing when called from included entry station with super stable operations.

Perfect for small to very large apartment buildings, multi-family condos, and office buildings, providing both security and convenience with its smart technology and easy installation. Comes included with everything required to get system up and running.

Key Features

• • Include 6-Touch Screen Indoor Monitor: Each unit features a sleek, touchscreen monitor allowing video communication, remote unlock with monitor, and real-time monitoring.
  • Up To 4-Monitor Support In Each Unit: Each apartment unit can get up to 4-indoor monitors [Rings  simultaneously when called from connected door camera]
  • Missed Calls notification – Notifications for missed calls.
  • Compatibility With Existing Wiring – Compatible with traditional multi-wire intercoms (3-wire, 4-wire, 5-wire, 6-8 wire systems).
  • 2-Wire Technology – Uses only two wires for power, audio, video, and data transmission, making installation easier and cost-effective.
  • Expandable System: Scalable from 8 units up to 128 units, ideal for small buildings and large complexes.
  • User Directory Display: Built-in digital directory for easy visitor call selection.
  • Door Release Function – Residents can remotely unlock the entrance door from their indoor unit.
  • Multi-Access Entry: Supports RFID card access, numeric code entry for convenience.
  • Night Vision & Wide-Angle View – Include infrared or low-light cameras for night use and a wide viewing angle for better coverage.
  • Video Snapshot & Recording: Automatically captures visitor images and stores snapshots clips with date and time.
  • Alert Notifications & Messaging: Residents receive doorbell rings, system alerts, and broadcast messages directly on their monitors.
  • CCTV Integration: Connects with external CCTV cameras for added perimeter surveillance and live viewing from the monitor.
  • Weatherproof Outdoor Unit – The entrance panel is weather-resistant for outdoor durability.

Device Specification

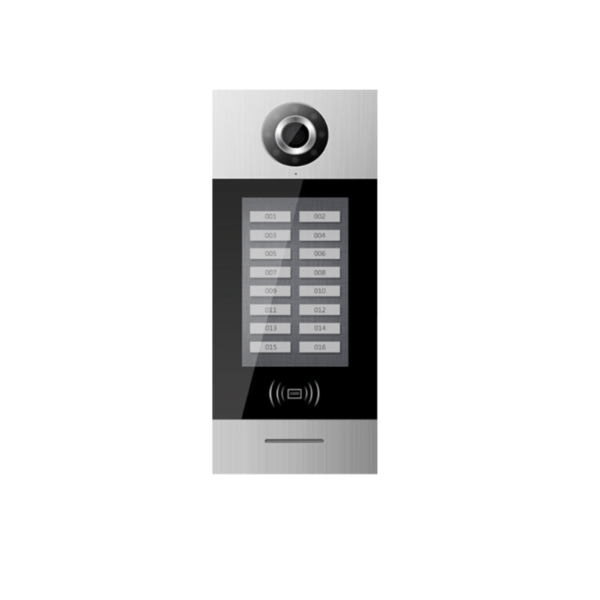

• •  2W-OS02 Door Camera Panel

    • Type: CMOS
    • Resolution: 2MP
    • Min. Illumination: 0.1 lux
    • Fill-in Light: White
    • View Angle: Diagonal 70°×50°
    • Focal Length: 2.5mm
    • Adjustable View Angle: up/down/left/right 10°
    • Working Voltage: DC 24~32V.
    • Static Current: ≤ 90mA (DC 30V)
    • Working Current: ≤ 400mA(DC 30V)
    • Working Temperature:-25℃~55℃
    • Storage Temperature:-40℃~70℃
    • Dimension [Size] Height: 14.3 | Width: 5.8 | Depth: 1.9 inches

  • 2W-IS01 | 2W-IS13 Touch Screen Monitors

    • Screen Size: 7 inch
    • Working Voltage: DC 24~32V
    • Working Current: ≤ 220mA (DC 24V)
    • Standby Current: ≤ 160mA
    • Working Temperature: -25℃~55℃
    • Storage Temperature: -40℃~70℃
    • Dimensions: Width: 8.7 | Height: 5.5 | Thickness: 0.9 inches

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

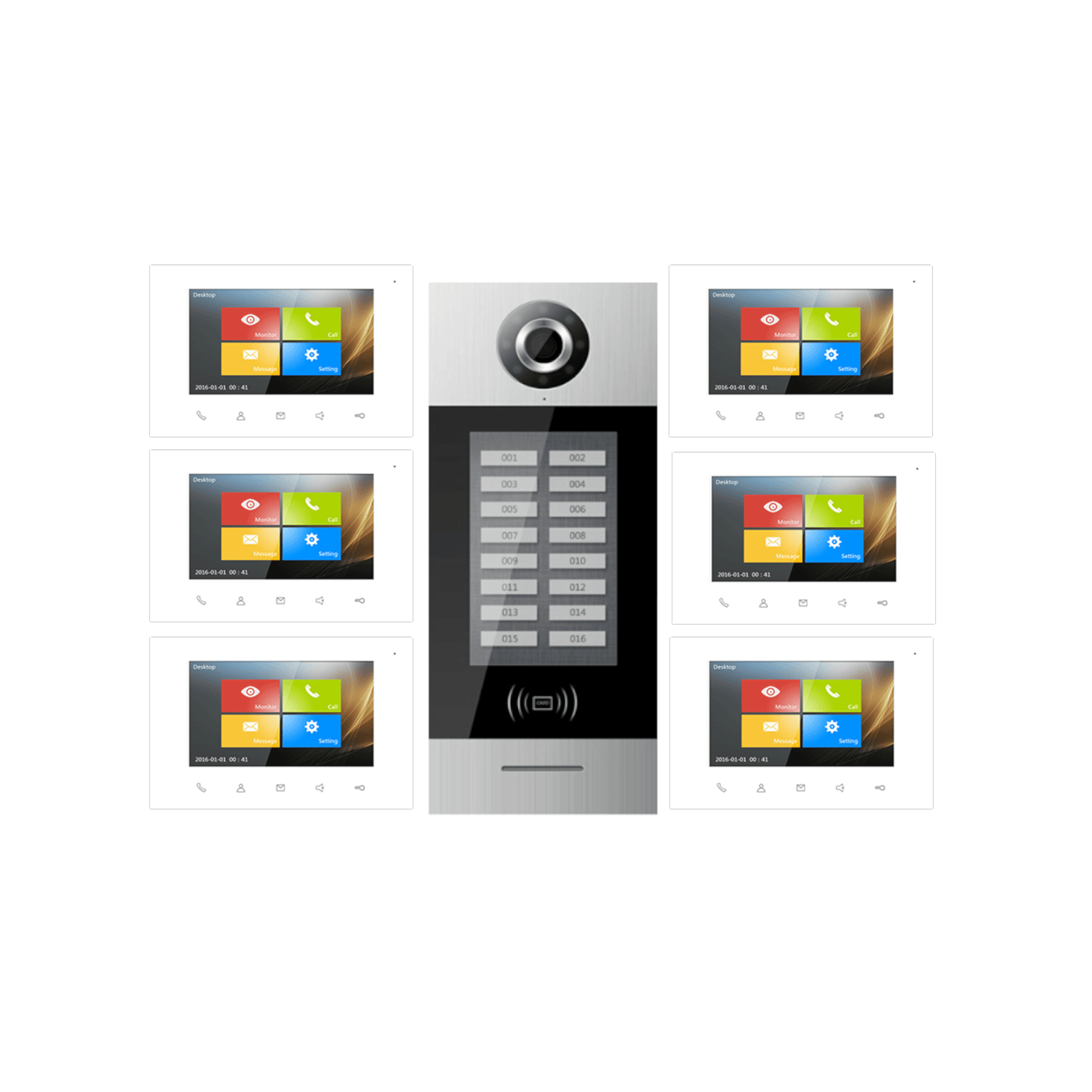

Included Items & Accessories

• • 1 2W-OS02 Door camera
  • 6 2W-IS01 Touch screen monitor
  • 2 T-VD 4-port Indoor monitor video distributors
  • 1 Main power supply [T-PS01-C – 30V Power Supply]
  • 2 Test Key-fobs
  • Instructions & Manuals
  • Mounting Accessories

Manufacturer Warranty

• • 1 Year System & Harware Limited Warranty
