5-Megapixel Full-Color 4-in-1 Dome Camera

5-Megapixel Full-Color 4-in-1 Dome Camera

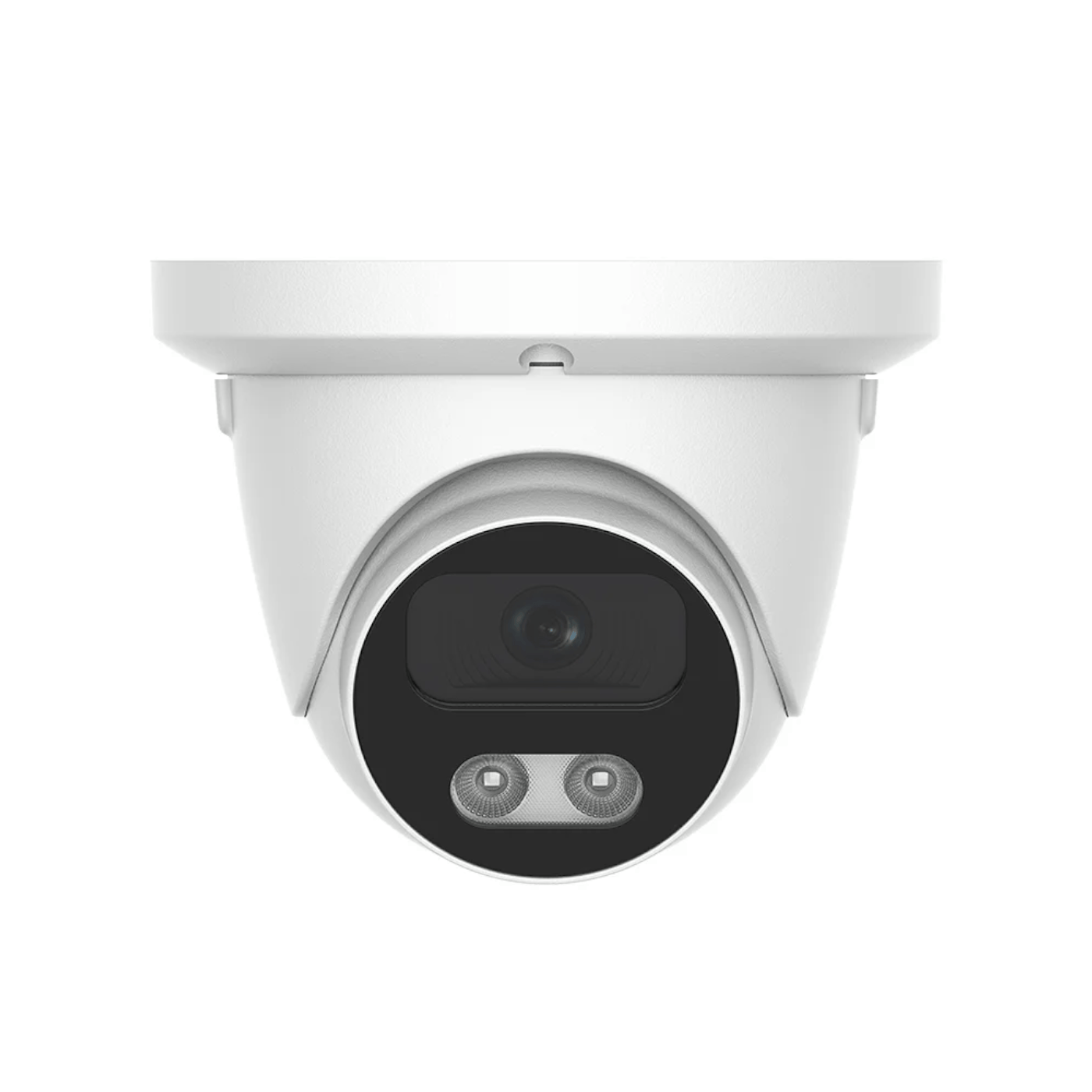

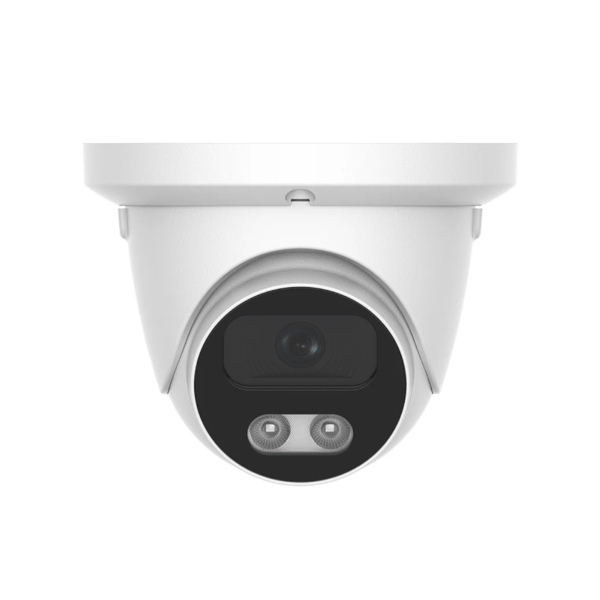

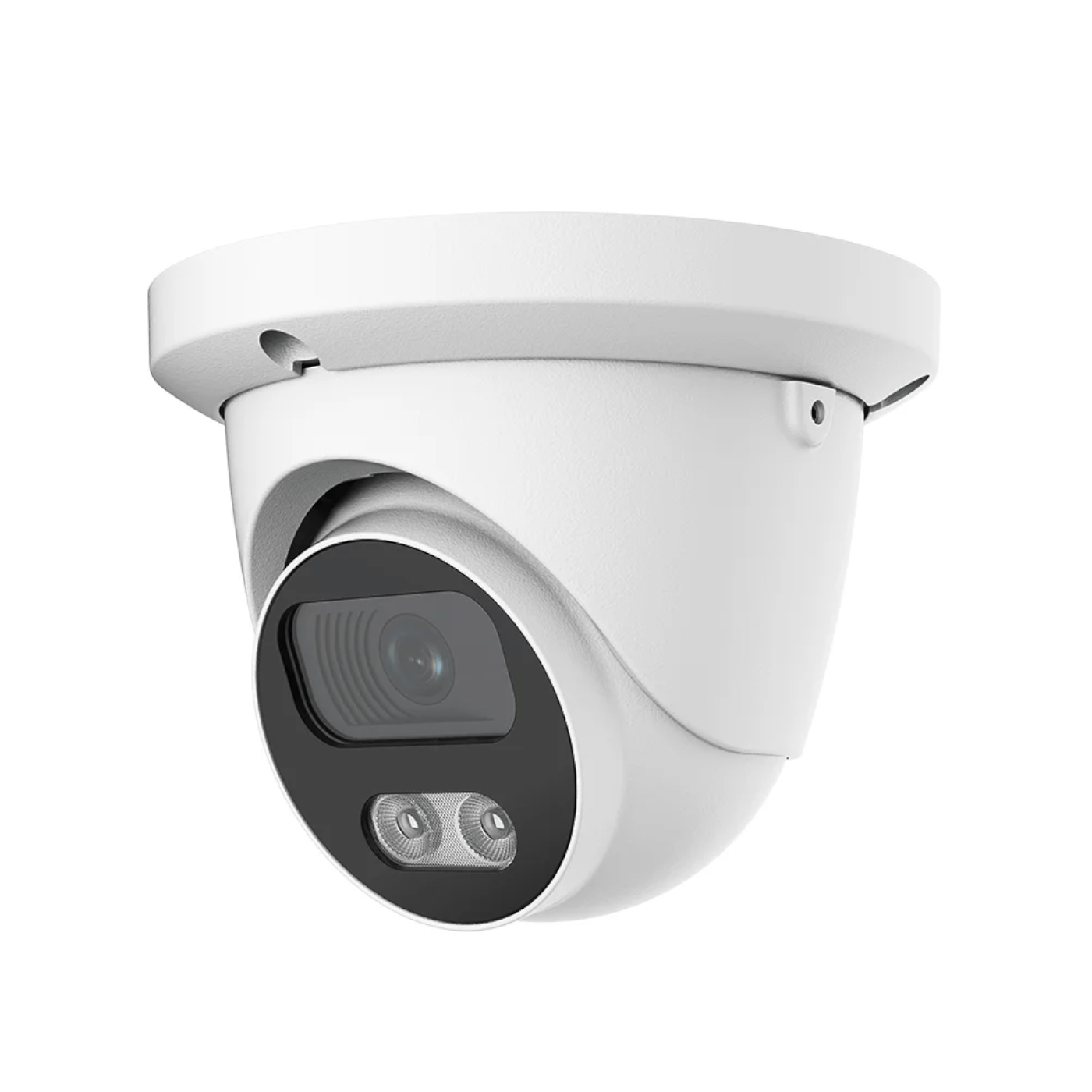

The CST HT-D5SDFH36-FC 5-Megapixel Full-Color 4-in-1 Dome Camera is a high-resolution surveillance camera designed for versatile security applications.

Features Solid LED: double3015U X 2, with Warm white (4000K), up to 82-feet

Ideal for residential, commercial, and industrial security setups, offering high-definition full-color footage with flexible installation options. Compatible with most AHD, TVI, CVI, CVBS Analog HD Digital Video Recorders.

Key Features

• • Resolution: 5MP (2592 × 1944 pixels) for clear and detailed images.
  • Full-Color Night Vision: Equipped with warm LEDs and advanced low-light sensors to capture color images even in dark environments.
  • 4-in-1 Technology: Supports multiple video output formats (TVI, AHD, CVI, CVBS), making it compatible with a wide range of DVRs and security systems.
  • On-Screen Menu: Adjust camera programming menu via Digital Video Recorder

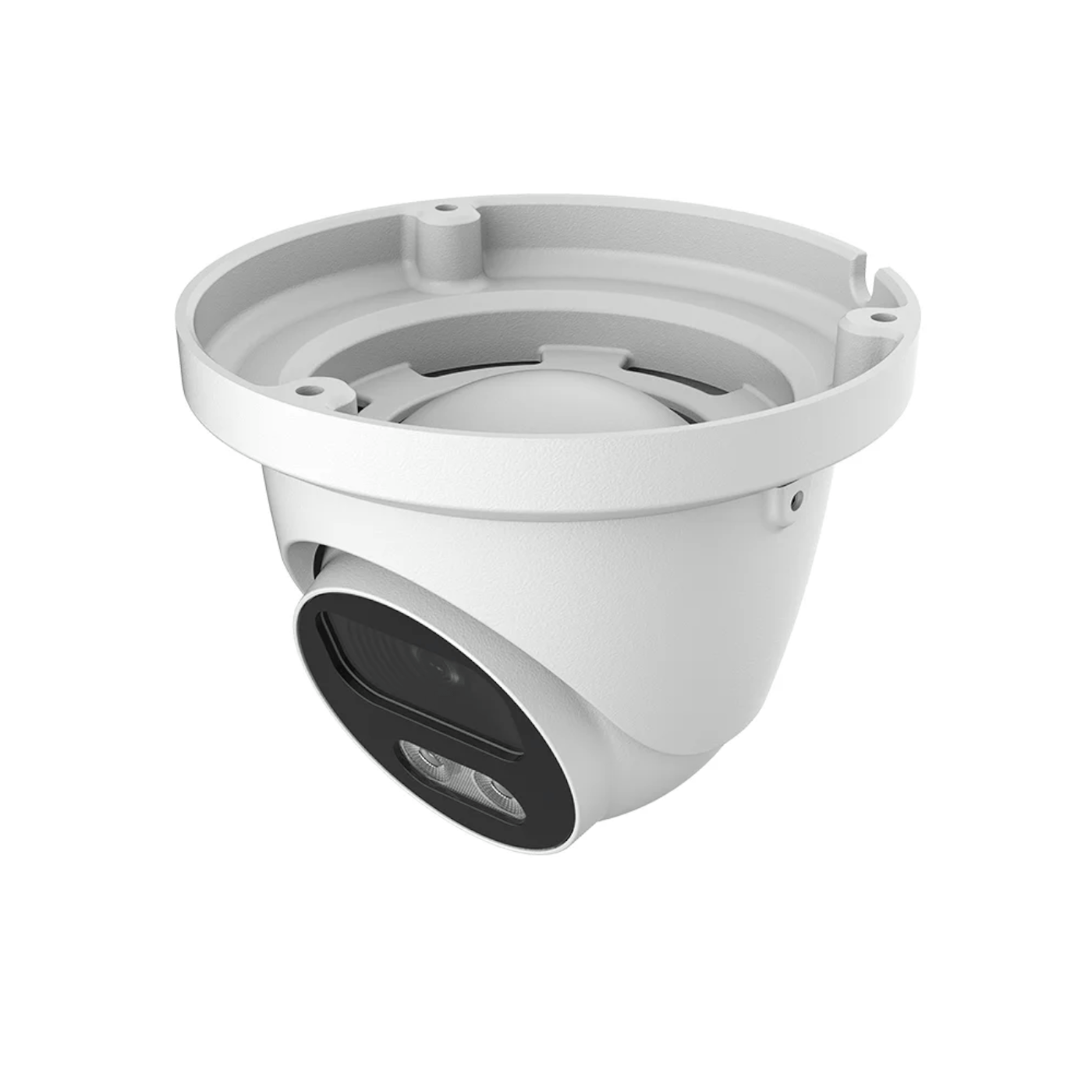

  • Dome Design: Compact structure with rigid plastic housing for indoor and outdoor use.
  • Wide Dynamic Range (WDR): Enhances image clarity in high-contrast lighting conditions.
  • IR Cut Filter: Automatically switches between day and night mode for optimal image quality.
  • Weatherproof Housing: IP66/IP67-rated for durability against harsh weather conditions.
  • Lens Options: 2.8mm Fixed for wide-angle monitoring needs.

Camera Specifications

• • • • Image Sensor: 1/3″ CMOS sensor
      • Image Resolution: 5 Mega Pixel
      • Effective Pixels: 2704 (H) x 1950 (V)
      • Video Frame Rate: AHD/TVI: 5M@20fps/12.5fps, 4M@30fps25fps, 2M@30fps/25fps; CVI:
        4M@30fps, 2M@30fps/25fps
      • Video Output: 1 channel, HDCVI / HDTVI/AHD/CVBS optional
      • Lowest Illumination: 0.02Lux@（F1.2,AGC ON）, 0 Lux with IR
      • Electronic Shutter: Auto, 1/50s~1/60,000s
      • IR-Cut Control: Support
      • OSD Menu: Support, coaxial cable control via DVR directly (UTC)
      • Video System: PAL/NTSC
      • Day/Night: Ext / Color / B/W
      • IR LED: 2pcs
      • IR Distance: Up to 80-feet
      • Lens: 2.8mm
      • Power Supply: DC12V±10%
      • Power Consuption: < 8W
      • Size: Width = 4.3 X 3.5 inches

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 1 HT-D5SDFH36-FC Camera
  • Mounting screws
  • Manual & installation instructions

Manufacturer Warranty

• • 2 Year System & Harware Limited Warranty
