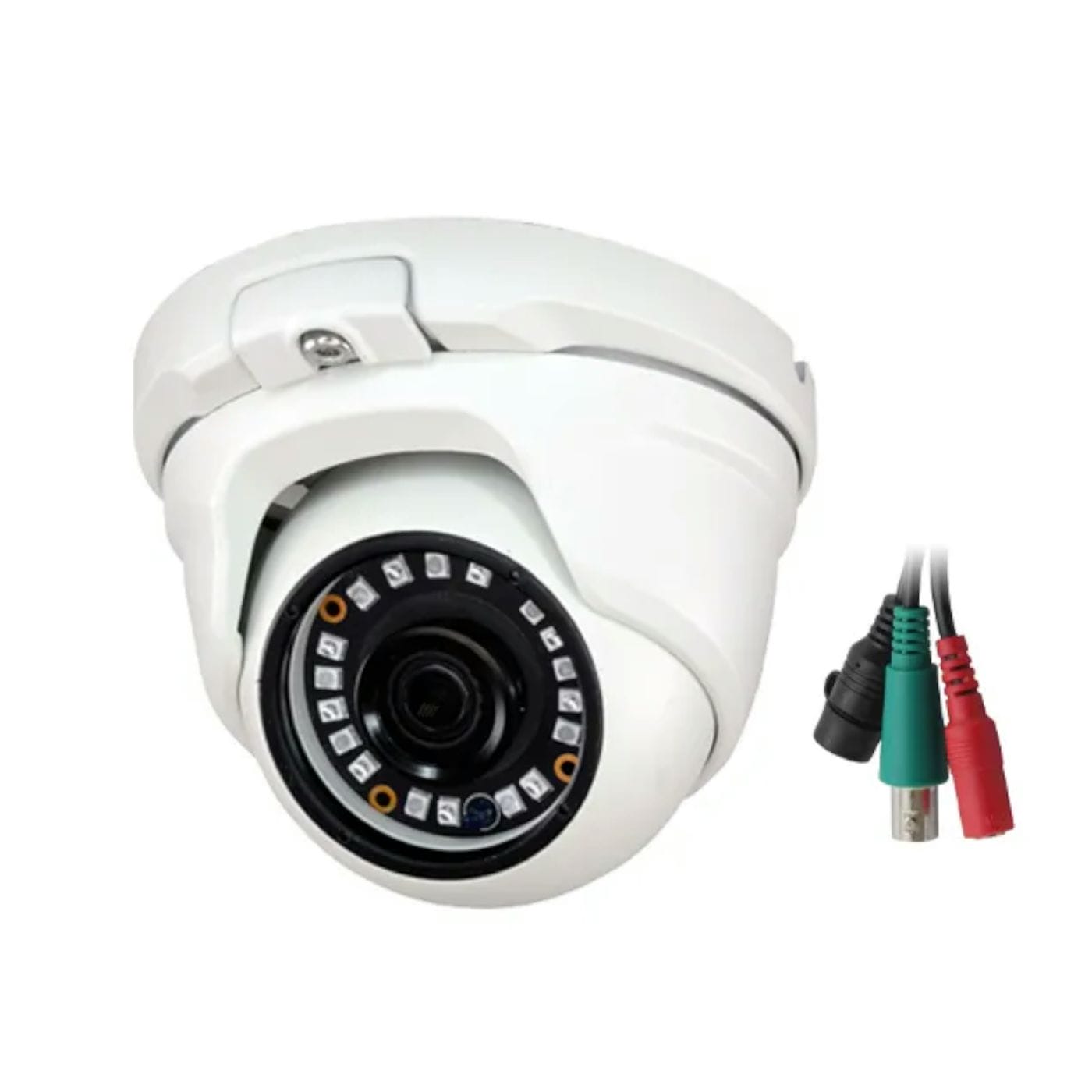

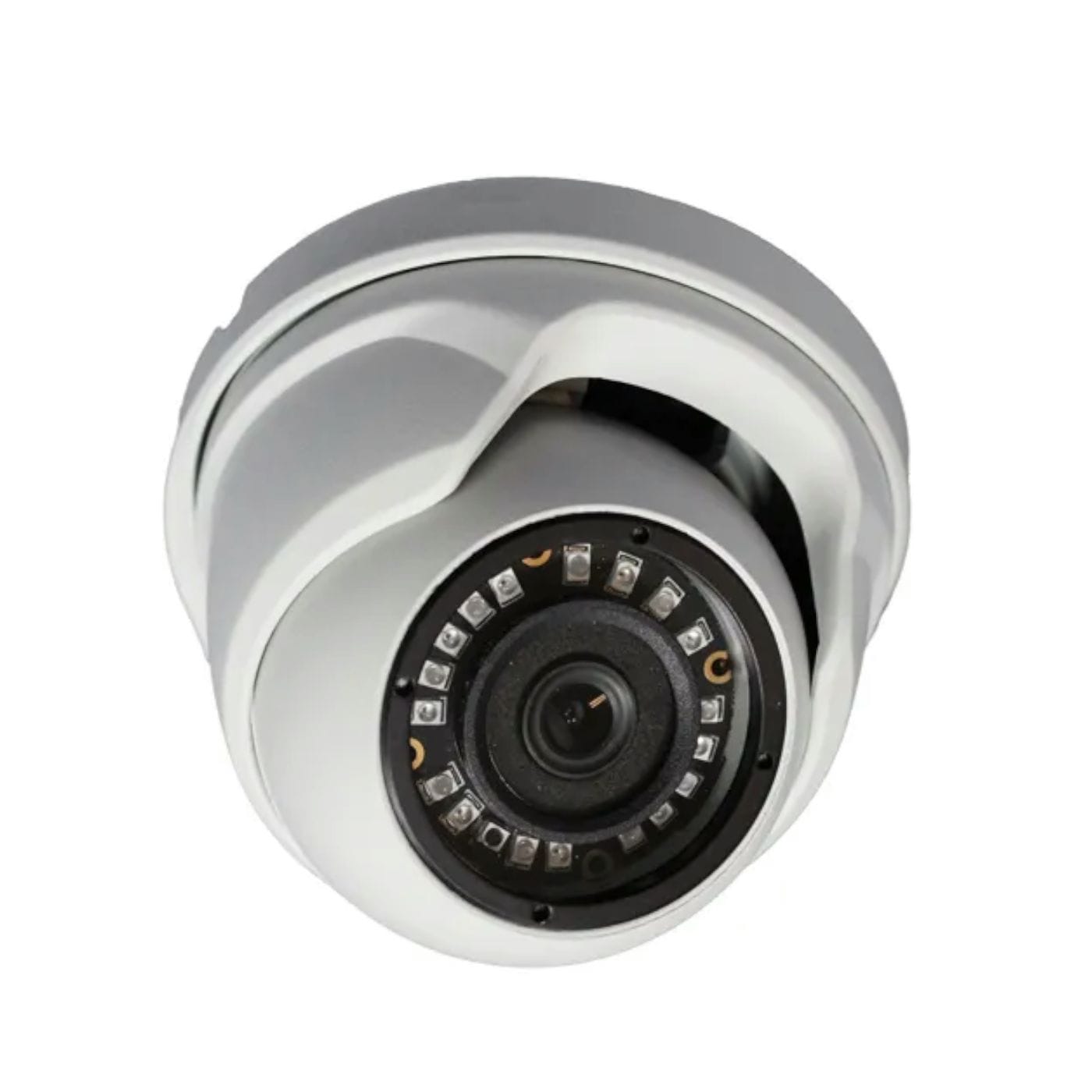

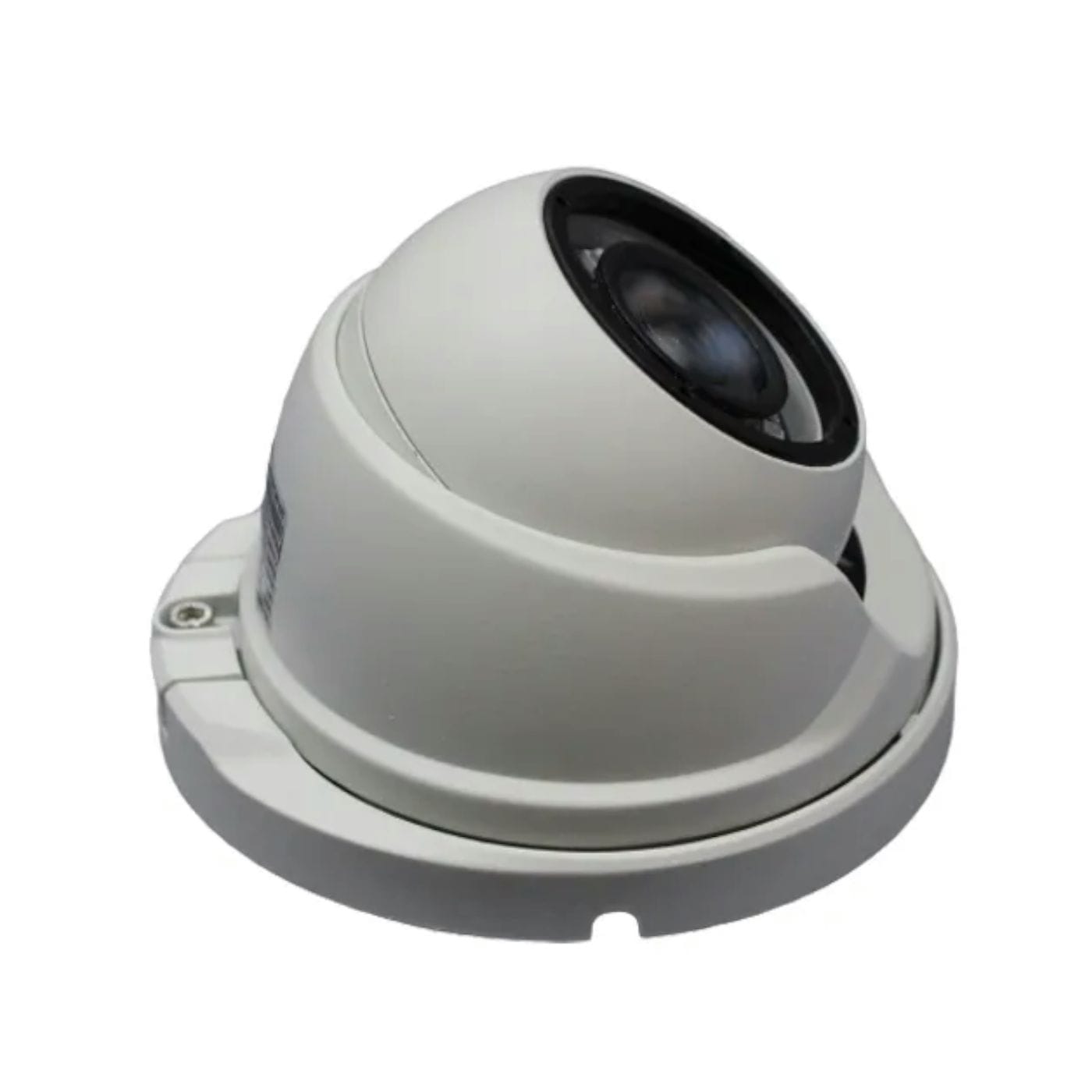

1/2.8″ SONY Starvis 5MP Analog HD Dome Camera

1/2.8″ SONY Starvis 5MP Analog HD Dome Camera

The HT-D5BAFPE28 1/2.8″ SONY Starvis 5MP Analog HD Dome Camera is a high-quality surveillance camera designed for security applications.

Features AHD/TVI 20 fps@2560×1944P, CVI 30 fps@2560×1440P, adjustable Frame Rate

Ideal for most indoors & outdoors commercial applications.

Key Features

• • Image Sensor: 1/2.8″ SONY Starvis CMOS sensor
  • Resolution: 5 Megapixels (MP) for high-definition video
  • Technology: Analog HD (AHD, TVI, CVI, CVBS) – compatible with various DVRs
  • Lens: Fixed 2.8mm focal lens
  • Low Light Performance: STARVIS technology enhances night vision and low-light sensitivity
  • Infrared (IR) Night Vision: Up to 30-50 meters range
  • Wide Dynamic Range (WDR): Enhances image clarity in high-contrast lighting
  • Dome Design: Vandal-resistant and suitable for indoor/outdoor use
  • Weatherproof Rating: Rated IP67, ensuring protection against dust and water
  • 3D Noise Reduction (3DNR): Reduces image noise for better clarity in low-light conditions
  • Smart Features: Day/Night auto switch

Applications

• • Retail stores
  • Offices and commercial spaces
  • Parking lots and garages
  • Schools and campuses
  • Residential security

Camera Specifications

• • Image Sensor: 1/3″ CMOS sensor
  • Image Resolution: 5 Mega Pixel
  • Effective Pixels: 2704 (H) x 1950 (V)
  • Video Frame Rate: AHD/TVI: 5M@20fps/12.5fps, 4M@30fps25fps, 2M@30fps/25fps; CVI:
    4M@30fps, 2M@30fps/25fps
  • Video Output: 1 channel, HDCVI / HDTVI/AHD/CVBS optional
  • Lowest Illumination: 0.02Lux@（F1.2,AGC ON）, 0 Lux with IR
  • Electronic Shutter: Auto, 1/50s~1/60,000s
  • IR-Cut Control: Support
  • OSD Menu: Support, coaxial cable control via DVR directly (UTC)
  • Video System: PAL/NTSC
  • Day/Night: Ext / Color / B/W
  • IR LED: 2pcs
  • IR Distance: Up to 80-feet
  • Lens: 2.8mm
  • Power Supply: DC12V±10%
  • Power Consuption: < 8W
  • Size: Width = 4.3 X 3.5 inches

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 1 HT-D5BAFPE28 Camera
  • Mounting screws
  • Manual & installation instructions

Manufacturer Warranty

• • 2 Year System & Harware Limited Warranty
