5MP TVI Dome Camera

5MP TVI Dome Camera

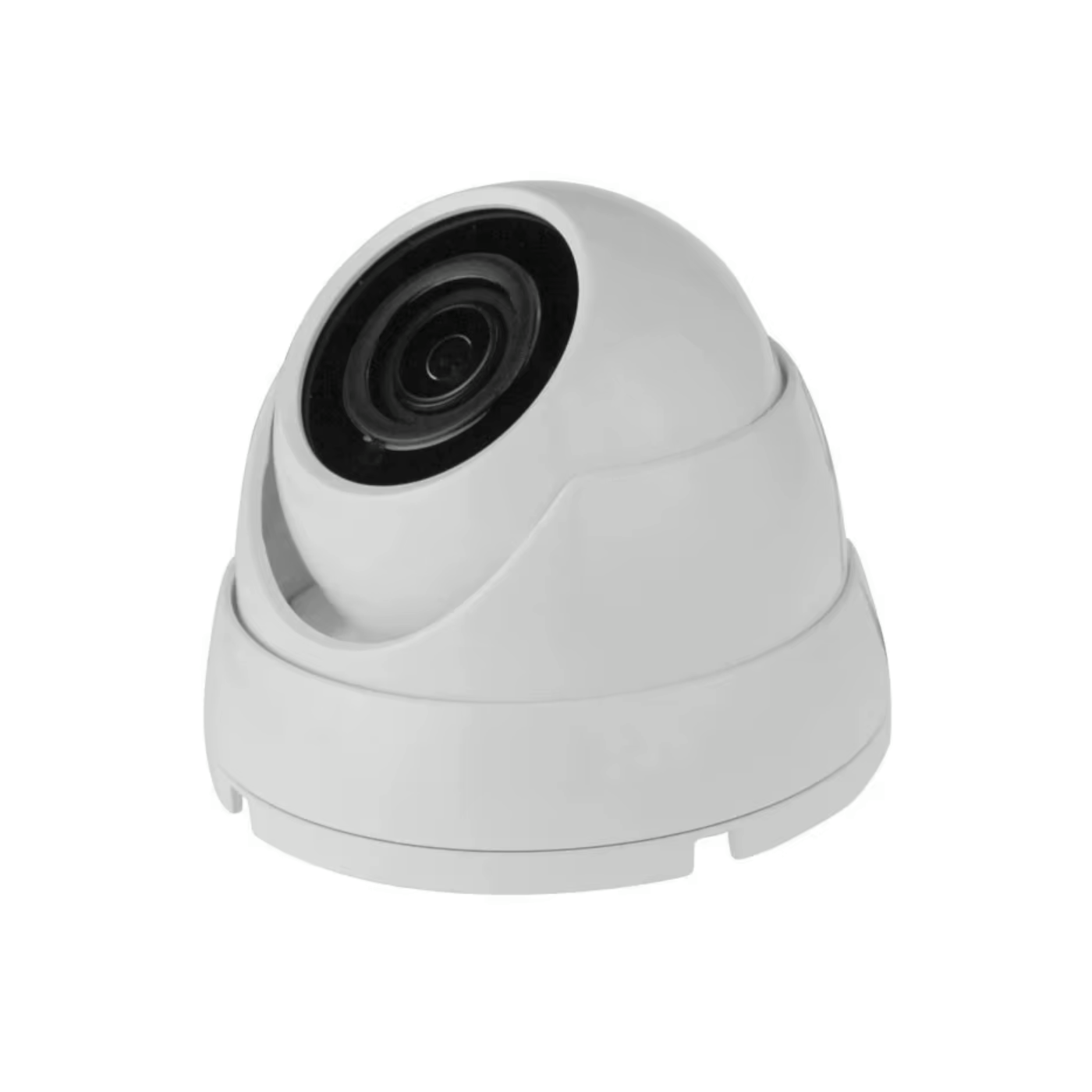

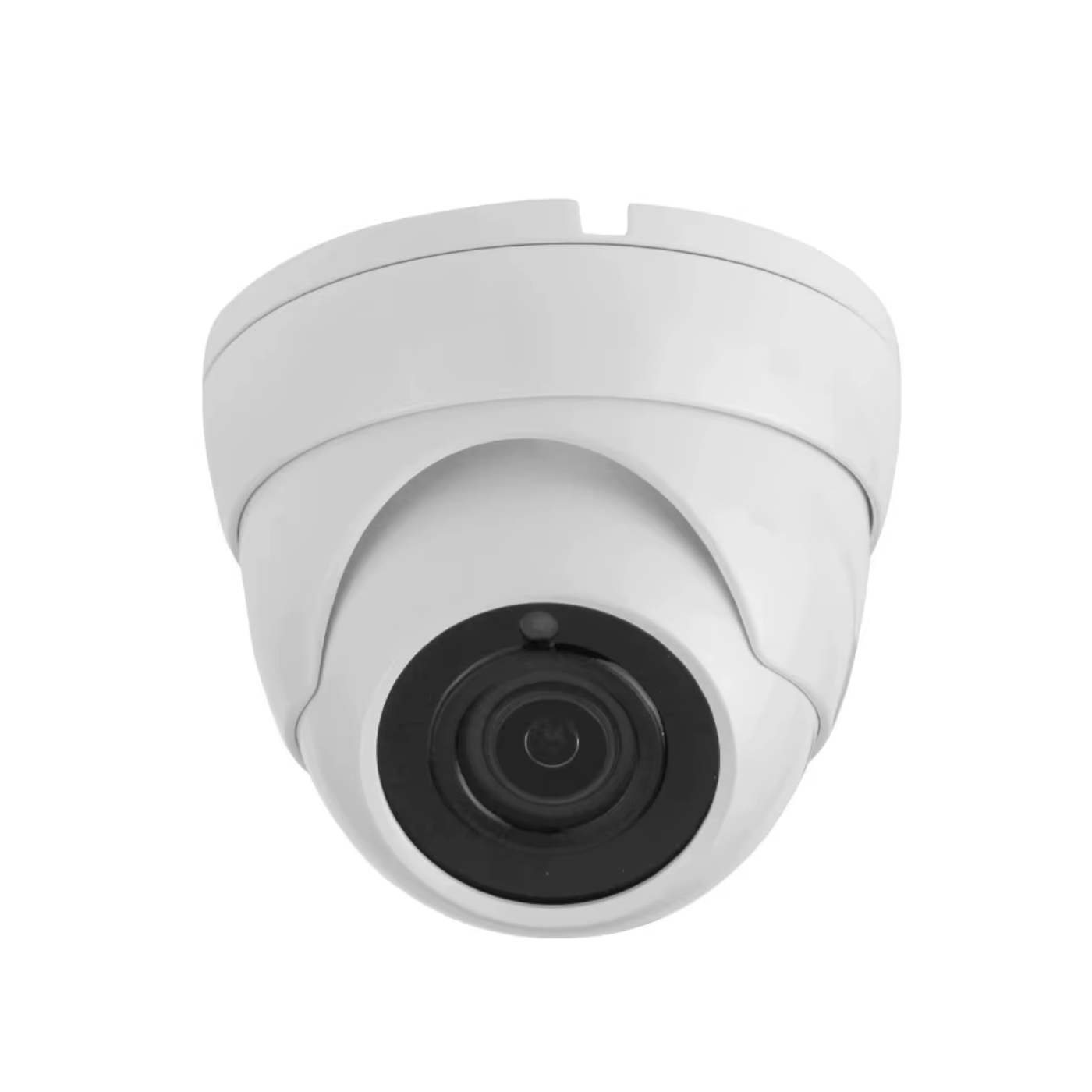

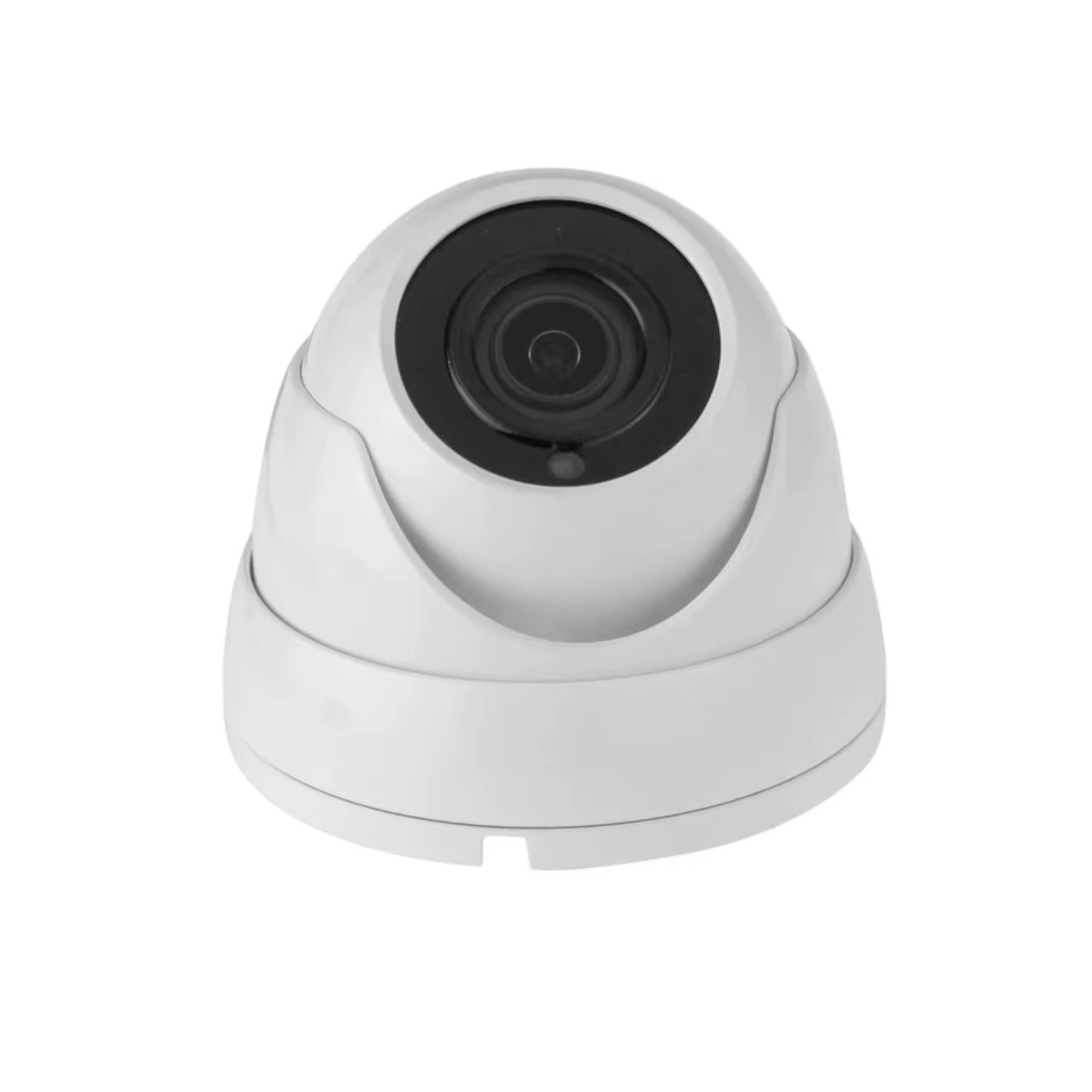

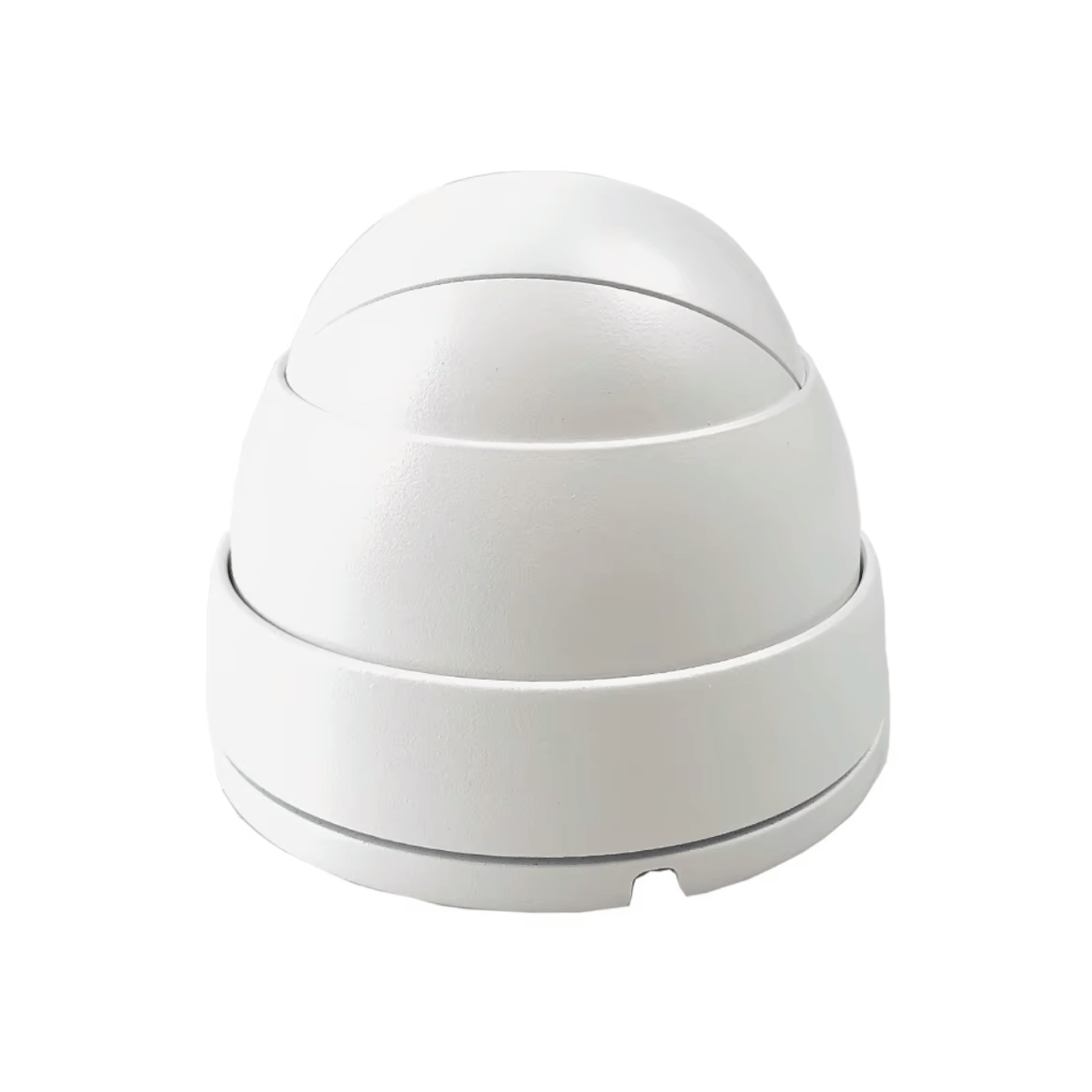

The HT-D5BAFPE28 5MP TVI Dome Camera with IR-CUT, DWDR, DNR, UTC, and OSD is a high-resolution surveillance camera designed for clear and efficient monitoring in various lighting conditions.

Features IR-CUT, DWDR, DNR, UTC, and OSD Menu Via DVR

Ideal for most indoors & outdoors commercial applications.

Key Features

• • 5MP Resolution – Provides high-definition video (2560 × 1944 pixels), ensuring detailed image quality for security applications.
  • IR-CUT Filter – Automatically switches between day and night modes, improving color accuracy in daylight and enhancing infrared night vision in low-light conditions.
  • DWDR (Digital Wide Dynamic Range) – Enhances image quality by balancing dark and bright areas, making it ideal for environments with varying lighting conditions.
  • DNR (Digital Noise Reduction) – Reduces noise in low-light footage, resulting in clearer images with minimal distortion.
  • UTC (Up-the-Coax Control) – Allows remote access to camera settings via the DVR, simplifying installation and configuration.
  • OSD (On-Screen Display Menu) – Enables users to adjust camera settings directly through an on-screen menu, providing flexibility for fine-tuning image quality.
  • TVI Technology – Supports HD-TVI (High-Definition Transport Video Interface), ensuring high-quality video transmission over coaxial cables without signal loss.
  • Dome Design – Compact and discreet, suitable for both indoor and outdoor use, often featuring vandal-resistant and weatherproof housing.

Applications

• • Retail stores
  • Offices and commercial spaces
  • Parking lots and garages
  • Schools and campuses
  • Residential security

Camera Specifications

• • Image Sensor: 1/3″ CMOS sensor
  • Image Resolution: 5 Mega Pixel
  • Effective Pixels: 2704 (H) x 1950 (V)
  • Video Frame Rate: TVI: 5M@20fps/12.5fps, 4M@30fps25fps, 2M@30fps/25fps
  • Video Output: 1 channel, HDTVI
  • Lowest Illumination: 0.02Lux@（F1.2,AGC ON）, 0 Lux with IR
  • Electronic Shutter: Auto, 1/50s~1/60,000s
  • IR-Cut Control: Support
  • OSD Menu: Support, coaxial cable control via DVR directly (UTC)
  • Video System: PAL/NTSC
  • Day/Night: Ext / Color / B/W
  • IR LED: 2pcs
  • IR Distance: Up to 50-feet
  • Lens: 2.8mm
  • Power Supply: DC12V±10%
  • Power Consuption: < 8W
  • Size: Width = 4.3 X 3.5 inches

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 1 HT-D5BAFPE28 Camera
  • Mounting screws
  • Manual & installation instructions

Manufacturer Warranty

• • 2 Year System & Harware Limited Warranty
