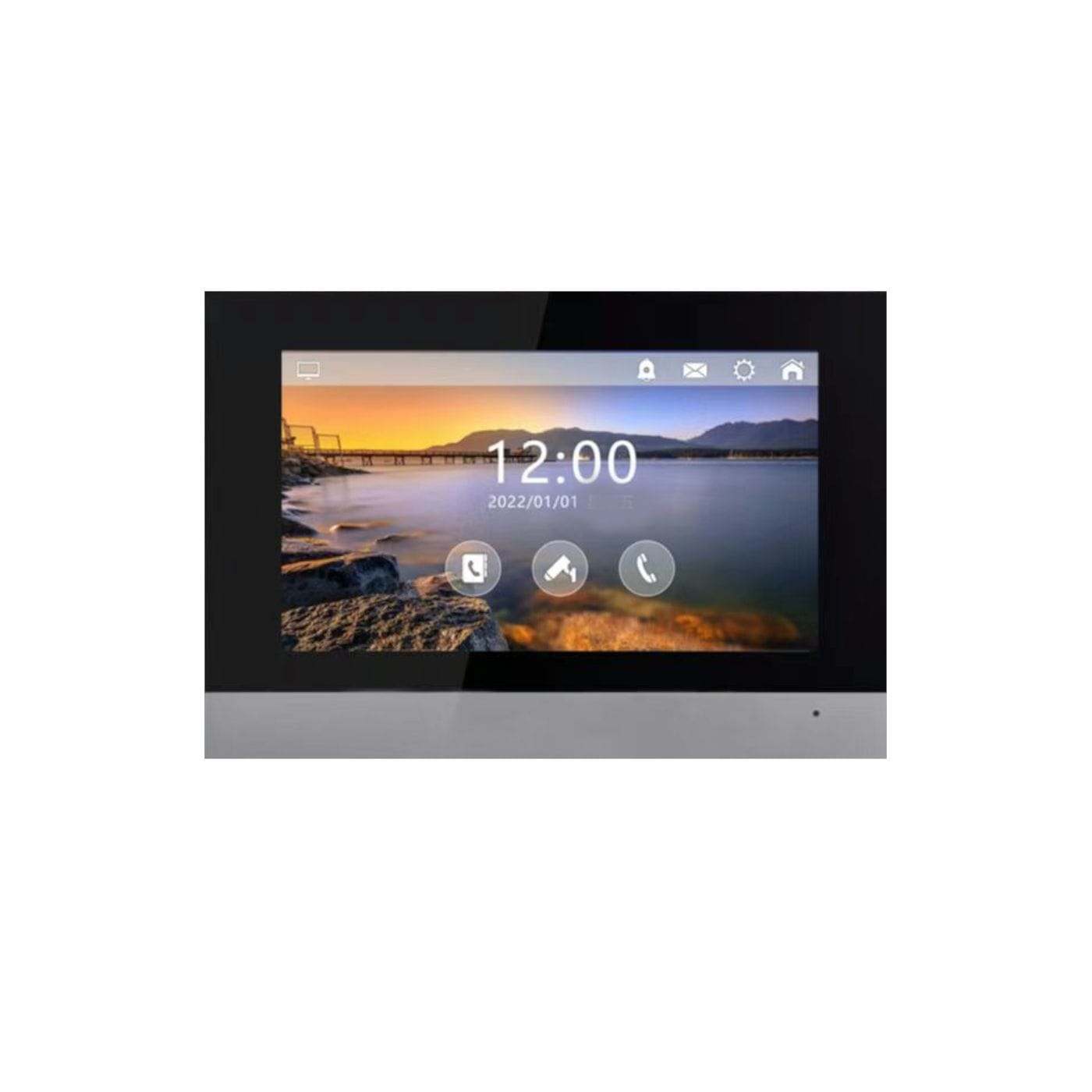

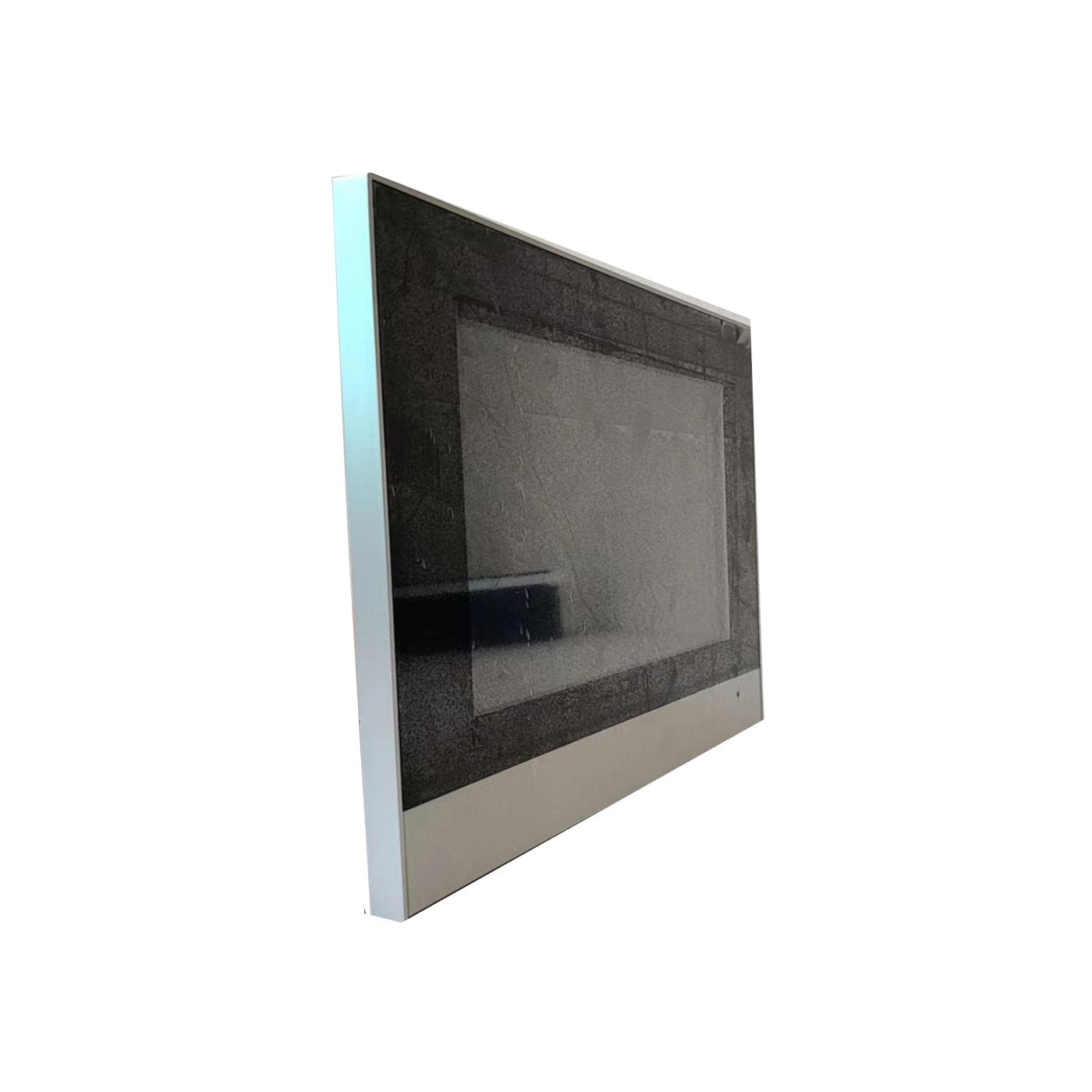

ZDL-IPWX7 Lan-Wi-Fi Intercom Smart Monitor

ZDL-IPWX7 Lan-Wi-Fi Intercom Smart Monitor

The ZDL-IPWX7 Lan-Wi-Fi Intercom Smart Monitor is a 7-inch touch-screen device designed to enhance communication and security within homes, offices, and other properties. It supports both LAN and Wi-Fi connectivity, offering flexibility in installation and integration with existing networks.

Adopt Two-Way Audio and Video Communication: Enables real-time conversations with visitors at the door

You can add up to 9999 of this ZDL-IPWS7W Smart IP based Monitors to create a perfect smart communication group. Compatible with multiple intercom stations, and security cameras. Ideal for homes, apartments, villas, and office buildings, improving security and convenience by allowing users to manage visitors efficiently.

Key Features

• • Two-Way Audio: Enables real-time conversations with visitors at the door and inter-room intercom functionality, enhancing security and convenience.
  • Group Communication Support: Allows connection of multiple users in a network, facilitating group discussions, conference calls, or security monitoring.
  • High-Definition Display: Equipped with a capacitive touchscreen for clear visuals and user-friendly controls.
  • IP Camera Support: Compatible with IP cameras from brands like HikVision, ONVIF, and Dahua, allowing for comprehensive video surveillance integration.
  • Expandable System: Capable of integrating with additional intercom units, doorbells, or security cameras to scale the system as needed.

Ideal for

• • Homes
  • Offices
  • Schools
  • Healthcare
  • Group homes
  • Warehouses
  • Elderly homes

Device Specification

• • Device Screen Size: 7-Inch
  • Screen Operation: Capacitive touch screen
  • Camera Veiwing Angle: 150-Degree
  • Screen Resolution: 1024 X 600
  • LAN Connection: RJ45-Female
  • Network Support: WiFi / LAN [Ethernet]
  • Power Source: 12VDC Or POE [48V]
  • Operating Current: <400mA
  • Power Consumption: <5-Watts
  • Panel Dimension: Width-9.5 X Height-6.5 X Thickness-0.9 Inches
  • Monitor Mounting Style: Flush Mounting [Recommended]
  • Compatible Door Cameras: ZDL-IPW2 | ZDL-IPW5LW | ZDL-IPW100W | ZDL-IPW80W | ZDL-IPW1000 | ZDL-IPW5000 | ZDL-7 | ZDL-700 | ZDL-7500 | ZDL-8500.
  • IP Camera Support: HikVision | ONVIF | Dahua
  • Weight: 2 Pounds

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 1 ZDL-IPWX7 7-inch Smart Monitor
  • 1 2-Pin Power lead
  • 1 5-Wire Sensors & Detectors connector
  • Mounting Accessories
  • Instructions & Manuals

Manufacturer Warranty

• • 1 Year System & Harware Limited Warranty
