ZDL-IPW21X7 Smart Home Intercom

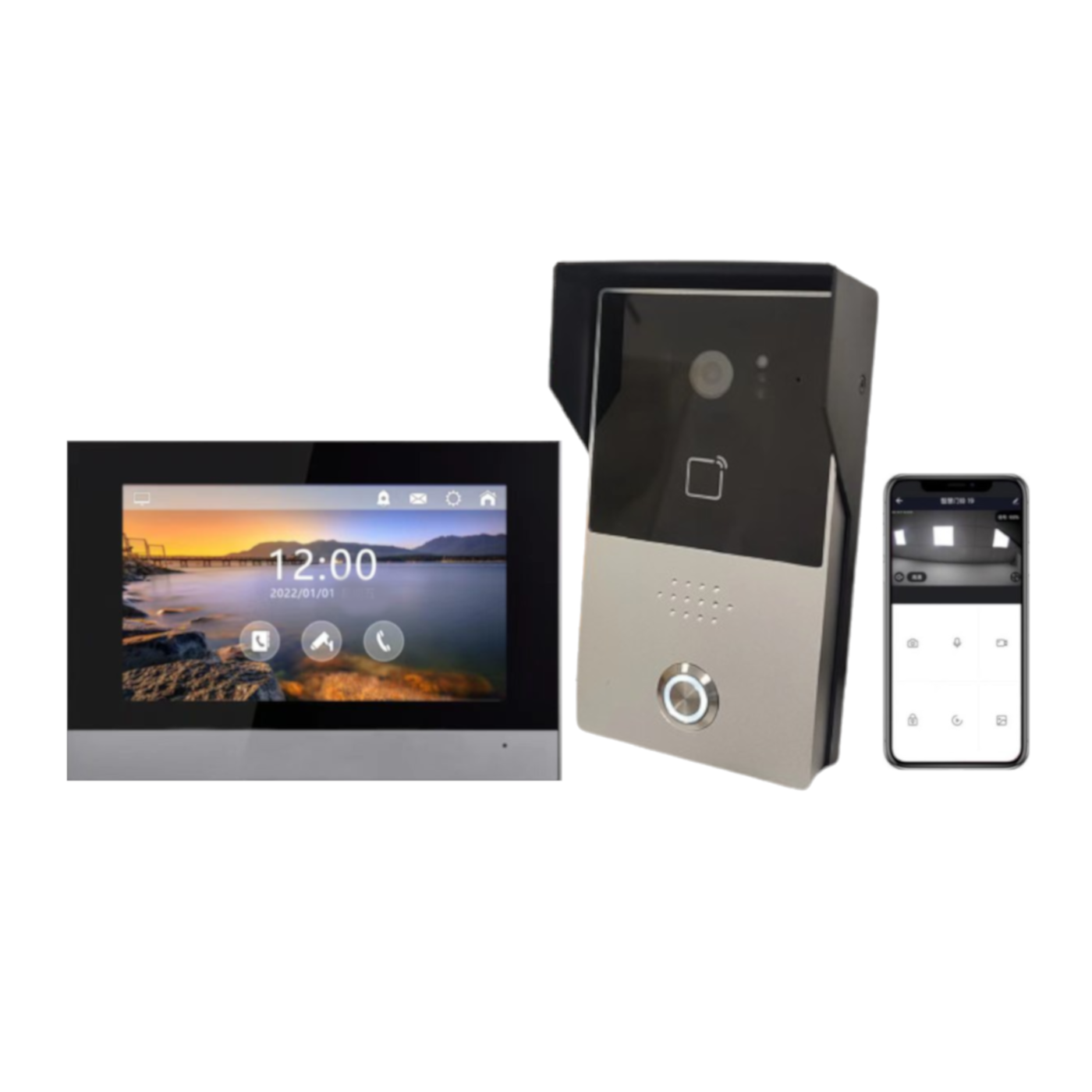

ZDL-IPW21X7 Smart Home Intercom System – 2MP Door Camera + 7″ Touch Screen Indoor Monitor, Wired Cat5e/6 or Wi-Fi, RFID & Smartphone Access

The ZDL-IPW21X7 Smart Home Intercom System is a next-generation wired and optional Wi-Fi-enabled communication and security solution designed for modern homes, offices, factories, and daycare centers.

This system features the ZDL-IPW2 weatherproof outdoor door camera with a 2MP HD camera, 150° wide-angle lens, two-way audio/video communication, and 13.56MHz RFID card access. Powered by PoE or 12VDC, the entry station supports direct press call button operation, integrates with electronic door strikes, magnetic locks, garage doors, and gate controllers, and is compatible with request-to-exit buttons and sensors.

Inside, the ZDL-IPWX7 smart indoor monitor provides a 7-inch capacitive touch screen with a 1024 × 600 resolution, powered via PoE or 12VDC, and supports room-to-room communication between up to 6 monitors. Users can call between rooms, communicate directly with the door station, or perform group calls from door-to-monitor. The system supports up to 999 monitors (6 per group) and 999 door cameras, making it highly scalable.

Smart Home Intercom – 2MP HD Video Door Camera with 7-Inch Touch Screen Monitor, RFID Access, Smartphone Control & Smart Home Integration

The system integrates seamlessly with smartphones via the free sharable app, enabling remote video/audio calls, door unlocking, push notifications, guest snapshots, motion detection alerts, and cloud storage. It supports guest video recording, missed call history, customizable ringtones, adjustable volume, and personalized contact lists.

Designed for smart living, the ZDL-IPW21X7 can integrate up to 16 external 8MP IP cameras, 4 auxiliary RFID card readers, and various sensors including motion detectors, smoke sensors, water leak sensors, sirens, and door contacts. It also works with ZDL-IPW5LW Touch Screen Door Camera, ZDL-IPW10WC 10″ Monitor, and ZDL-M20 Smart Home Panel for extended control, including music integration.

With its Cat5e/6 cable support, PoE/12V power options, and easy setup, the ZDL-IPW21X7 provides professional-grade communication, monitoring, and access control in a sleek, user-friendly design.

System Features

• • 2MP Outdoor Door Camera (ZDL-IPW2): Weatherproof, hooded, 150° wide-angle, direct press button, RFID card access (13.56MHz).

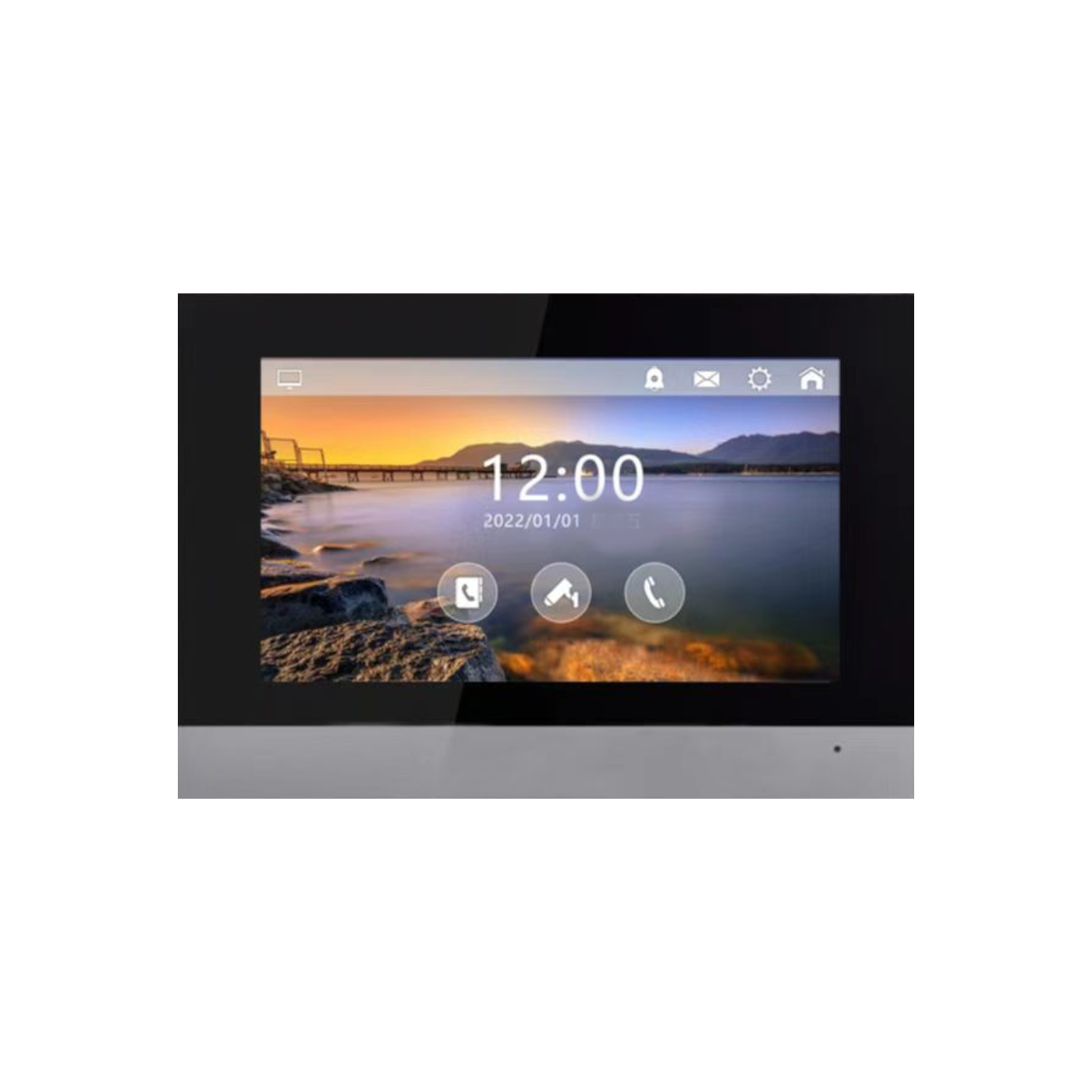

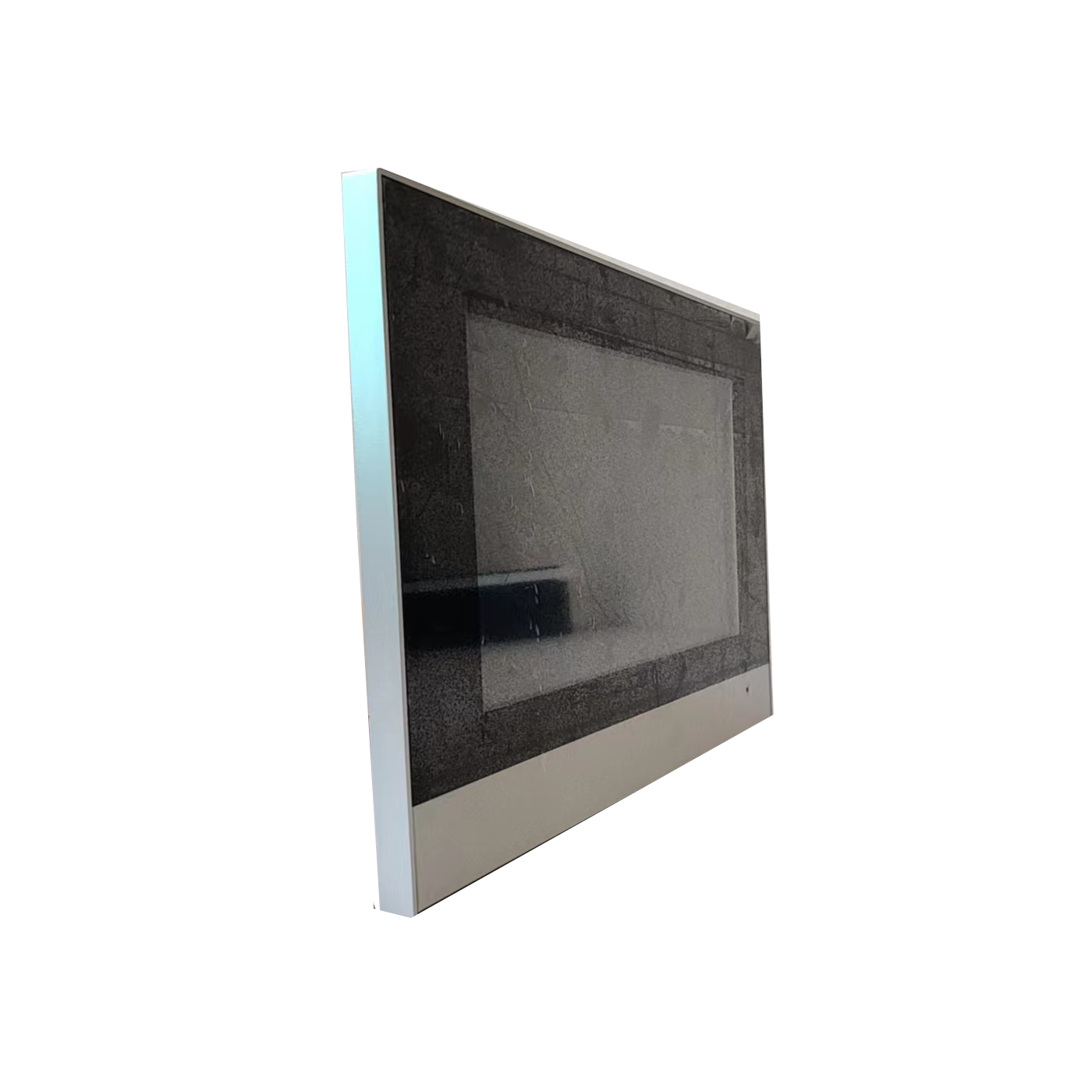

  • 7-Inch Indoor Monitor (ZDL-IPWX7): Capacitive touch screen, 1024 × 600 resolution, PoE/12VDC powered, wall-mountable.
  • Flexible Networking: Supports wired Cat5e/6 installation with optional WiFi connectivity.
  • Multi-Monitor & Multi-Camera: Supports up to 999 indoor monitors (6 per group) and 999 door cameras.
  • Room-to-Room Communication: Intercom calls between indoor monitors, specific room-to-door communication, group calls.
  • Smartphone Integration: Free app for remote answering, unlocking, video monitoring, push notifications, and cloud storage.
  • Smart Access Control: Relay outputs for electronic door strikes, magnetic locks, garage doors, and gate controllers.
  • Guest & Event Recording: Records video, snapshots, missed calls, and visitor history.
  • Customizable Experience: Adjustable ringtones, volume, ring number, and display settings.
  • Sensor Integration: Works with motion sensors, smoke detectors, water leak sensors, sirens, and door contacts.
  • IP Camera Support: Integrates up to 16 × 8MP IP cameras for extended surveillance.
  • External Expansion: Supports up to 4 auxiliary RFID card readers.
  • Scalable System: Works with additional devices such as ZDL-IPW5LW, ZDL-IPW10WC, and ZDL-M20 Smart Home Panel.
  • Durable Build: Rugged weatherproof outdoor camera, lightning protection (4000V), and IP-rated housing.

System Specification

• • ZDL-IPW2 Outdoor Door Camera

    • Resolution: 2MP HD
    • Viewing Angle: 150°
    • Audio/Video: 2-way communication
    • Access Control: 13.56MHz RFID card reader
    • Power Supply: PoE (48V) or 12VDC 1A
    • Consumption: <5W
    • LAN: RJ45, supports WiFi or Ethernet
    • Dimensions: W 3.5″ × H 6.0″ × T 1.5″
    • Build: Hooded, weatherproof

  • ZDL-IPWX7 Indoor Monitor

    • Screen: 7-inch capacitive touch
    • Resolution: 1024 × 600
    • Power Supply: PoE (48V) or 12VDC
    • Consumption: <5W
    • Operating Current: <400mA
    • Dimensions: W 9.5″ × H 6.5″ × T 0.9″
    • Connectivity: RJ45 Ethernet, WiFi optional

  • System Functions

    • Group Support: 999 monitors (6 per group), 999 cameras
    • Storage: MicroSD card slot, cloud storage
    • App Control: iOS/Android, remote video/audio call, unlocking, motion alerts
    • Sensors: Motion, smoke, water leak, siren, door contacts
    • Integration: Supports external IP cameras, RFID readers, and smart panels

  • Environmental & Power

    • Power: 12VDC or PoE (48V)
    • Operating Current: <400mA per unit
    • Consumption: <5W per unit
    • Installation: Cat5e/6 cable, surface/wall mount
    • Applications: Homes, offices, daycare centers, factories, apartment complexes

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 1 ZDL-IPW2 Door camera
  • 1 ZDL-IPWX7 Smart monitor
  • 1 – 12VDC 4Amp System power supply
  • 2 Test Key-fobs
  • Mounting Accessories
  • Instructions & Manuals

Manufacturer Warranty

• • 1 Year System & Hardware Limited Warranty
