Triple Operating Methods Bluetooth Deadbolt Lock

Bluetooth Smart Deadbolt Lock – Triple Access Modes, ANSI Grade 2, Up to 10,000 Records

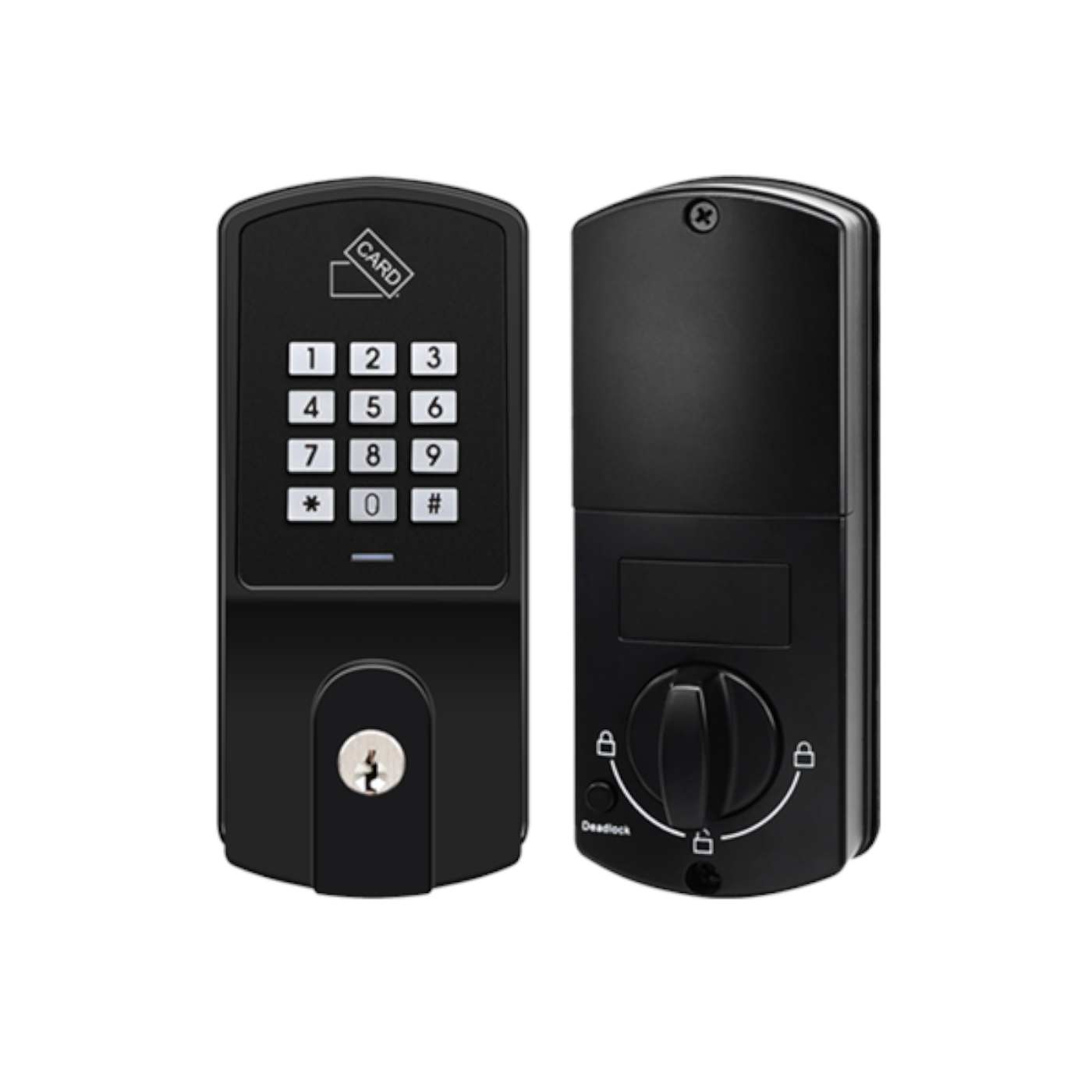

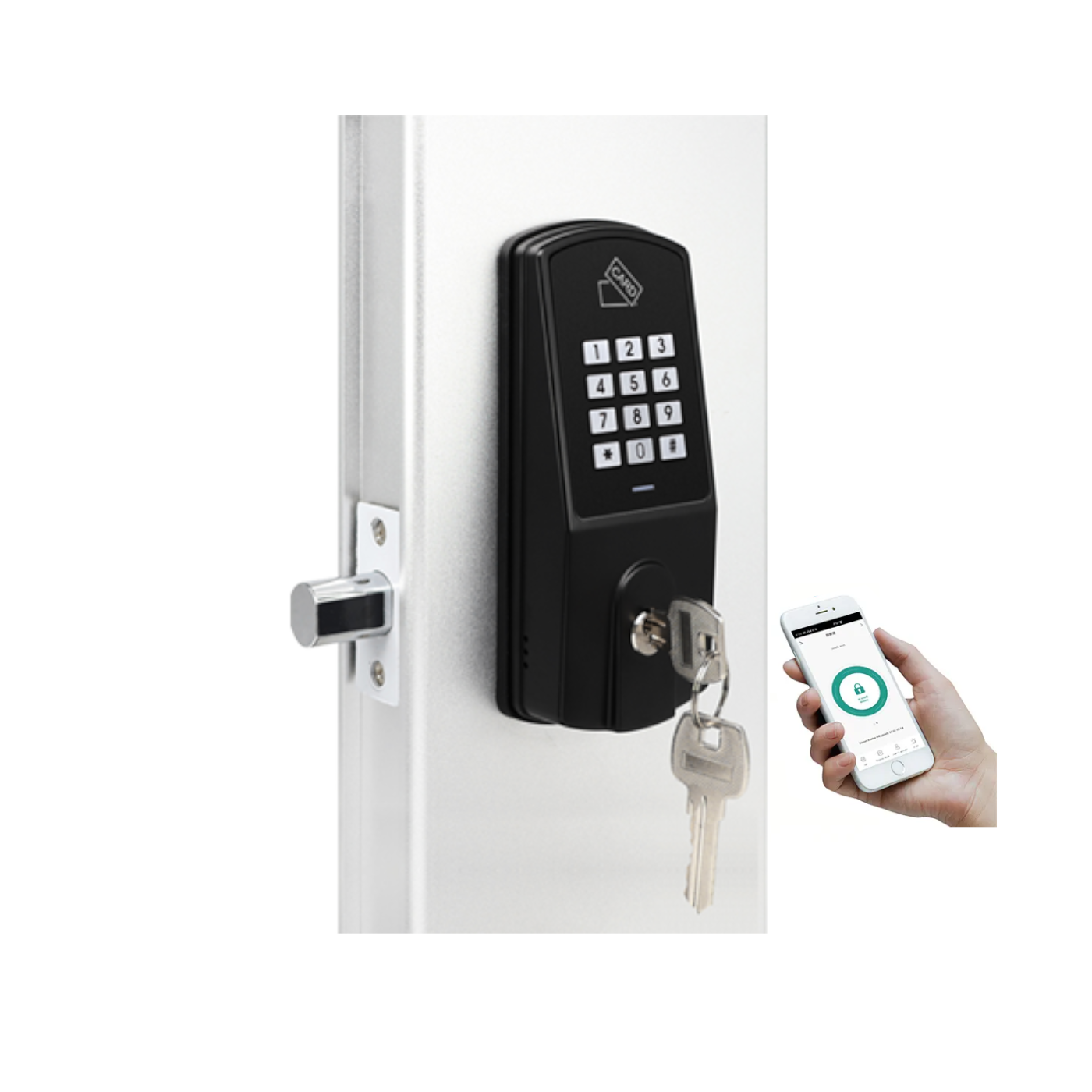

The D201 Triple Operating Methods Bluetooth Deadbolt Lock offers secure and flexible access for residential or light commercial use with support for RFID card, PIN code, mobile app, and mechanical key entry. Designed for easy installation and daily use, the lock features Bluetooth connectivity with optional Wi-Fi for remote access and management.

The lock supports up to 250 users (cards and codes) and 100 mobile app users, with a record capacity of 10,000 access logs, making it ideal for busy properties or shared spaces. Compatible with 13.56MHz MIFARE cards, it also offers PIN codes between 4 to 6 digits, ensuring both convenience and security.

Ideal for Homes, Rental units, Small offices, and Multi-user Environments seeking Smart, Secure, and Easy-to-manage Door Access.

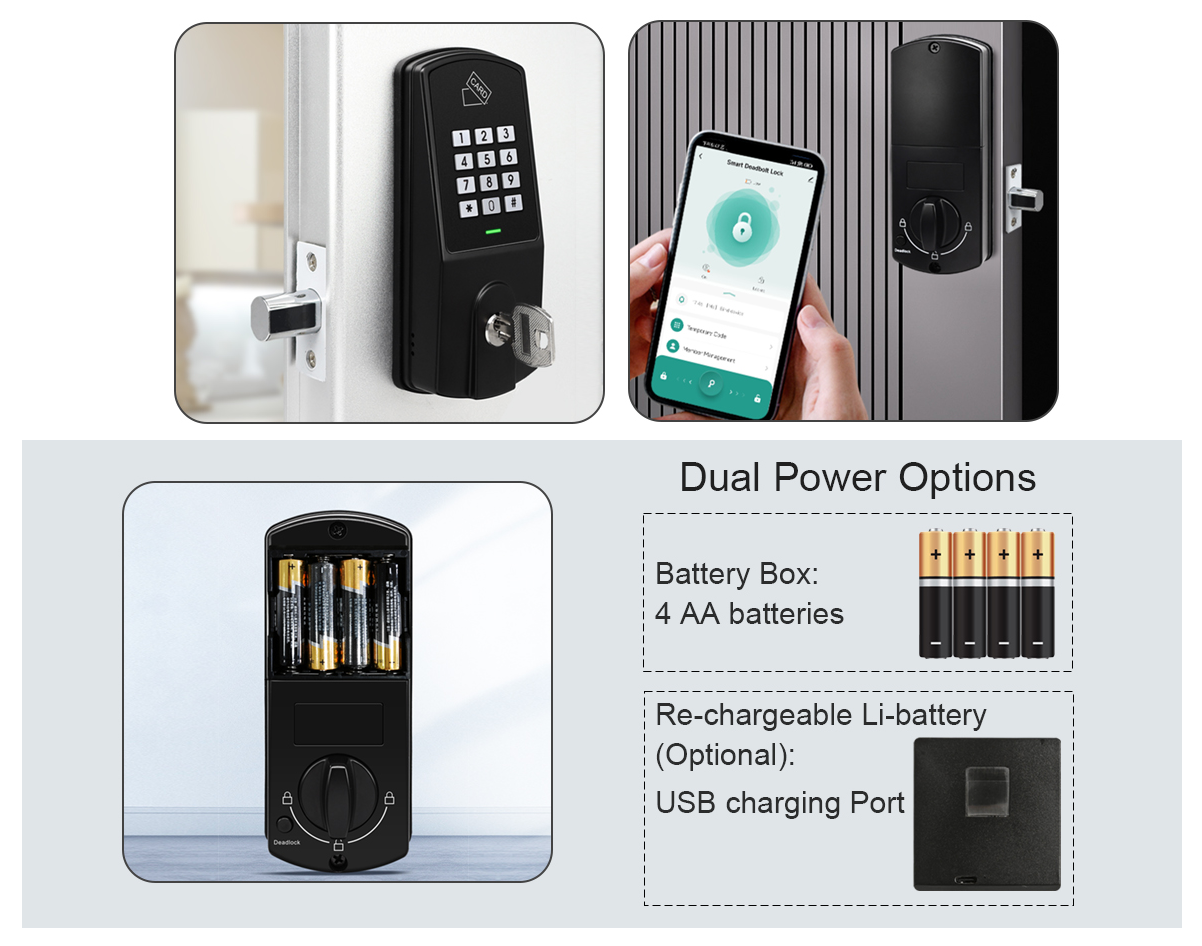

Built with a durable ANSI Grade 2 deadbolt mechanism, this lock provides dependable protection and includes an emergency USB charging port for power backup. Powered by 4 AA batteries, it’s suitable for door thicknesses of 35–50mm and installs on most standard wooden or metal doors.

Lock Features

• • Triple access methods: RFID card, PIN code, mobile app (Bluetooth), plus mechanical key
  • User capacity: 250 (cards and codes), 100 app users
  • Log capacity: Stores up to 10,000 unlock records
  • Card type: 13.56MHz MIFARE
  • Code length: 4 to 6 digits
  • Emergency power: USB charging port for battery backup
  • Power source: 4 AA batteries
  • Certified security: ANSI Grade 2 deadbolt
  • Fits door thickness: 35–50mm
  • Optional Wi-Fi module for remote management (via app)
  • APP: TTLock [FREE]

Device Specification

• • Access Mode: Card, Password, App, Key
  • Password & RFID User Capacity: 255
  • Mobile User Capacity: 100
  • Record Capacity: 100000
  • Card Type: 13.56MHz Mifare card
  • PIN Length: 4 ~ 6 digits
  • Emergency USB Charging Port:  Yes
  • Idle Current: <60uA
  • Working Current: 300mA
  • Battery: 4pcs AA battery
  • Emergency Power Voltage: 4pcs AA battery
  • Working Voltage:  4- 1.5V AA Alkaline battery
  • Working Temperature: -10°C ~ 60°C）
  • Working Humidity: 5~95%RH
  • Door Thickness: 35-50mm
  • Dimension: 8.5 X 9.4 X 3.4 inches

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 1 Door Lock Kit Set [Front/Back Panel, Cylinder, Mortise, Internal Screws]
  • 2 test keyfobs
  • Mounting screws
  • Template & installation instructions

Manufacturer Warranty

• • 2 Year System & Harware Limited Warranty
