Hotel-Motel Room Door Lock

Hotel-Motel Room Door Lock

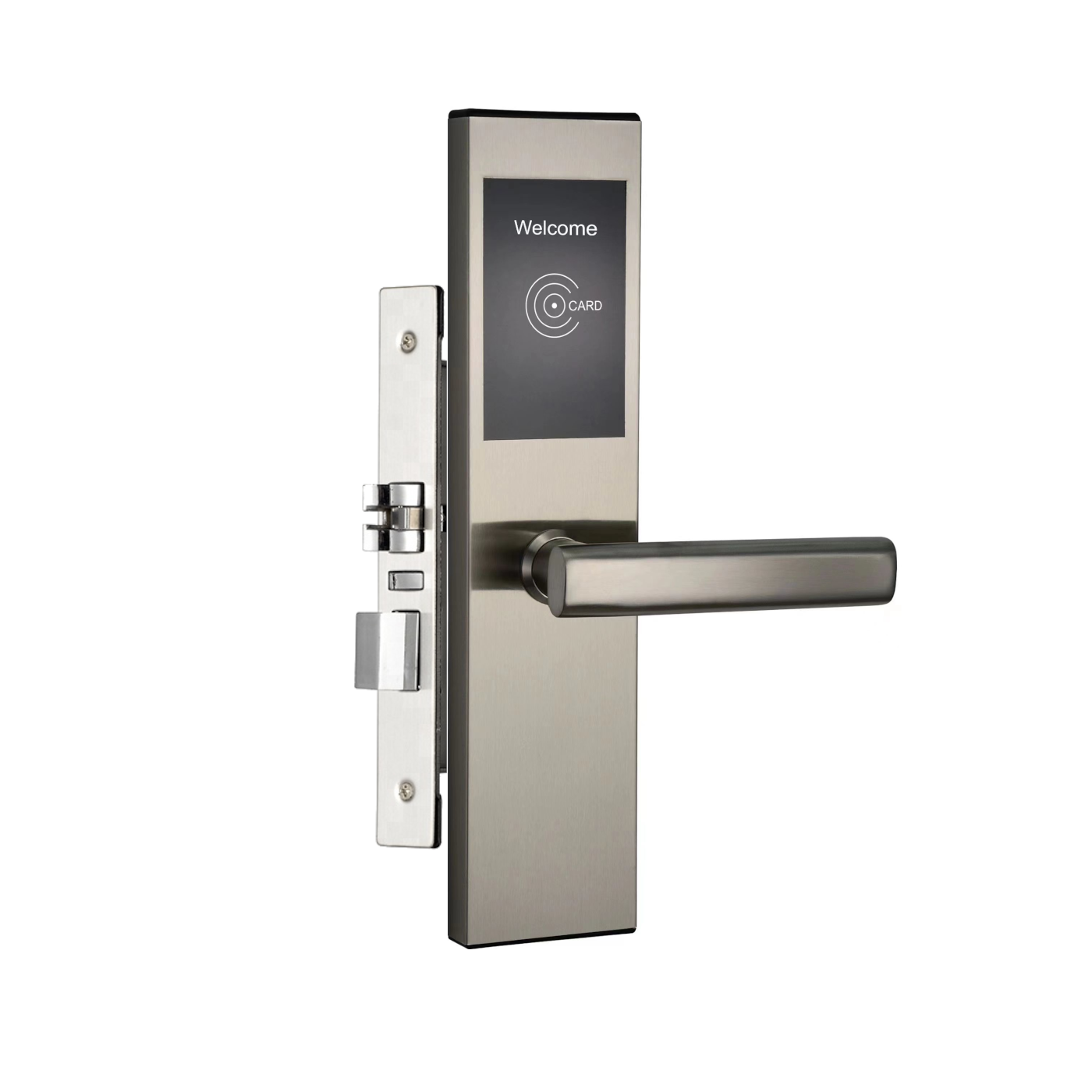

The H3109MFD Hotel-Motel Room Door Lock is a specialized locking mechanism designed to ensure guest security and convenience while allowing hotel staff access when necessary. Key-less entry door lock with 3-separate mortise options design for hospitality business operations.

Features Contactless Cards or Key fobs Communicate with the Lock via Radio waves.

Ideal for Wooden [interior & share entry doors], metal [interior & share entry front doors]. Perfect for hotels, motels, apartment condos, Airbnb, offices, resorts, conference centers, and hostels. Ideal for existing hotel/motel door lock replacement along with brand new door applications.

Key Components

• • Exterior Handle/Lever: Allows guest entry when unlocked.
  • Card Reader or Keypad: Reads keycards or accepts PINs.
  • Electronic Control Unit: Authenticates the key/card and controls the locking mechanism.
  • Battery Pack: 4-AA batteries powers the lock — mechanical keys for backup for emergencies.
  • Interior Thumb Turn or Lever: Allows guests to lock/unlock from inside.
  • Deadbolt Mechanism: Provides extra security by extending a solid bolt into the door frame.
  • Privacy Indicator: Signals “Do Not Disturb” or whether the room is occupied.

Special Features

• • Anti-Tamper Alarms: Alerts if someone tries to force the lock.
  • Emergency Override: Allows staff or emergency responders to access the room.
  • Audit Trail: Records lock activity — helps hotels monitor entries.
  • Automatic Deadlocking: Ensures the door locks securely after closing.

Lock Specification

• • Material: High quality Stainless Steel
  • Plate Size:Height = 12.0 | Width = 2.8 | Thickness = 0.7 | Handle Lenght: 5.3
  • Unlock Methods: Milfare card | Physical keys
  • Ideal Use: Hotel | Motel | Apartments | Resorts | AIRBNB | Elderly Homes | Schools | Offices
  • Mortise: Standard ANSI
  • Power Supply: 4-AA batteries
  • Access Records Max: 240 Records
  • Battery Life-span: 18-months
  • Low Battery Warning: Up to 400-Transaction possible2 | 6085]
  • Door Thickness: 1.4 ~ 4.7 inches
  • Compatible card Writer: MF22 Proximity Card Reader/Writer Management Software
  • Ideal For: Metal and Wooden doors
  • OS Support: Windows and Window based PMS Systems [Property Management Systems]
  • Weight: 11 Pounds

Recommended Application Scope

• • Hotels and Motels
  • Resorts
  • Apartment Buildings and Complexes
  • Hospitals
  • Airbnb
  • Schools
  • Offices

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 1 Door Lock Kit Set [Front/Back Panel, Cylinder, Mortise, Internal Screws]
  • 2 Mechanical keys
  • Mounting screws
  • Template & installation instructions

Manufacturer Warranty

• • 2 Year System & Harware Limited Warranty
