Cellular-Based Wi-Fi 7 Tri-Band 5G/4G Router

Cellular-Based Wi-Fi 7 Tri-Band 5G/4G Router – Ultra-Fast, Remote-Ready Networking

This Cellular-Based Wi-Fi 7 Tri-Band 5G/4G Router is a commercial tri-band Mesh Mobile Router that uses three separate frequency bands to transmit data [One 2.4 GHz band and Two 5 GHz bands]. Provide consistent, scalable mobile internet coverage using 4G/5G cellular networks across large or hard-to-wire areas. Replaces the need for fiber, DSL, or high-speed cable internet in rural areas, new developments, off-grid cabins, or temporary buildings.

Features Built-in Two Wi-Fi 5dBi Gain 2.4GHz – Four Wi-Fi 5dBi Gain 5GHz & 6GHz – 4dBi Cellular Omnidirectional Antennas

With capability of handling up to 192 devices, this device offers 2.4GHz wireless speed rate of 688Mbps, 5GHz wireless speed rate of 4320Mbps, and 6GHz wireless speed rate of 5764Mbps. Perfect for large-scale wi-fi deployment, temporary or mobile worksites, rural or off-grid connectivity, mobile business or transportation, failover & backup networks and smart city & IoT connectivity.

Key Features

• • Tri-Band Wi-Fi 7: Supports MIMO 2×2 on 2.4GHz, 5GHz, and 6GHz bands for ultra-fast and stable connections across all frequencies.
  • 5G Cellular Connectivity: Integrated 5G SA/NSA module for high-speed mobile broadband access. Dual SIM card slots with plug-and-play functionality ensure continuous uptime and failover support.

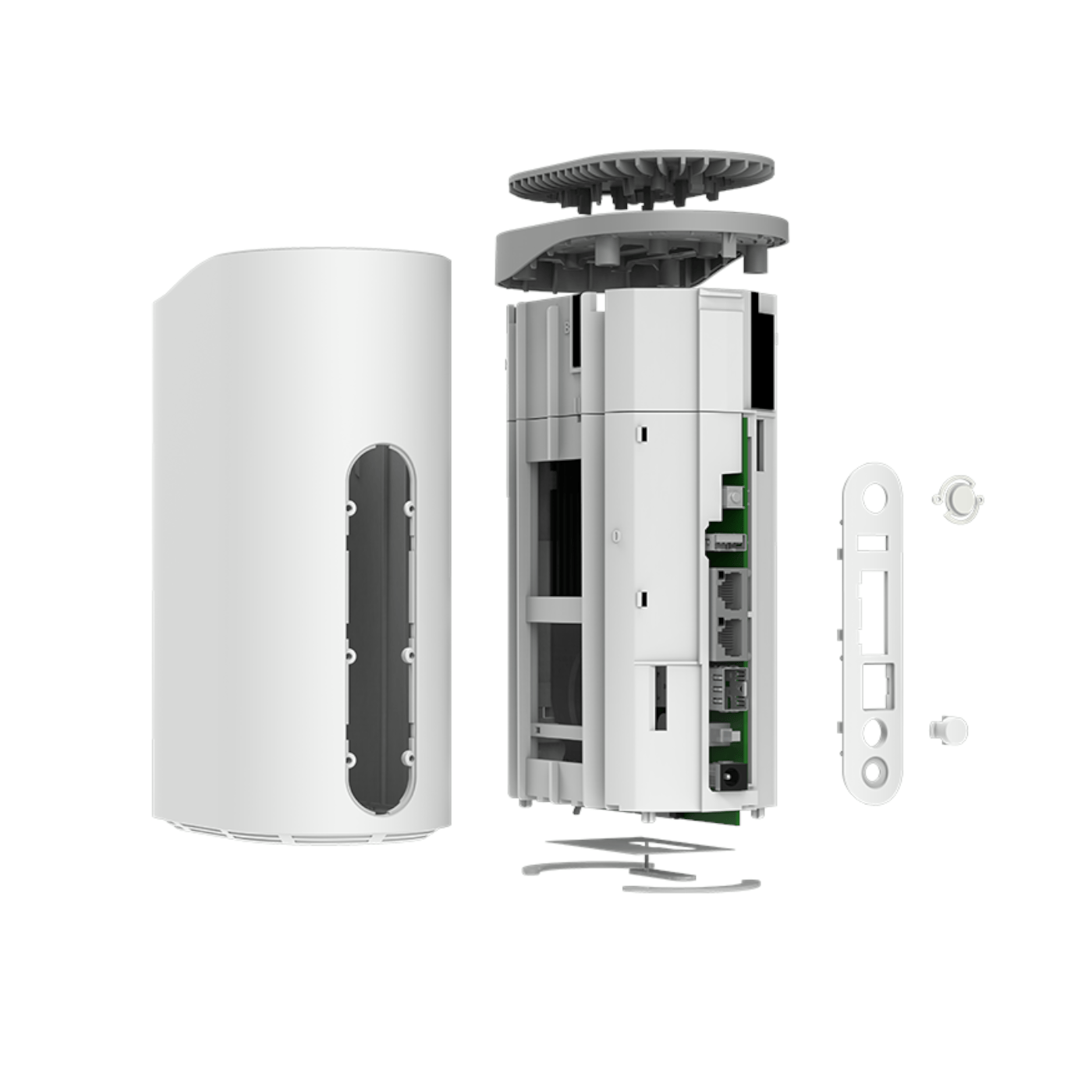

  • Tower Chassis Design: Optimized for cooling and performance, the vertical tower design improves antenna separation and heat dissipation.
  • High-Speed Wired Connectivity: 1× 10G SFP port for fiber connections | 2× 2.5G Ethernet ports for ultra-fast LAN/WAN devices
  • Massive Device Support: Connect up to 192 devices simultaneously – perfect for smart homes, offices, or IoT deployments.
  • Power & Indicator System: Multiple LED indicators for signal strength, network status, and connectivity insights. Powered by DC 12V for reliable and efficient energy use.
  • Advanced Software Support: VPN support for secure remote access | IPv6 ready for modern internet compatibility | TR-069 support for easy remote configuration by service providers | Cloud platform & remote management for centralized control | Mesh networking support for extended wireless coverage

Software Specification

• • Operating State: Host model Firmware version Running time Average load | Wireless network 4G/5G Display resource usage Intranet information, extranet information
  • Mode Support: Main routing mode – Device is connected to the WAN through the WAN port and uses STATIC, DHCP, PPPOE or 4G/5G dial-up to access the Internet | Sub-router mode – Connect to the LAN under the main router through Easy-Mesh and access the Internet through the main router
  • Wireless Capabilities: SSID Broadcast | Dual-band in one | Guest WiFi | Hide SSID function | Wireless encryption: OPEN, WPA/WPA2PSK-TKIPAES, WPA3PSK-AES | Password Settings | Bandwidth settings | Regional Settings | Channel Settings | Power settings
  • Network Settings: Mesh Settings | DHCP Server | IPv4 | IPv6 | ACL
  • Advance Settings: Terminal Management | Website filtering | IP Address Filtering | MAC address filtering | IP Address Group Management
    Time Group Management | Flow Control Settings | Port Mapping | DMZ Settings | DDNS Settings | VPN | Cloud Platform | TR069
  • Device Management: Firmware Upgrade | Configuration Management | Device restart | Time Management | System Settings | LED Settings | USB Settings

Device Specification

• • Flash: 8MB
  • 2.4GHz Band: 2.4GHz~2.484GHz
  • 2.4GHz WiFi Standard: 802.11 b/g/n/ax/be
  • 5GHz Band: 5.150GHz~5.850GHZ
  • 5GHz WiFi Standard: 802.11 a/n/ac/ax/be
  • 6GHz Band: 5.925GHz～7.125GHz
  • 6GHz WiFi Standard: 802.11 a/n/ac/ax/be
  • WiFi Antenna: 2.4GHz Omni-directional antenna × 2|Gain: 5dBi | 5GHz/6GHz dual-band Omni-directional antenna × 4 | Gain: 5dBi.
  • Wireless Speed: 2.4GHz provides a maximum access rate of 688Mbps, 5GHz provides a maximum access rate of 4320Mbps, and 6GHz provides a maximum access rate of 5764Mbps

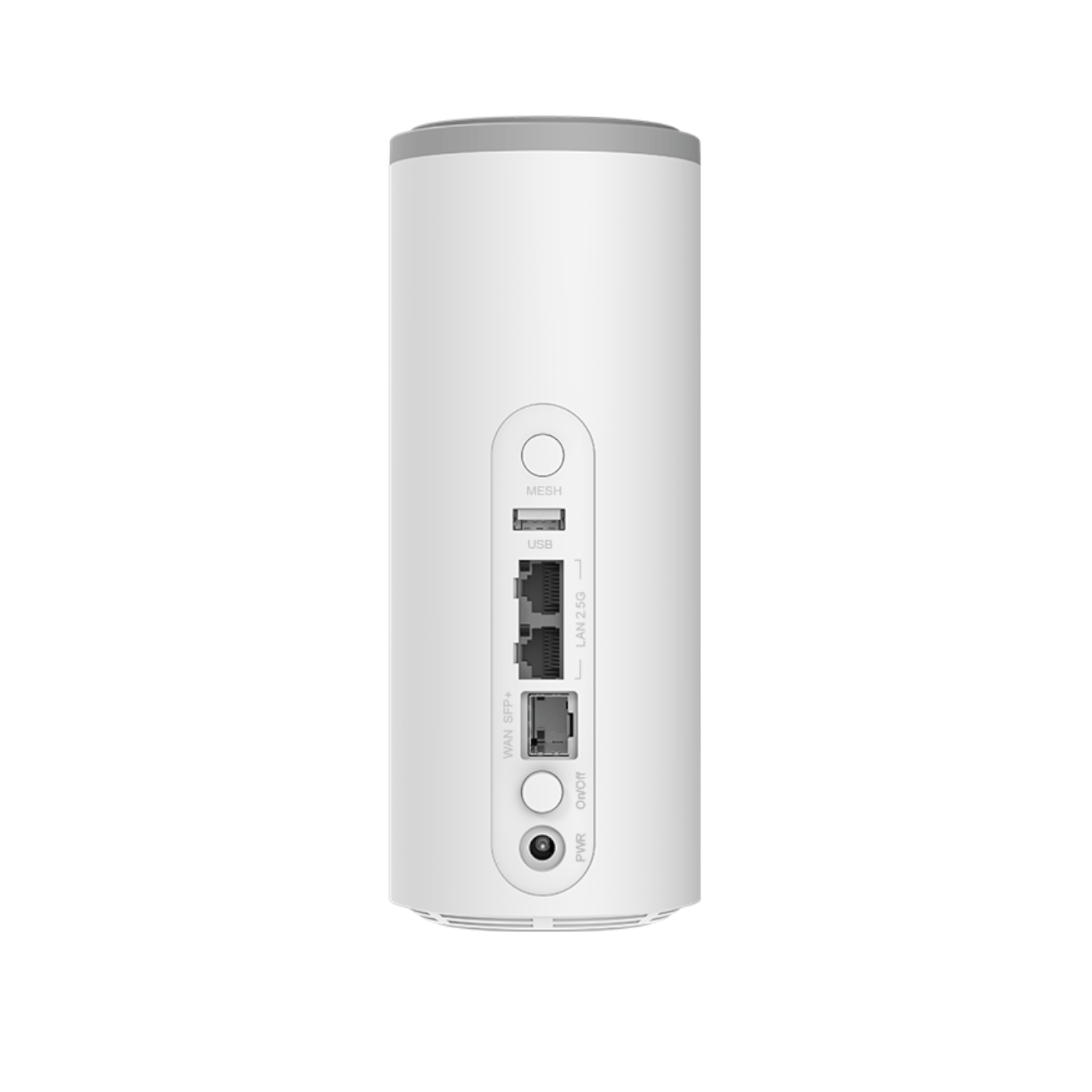

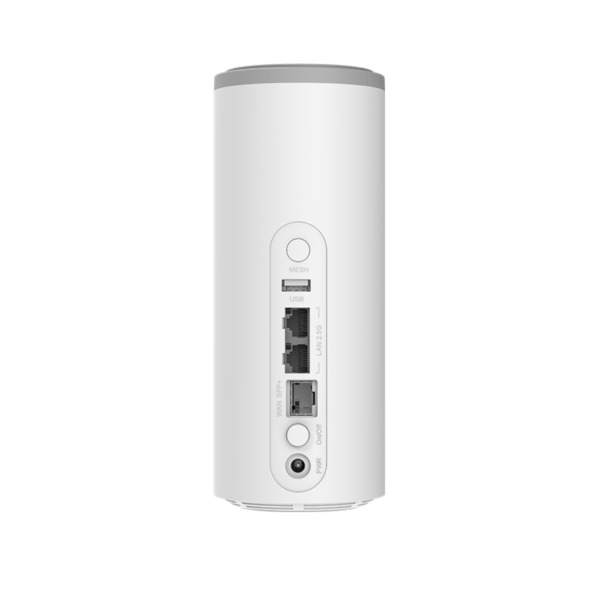

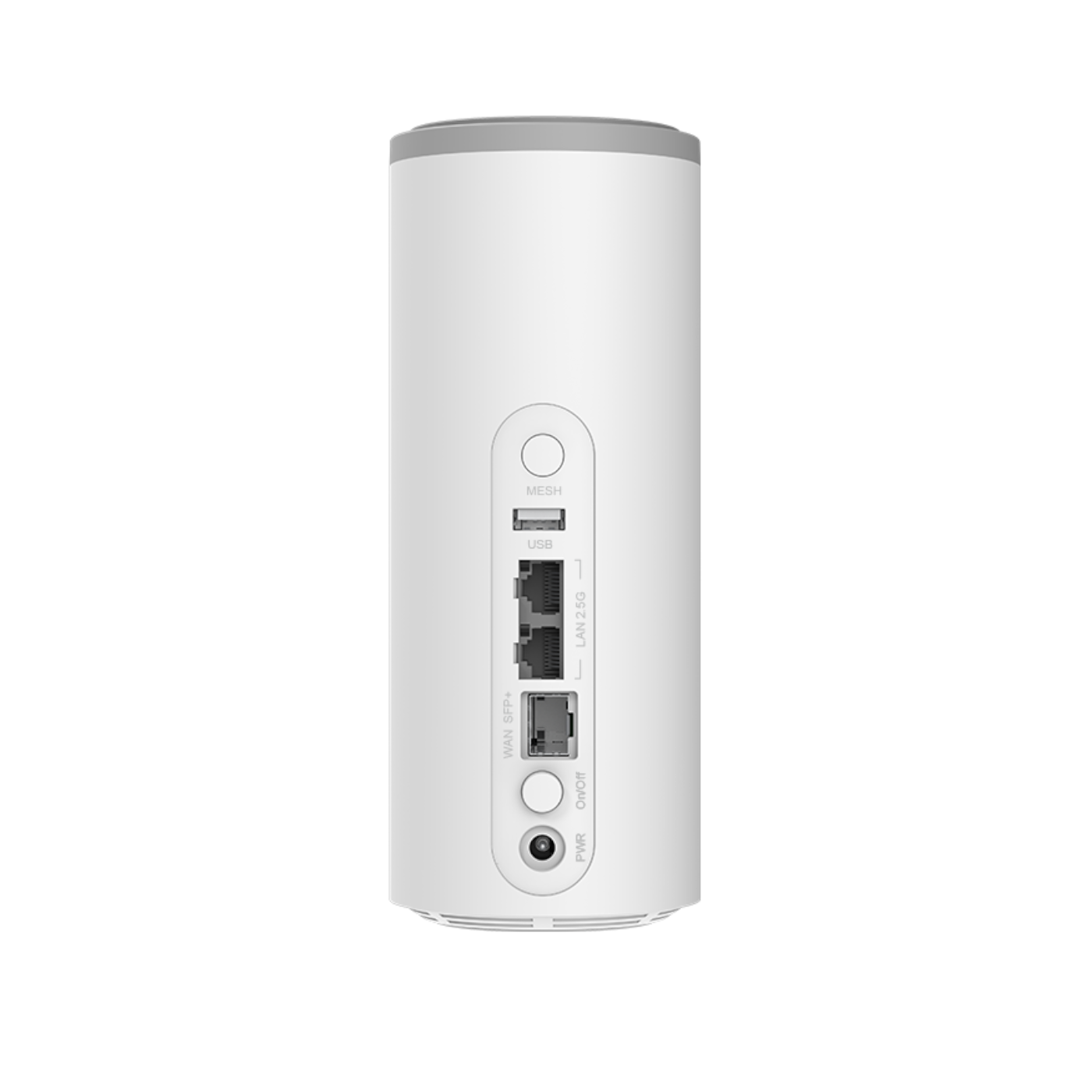

  • Interface: 1×10Gbps optical port (SFP+) | 2×10/100/1000/2500Mbps adaptive LAN ports |1×USB port
  • Buttons: Power switch | Reset button (press and hold for 6-10 seconds to restore to factory default settings) |MESH button

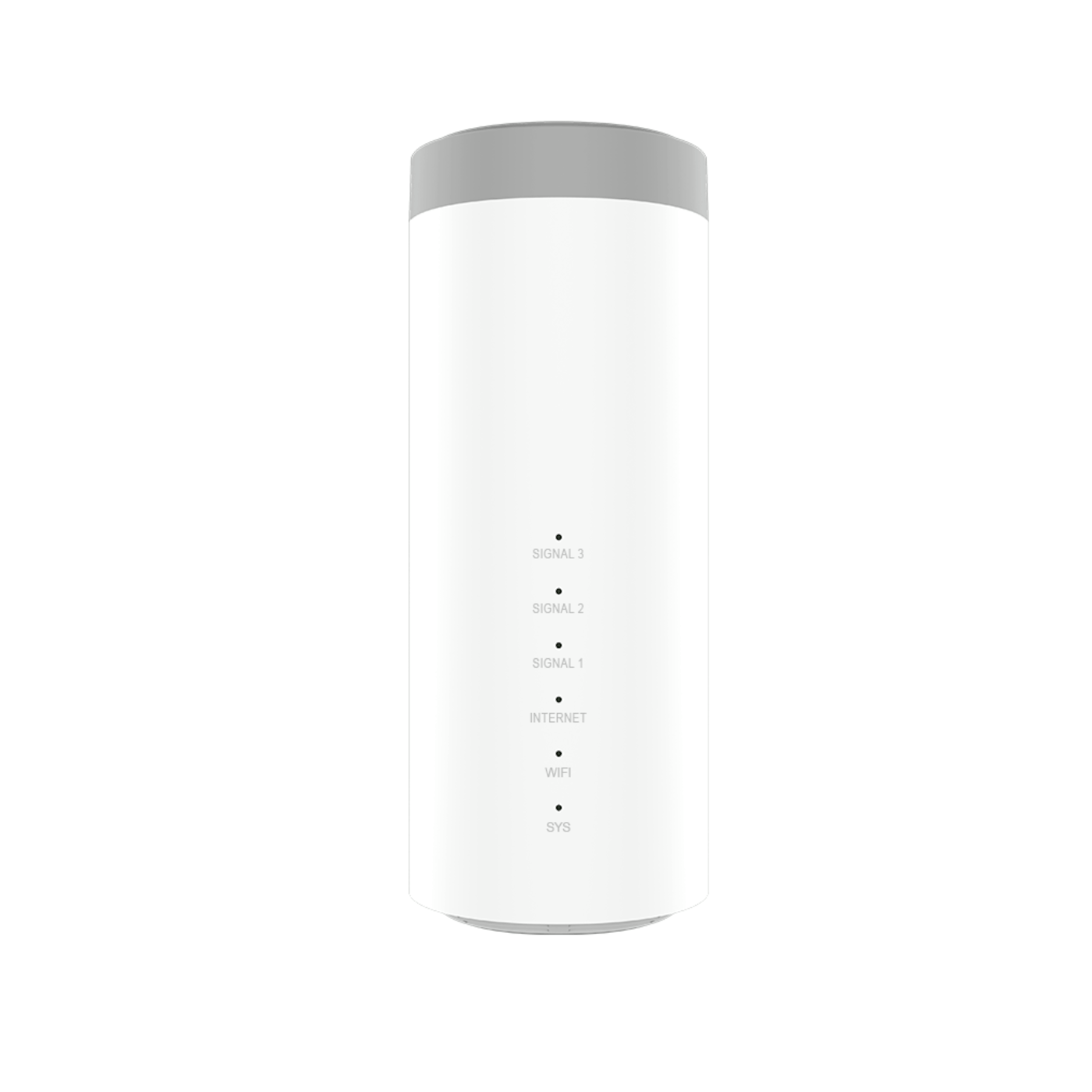

  • Status Indicator: SYS×1 = Red and Green |WiFi×1 = Blue and Green |Internet×1 = Emerald green |Signal×3 = Emerald green
  • Power Supply: DC2.0 12V/3A
  • Power Consumption: < 30W
  • Dimensions: 199.2mm×130.7mm×78.8mm
  • Net Weight: 3 pounds
  • Work Environment: Working temperature: -10°C to 40°C
  • Storage temperature: -40°C to 70°C
  • Humidity: 5% to 95% (No condensation)

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 1 5G/4G Router
  • Mounting Kit
  • Power supply
  • Installation Screws
  • Installation instructions

Manufacturer Warranty

• • 1 Year System & Harware Limited Warranty
