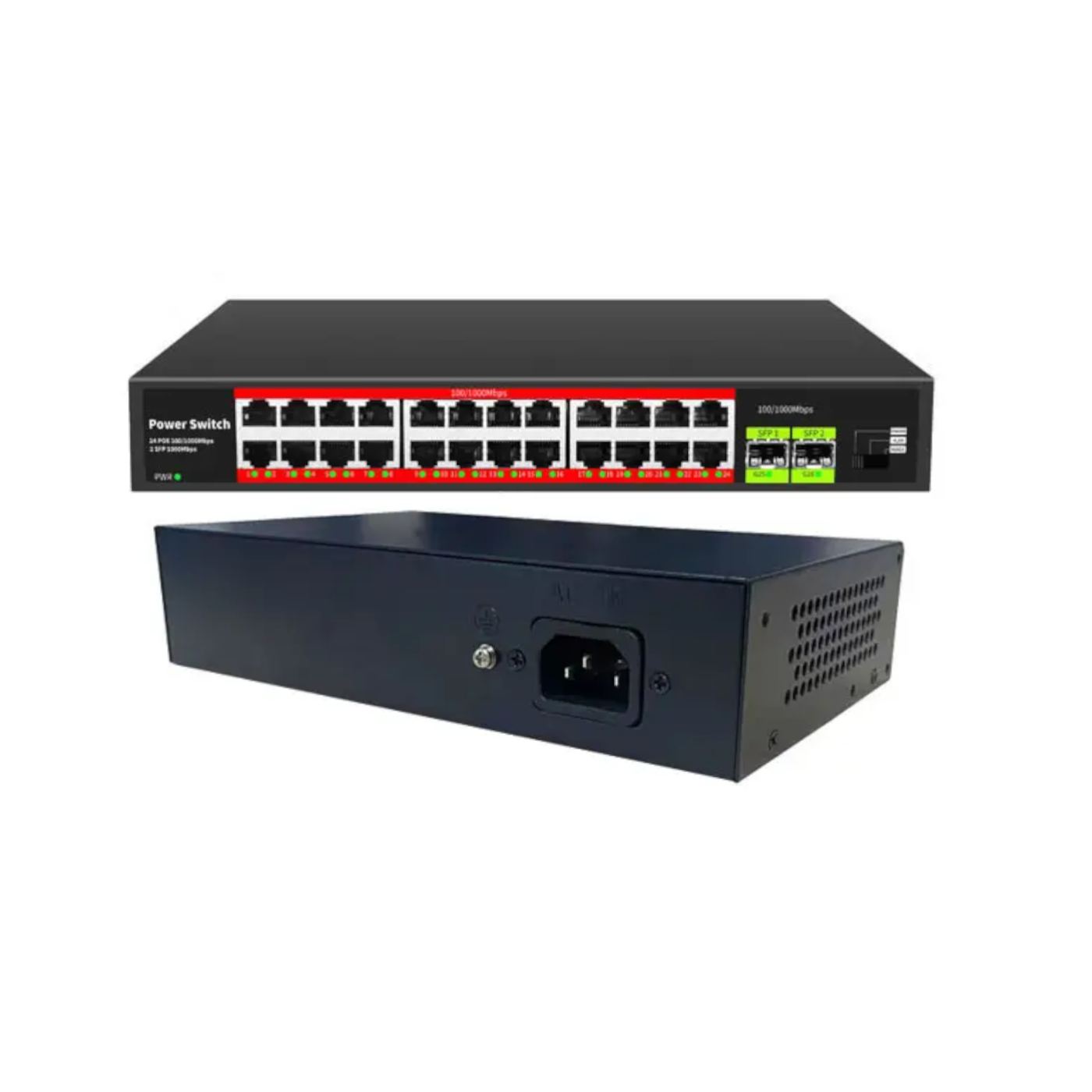

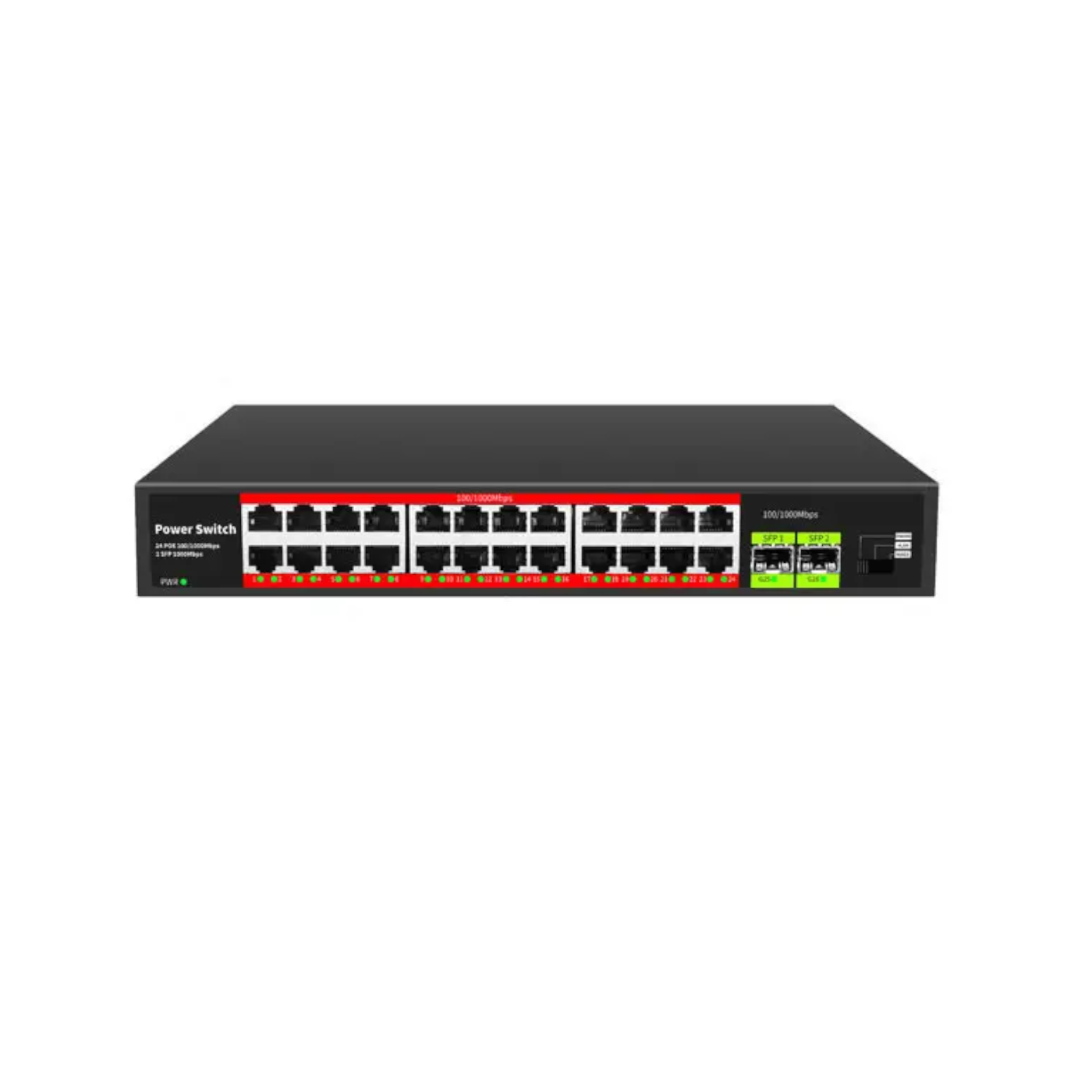

24-Port Gigabit POE Switch+2 Gigabit Uplink Ports

24-Port Gigabit POE Switch+2 Gigabit Uplink Ports

The 24-Port Gigabit POE Switch+2 Gigabit Uplink Ports is a network switch designed to provide Power over Ethernet (PoE) and high-speed connectivity for devices such as IP cameras, VoIP phones, wireless access points, and other PoE-enabled devices.

Features 24 Gigabit PoE Ports + 2 Gigabit Uplink Ports

Compatible with any device requiring 48V ~ 52V voltage input to operate. Support 10/100/1000Mbps Full-Duplex & Half-Duplex communication.

Key Features

• • 24 Gigabit PoE Ports – Supports 10/100/1000 Mbps speeds with PoE capability to power connected devices.
  • 2 Gigabit Uplink Ports – Additional non-PoE ports for high-speed connections to routers, servers, or other switches.
  • Power over Ethernet (PoE) – Supports IEEE 802.3af standards, allowing power delivery over Ethernet cables.
  • PoE Budget – 370W providing sufficient power for multiple PoE devices.
  • Plug & Play – No configuration required; automatically detects and supplies power to PoE devices.
  • Durable Metal Housing – Ensures reliability and heat dissipation for 24/7 operation.
  • Rack-Mountable Design – Suitable for installation in network racks for professional environments.

Typical Use

• • Intercom Systems
  • IP Security Cameras (CCTV)
  • Wireless Access Points (Wi-Fi APs)
  • VoIP Phones
  • IoT Devices

Device Specification

• • Device Transmission Rate: 10/100/1000Mbps
  • Communication Mode: Full-Duplex & Half-Duplex
  • Switch Capacity: 20Gbps
  • POE Ports:  24
  • Other Functions: LACP, POE, QoS, SNMP, stackable, VLAN Support
  • Power Output Ports: 1 to 24 Ports
  • Voltage Output 48V-52V
  • Voltage Input    AC110-240V 50/60HZ
  • Single Port Power Output: 15.4W
  • Total POE Power:  ≤ 370W
  • POE Protocol: IEEE 802.3af
  • Power Supply Line Sequence: 1/2+, 3/6-
  • Weight: 5 Pounds
  • Size: Height = 1.7 | Width = 11.4 | Depth = 7.9 inches

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 1 POE24 Switch
  • AC Power input cable
  • Mounting Accessories
  • Instructions & Manuals

Manufacturer Warranty

• • 1 Year System & Harware Limited Warranty
