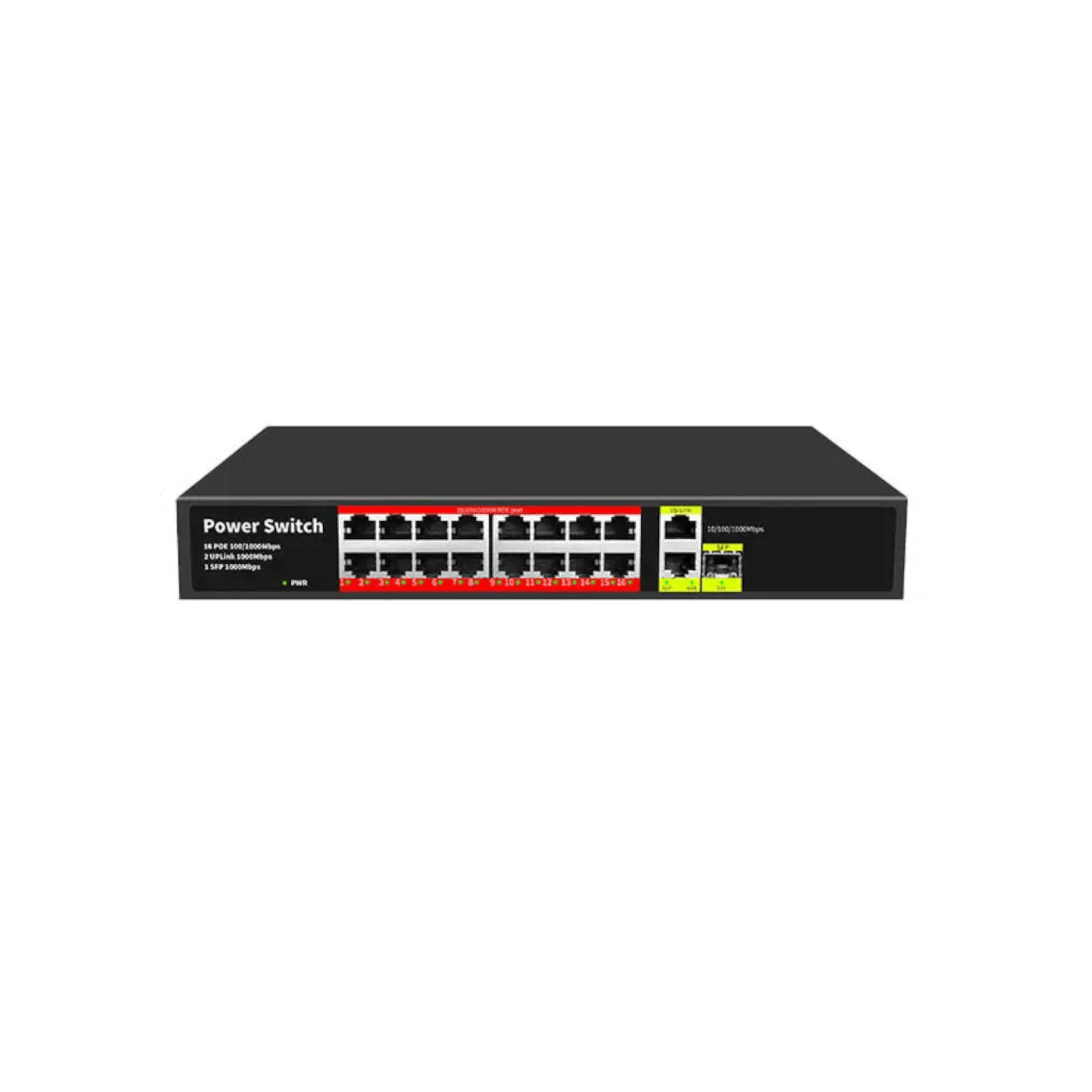

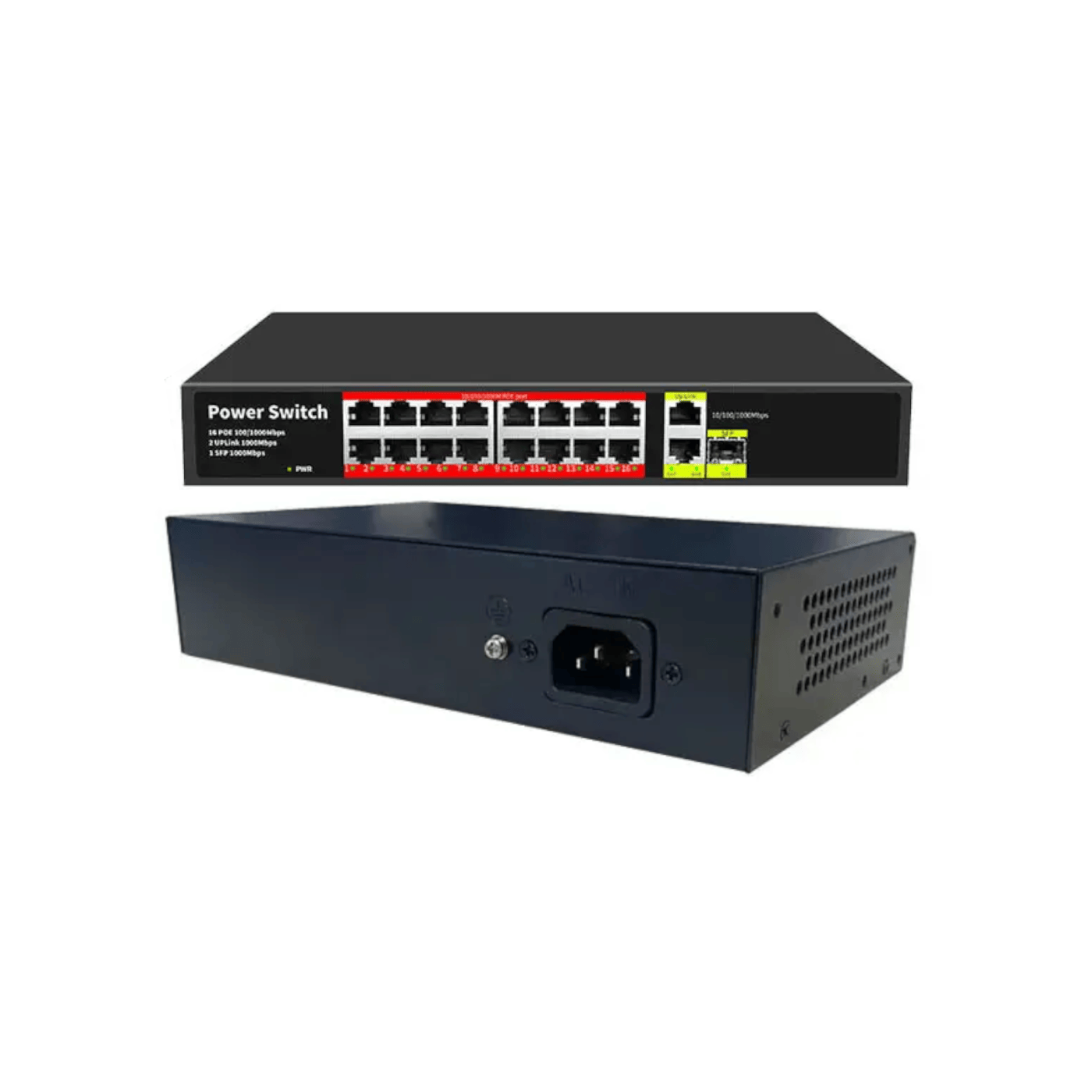

16 Ports Full Gigabit network POE Switch

16 Ports Full Gigabit network POE Switch

The POE16 16 Ports Full Gigabit network POE Switch is a network switch designed for small to medium-sized businesses, surveillance systems, and office networks.

Features 15.4Watts Single Port Power Output | 300 Watts Total Power Output

Compatible with any device requiring 48V ~ 52V voltage input to operate. Support 10/100/1000Mbps Full-Duplex & Half-Duplex communication.

Key Features

• • 16 PoE Ports + Uplink Port(s): Includes 16 PoE-enabled Ethernet ports (10/100/1000Mbps) plus 2 uplink ports for connecting to a router or another switch.
  • 48V PoE Power Supply: Provides 48V PoE output, suitable for devices like IP cameras, VoIP phones, access points, and other PoE-powered equipment.
  • Unmanaged Plug-and-Play: No configuration required; simply connect devices, and the switch will automatically supply power to compatible PoE devices.
  • PoE Standard Support: Supports IEEE 802.3af (PoE) with a total power budget.
  • Built-in Protection: Includes safeguards against over-voltage, over-current, and short circuits to ensure reliable operation.
  • Metal Housing: Designed with durable metal casing for better heat dissipation and longevity.
  • Fanless & Silent Operation: Operate silently without a fan, making it suitable for office or home environments.

Typical Use

• • Intercom Systems
  • IP Security Cameras (CCTV)
  • Wireless Access Points (Wi-Fi APs)
  • VoIP Phones
  • IoT Devices

Device Specification

• • Device Transmission Rate: 10/100/1000Mbps
  • Communication Mode: Full-Duplex & Half-Duplex
  • Switch Capacity: 20Gbps
  • POE Ports:  16
  • Other Functions: LACP, POE, QoS, SNMP, stackable, VLAN Support
  • Power Output Ports: 1 to 16 Ports
  • Voltage Output 48V-52V
  • Voltage Input    AC110-240V 50/60HZ
  • Single Port Power Output: 15.4W
  • Total POE Power:  ≤ 300W
  • POE Protocol: IEEE 802.3af
  • Power Supply Line Sequence: 1/2+, 3/6-
  • Weight: 5 Pounds
  • Size: Height = 1.8 | Width = 11.4 | Depth = 7.9 inches

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 1 POE16 Switch
  • AC Power input cable
  • Mounting Accessories
  • Instructions & Manuals

Manufacturer Warranty

• • 1 Year System & Harware Limited Warranty
