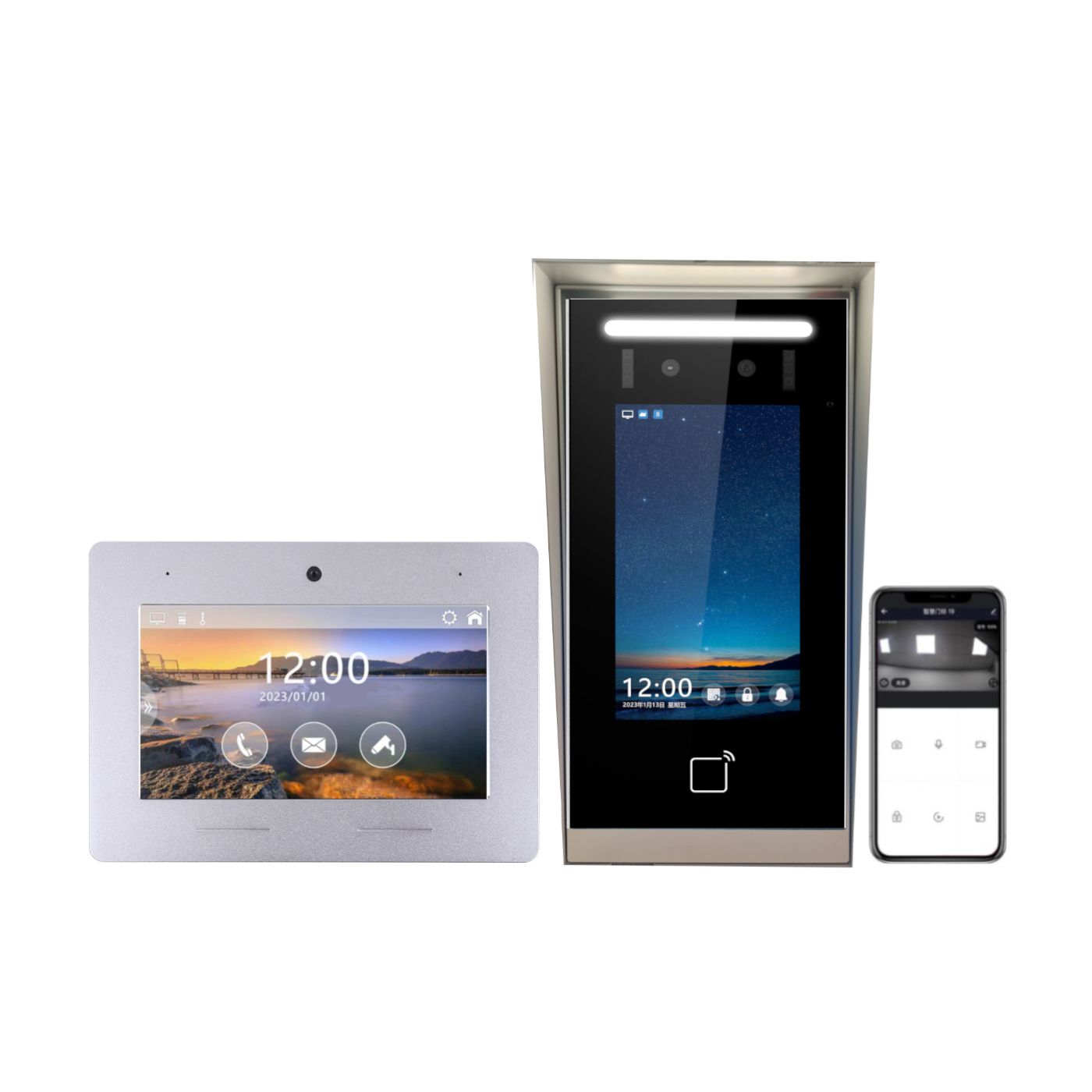

2-way Voice Video Home Intercom System – ZDL-IPW571CC

2-way Voice Video Home Intercom System

The ZDL-IPW571CC 2-Way Voice Video Home Intercom System is a communication device designed to enable seamless audio and video interaction between different areas of a home.

Support Multiple Indoor & Outdoor Units – Can connect multiple screens and cameras at different locations

It provides security, convenience, and efficient internal communication. Simply add up to 9999 of this ZDL-IPW10BC Smart IP based Monitors to create a perfect smart communication solution. Compatible with multiple intercom stations, and security cameras.

Key Features

• • Two-Way Communication – Allows real-time audio and video interaction between different intercom units installed in the home.
  • High-Definition Video – Equipped with HD cameras for clear visuals, enhancing security and recognition.
  • Touchscreen Display – Modern intercoms come with capacitive touchscreen panels for easy operation.
  • Multiple Indoor & Outdoor Units – Can connect multiple screens and cameras at different locations.
  • Remote Access – Some models allow remote access through mobile apps, enabling communication even when you’re not home.
  • Night Vision – Infrared or low-light capabilities ensure clear video even in the dark.
  • Motion Detection & Alerts – Advanced systems can detect motion near the door and send notifications.
  • Integration with Smart Home Systems – Works with smart locks, alarms, and home automation for added security.
  • Weatherproof Outdoor Unit – The external camera and microphone are designed to withstand rain and extreme temperatures.
  • Hands-Free Operation – Offers self-activated or touch-free answering for added convenience.
  • Expandable System – Compatible with additional ip-cameras, intercom units, or doorbells to scale the system as needed.
  • Smart App Integration: Supports the “Smart Life” app, enabling remote access and control via smartphones or tablets.
  • IP Camera Support: Compatible with IP cameras from brands like HikVision, ONVIF, and Dahua, allowing for comprehensive video surveillance integration.
  • Expandable System: Capable of integrating with additional intercom units, doorbells, or security cameras to scale the system as needed

Smart Home Integration

• • Integrate up to 99-Smart Monitors in a single call group
  • Support up to 999-Call groups
  • Integrate up to 99-Door Cameras in a call group.
  • Support up to 999-Door Station groups.
  • Connects seamlessly with Surveillance IP Camera
  • Support other smart home devices like Alarm Sensors and Contacts for added security.
  • Live video streaming and footage recording with a mobile app
  • Receive notifications when someone rings the doorbell or approaches your home.
  • Save recorded videos securely on the cloud or a smartphone storage device.
  • Sends instant alerts when movement is detected near your door.
  • Adjustable sensitivity to avoid unnecessary notifications.
  • Integrate the ZDL Series Face Recognition locks.
  • Include subscription FREE APP [Smart Life]

Common Applications

• • Home Security – Screen visitors before granting access.
  • Internal Communication – Communicate between rooms or floors in large homes or offices.
  • Remote Entry Control – Unlock doors remotely after verifying visitors.
  • Elderly & Child Monitoring – Easily check on family members in different rooms.

Device Specification

• • Door Camera Resolution: 2MP
  • Camera Veiwing Angle: 150-Degree
  • Screen Resolution: 1024 X 600
  • Screen Camera Resolution: 3MP
  • LAN Connection: RJ45-Female
  • Network Support: WiFi / LAN [Ethernet]
  • Power Source: 12VDC Or POE [48V]
  • Operating Current: <400mA
  • Power Consumption: <5-Watts
  • Monitor Dimension: Width-3.9 X Height-7.0 X Thickness-1.4 Inches
  • Door Camera Dimension: Width-3.9 X Height-7.0 X Thickness-1.4 Inches
  • Monitor Mounting Style: Flush Mounting [Recommended]
  • Door Camera Style: Flush Mounting [Recommended]
  • Door Camera Rating: IP65 [Weatherproof]
  • Operating Temperature: -10 Degree To 158 Degree Fahrenheit
  • Weight: 12 Pounds

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 1 ZDL-IPW2 Door Camera
  • 1 ZDL-IPW7CC Monitor
  • 1 – 12VDC 4Amp or 4-Port Poe Switch System Power Supply
  • 2 Test Key-fobs
  • Mounting Accessories
  • Instructions & Manuals

Manufacturer Warranty

• • 1 Year System & Harware Limited Warranty
