3KM PTP-PtMP Wireless Bridge with Automatic IP Address Allocation

3KM PTP-PtMP Wireless Bridge with Automatic IP Address Allocation

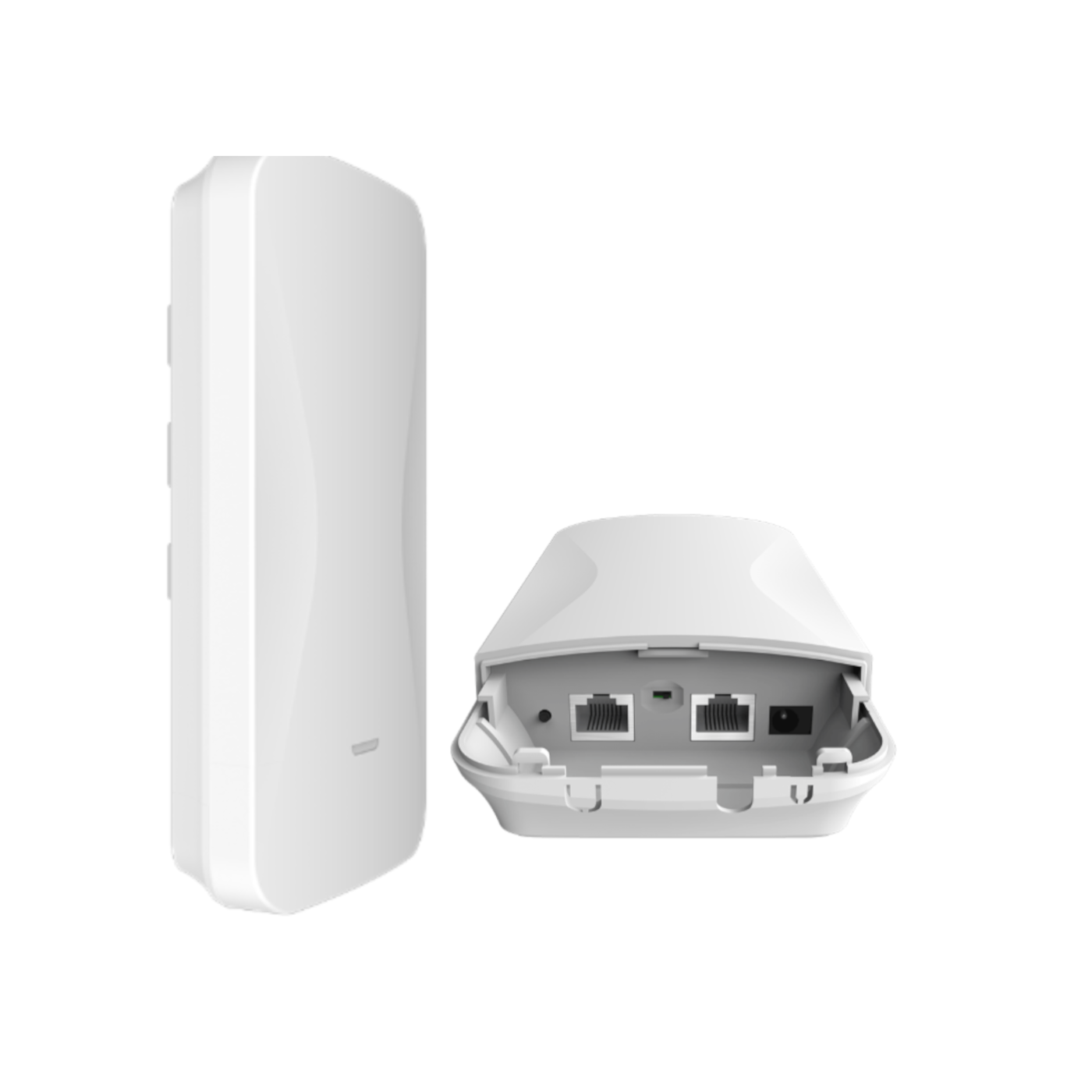

The WB5G03 3KM PTP-PtMP Wireless Bridge with Automatic IP Address Allocation is a wireless communication solution designed to connect two or more network points over a distance of up to 3 kilometers without the need for physical cabling.

Automatic IP Address Allocation: Supports DHCP (Dynamic Host Configuration Protocol)

Ideal for surveillance systems, remote office connectivity, or rural internet extension. Perfect solution for extending LAN connections across large campuses or industrial areas as well.

Description

• • Wireless Bridge (PTP / PtMP)

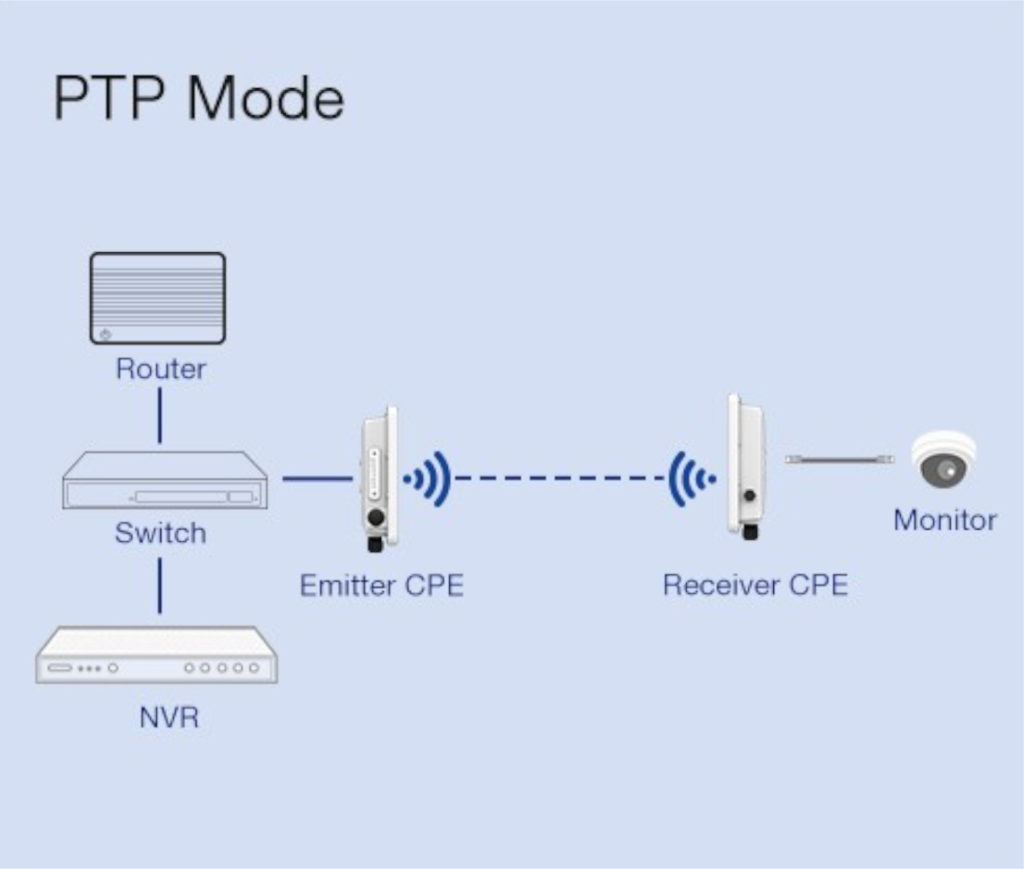

    • Point-to-Point (PTP) mode connects two locations directly, such as a building-to-building network link.

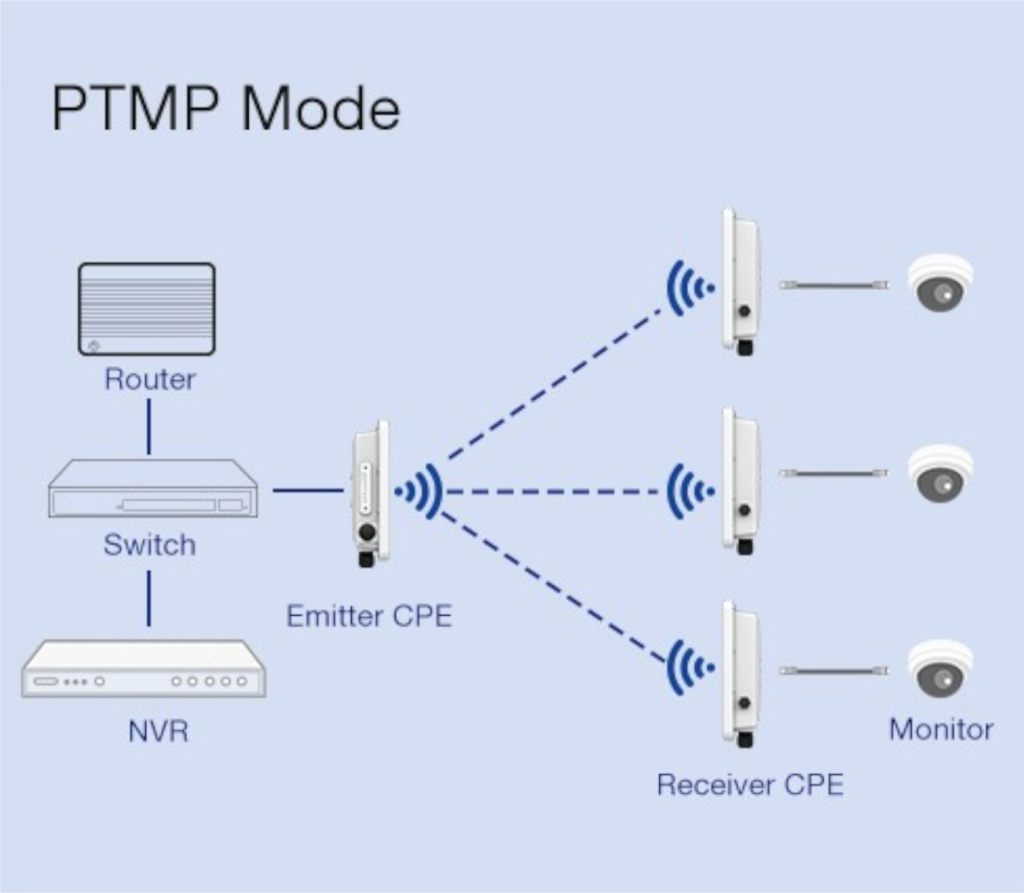

    • Point-to-Multipoint (PtMP) mode allows one central device (the “base station”) to connect with multiple remote devices (the “clients” or “subscriber units”).
    • Ideal for surveillance systems, remote office connectivity, or rural internet extension.
  • 3KM Range
    • Designed for line-of-sight (LOS) environments with minimal obstructions.
    • Operates effectively within a 3-kilometer radius, depending on environmental conditions, antenna gain, and device power.
  • Automatic IP Address Allocation
    • Supports DHCP (Dynamic Host Configuration Protocol), which automatically assigns IP addresses to connected devices.
    • Simplifies network setup—no need for manual IP address configuration on each client device.
    • Enhances scalability and plug-and-play usability, especially in PtMP scenarios.
  • Common Features
    • Frequency Bands: Operates in 5GHz bands.
    • Pairing: One click quick pairing
    • Data Throughput: Offers gigabit speed up to 900Mbps.
    • Encryption: Includes WPA2/WPA3, AES encryption for secure communication.
    • Power Supply: Support IEEE802.3af standard 48V PoE or DC 12V power supply.
    • Management Interface: Web GUI, SNMP, or cloud-based control panels for configuration and monitoring.
  • Applications
    • Extending LAN connections across large campuses or industrial areas.
    • Wireless IP camera backhaul.
    • Connecting remote IoT devices.
    • Internet distribution in suburban or rural areas.

Device Specification

• • Flash: 16M
  • Memory [DDR2]:  64M
  • 2.4G frequency: 5.150GHz～5.850GHz
  • 2.4G WIFI protocol: 802.11 a / n /ac
  • Antenna: 5.8G directional panel antenna, gain：15dBi
  • Max Rate: 867Mbps
  • 5G TX Power: 802.11a
  • 5G Receiving Sensitivity: 802.11a
  • 5G EVM: 802.11a_54M: ≤-25 dB；802.11n_MCS7: ≤-28 dB；802.11AC_MCS9:≤-32dB
  • PPM: ±20ppm
  • WAN: 1*10/1000M WAN, support 24V passive POE
  • LAN: 1*10/1000M LAN
  • Power: PoE 24V   1A，DC 12V   1A
  • Maximum Power Consumption: < 10W
  • Reset:  Press for 10 seconds to restore the factory default configuration and short press for 1 second to initiate pairing.
  • Operation Switch Button: Choose AP/ Repeater working mode
  • Indicators: SYS, WAN, LAN, 5G WIFI, signal*4
  • Dimension: 6.6 X 3.4 X 1.7 inches
  • Working Temperature: -20°C to 55°C；Storage: -40°C to 70°C；Humidity: 5％～95％(Non-Condensing)
  • Outdoor Rating: IP65
  • ESD: Air:±8K, Touch:±6K
  • Electrical Surge: Common Mode = 2K, Differential Mode = 1K

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 1 kit of WB5G03 Wireless bridge [2-Radios]

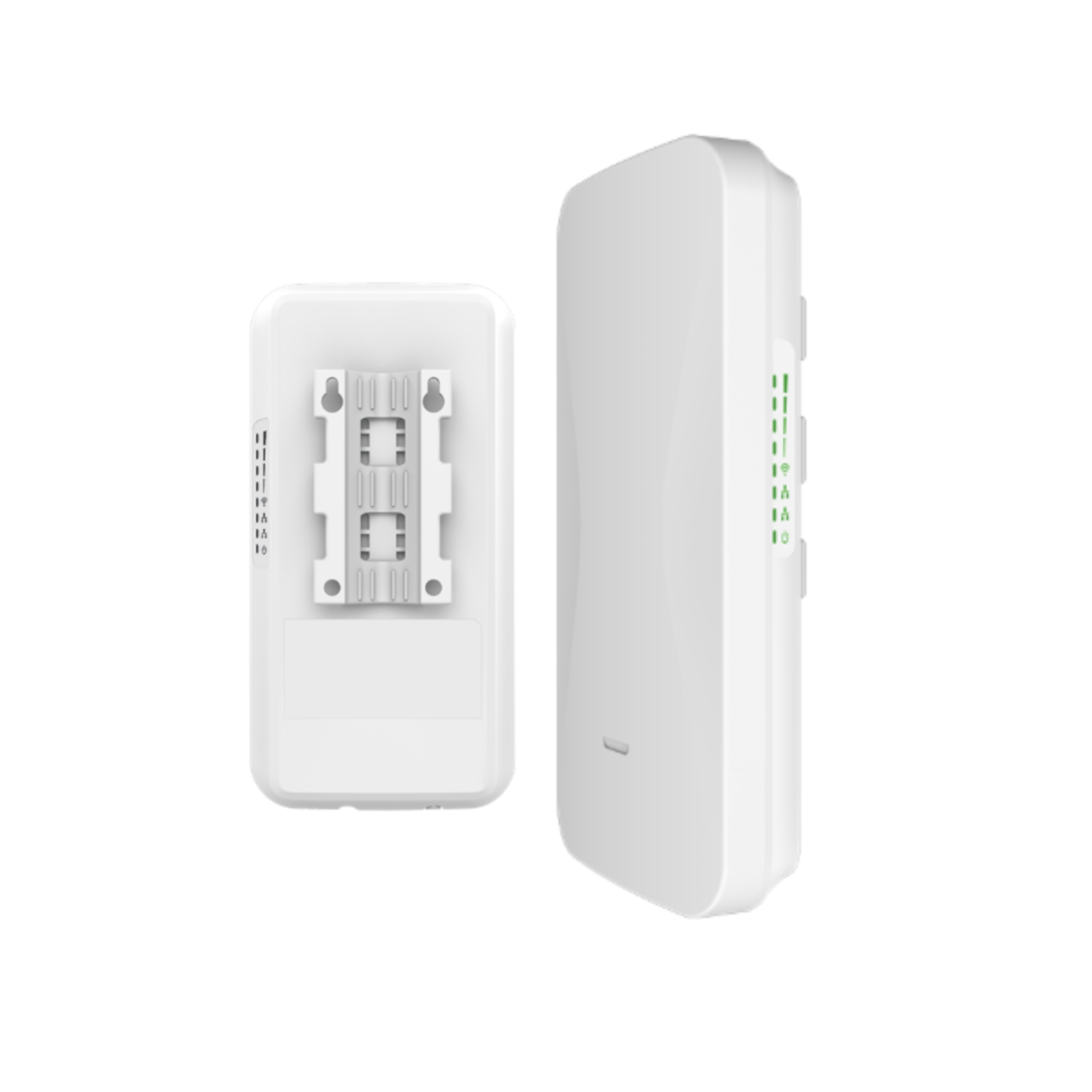

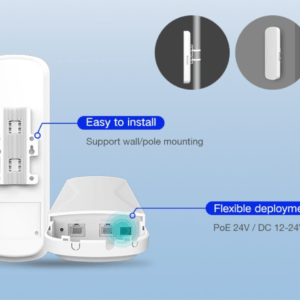

  • Mounting Kit [Pole Not Included]
  • Power supply
  • Installation Screws
  • Installation instructions

Manufacturer Warranty

• • 1 Year System & Harware Limited Warranty
