3-Miles Wireless Bridge for Seamless Connectivity

3-Miles Wireless Bridge for Seamless Connectivity

The WB5nL5 3-Miles Wireless Bridge for Seamless Connectivity is a robust 3 miles wireless bridge for dependable connections between two locations, enhancing your networking experience. A stable networking solution designed to provide a reliable wireless connection between two locations up to three miles apart. Commonly used to extend internet access or create a network link in areas where traditional cabling is impractical or too expensive.

Extend and enable the creation of local area networks that can connect multiple users or devices to a central base station

Equipped with advanced encryption protocols like WPA2/WPA3 to ensure data integrity and security. Ideal for scenarios requiring high-speed, reliable, and secure communication over moderate to long distances. Establish reliable, high-speed network connections over distances where traditional cabling is impractical or cost-prohibitive. Support most third-party routers and modems in the market.

How it works

1. 1. Point To Point [One To One] Operating Mode: The first radio connects the router located in the base station (also called Access Point or AP) and installed at a high point (like rooftop or a tower).
   2. Point-to-Multipoint [One-to-Many] Operating Mode: The first radio regarded as the central base station (also called Access Point or AP) is installed at a high point (like a tower or rooftop). Multiple radios (clients) are installed at various remote locations.
   3. The second radio [Point to Point or Point to Multi Point] installs at remote location and aligned to face the base station radio with a clear Line of Sight (LoS).
   4. They communicate over a dedicated wireless frequency (5GHz license free). The base station uses sector antennas to communicate with several clients simultaneously.
   5. Data from one network travels through the wireless link to the other, functioning as if they were physically connected via Ethernet.

Key Features

• • Long-Distance Connectivity
    • Supports wireless transmission up to 3 miles (5 km) in open line-of-sight (LOS) conditions.
  • Applications
    • PtP Operation: Connecting two distant locations [Example: Farm house to barn, or businesses can establish PtP links between remote offices or campuses to ensure secure and high-speed data transmission].
    • PtMP Operation: Serving multiple users from one base [Example: Community Wi-Fi networks, or links and transmit video feeds from multiple cameras to a central monitoring station]
    • Rural Internet Access: Extending broadband connectivity to remote locations.
    • Surveillance: Linking IP cameras to a central monitoring hub over long distances.
    • Enterprise Connectivity: Bridging office buildings, warehouses, or manufacturing facilities.
    • Public Wi-Fi: Deploying hotspots across expansive outdoor spaces.
  • High-Speed Data Transmission
    • Provides fast data rates, typically supporting speeds up to hundreds of Mbps depending on the model and environmental factors.
  • Durable Build
    • Weatherproof and rugged design to withstand outdoor conditions, including rain, wind, and extreme temperatures.
  • Advanced Wireless Technology
    • Features technologies like MIMO (Multiple-Input Multiple-Output) for enhanced throughput and stability. Operates on 2.4 GHz or 5 GHz frequency bands to minimize interference.
  • Plug-and-Play Installation

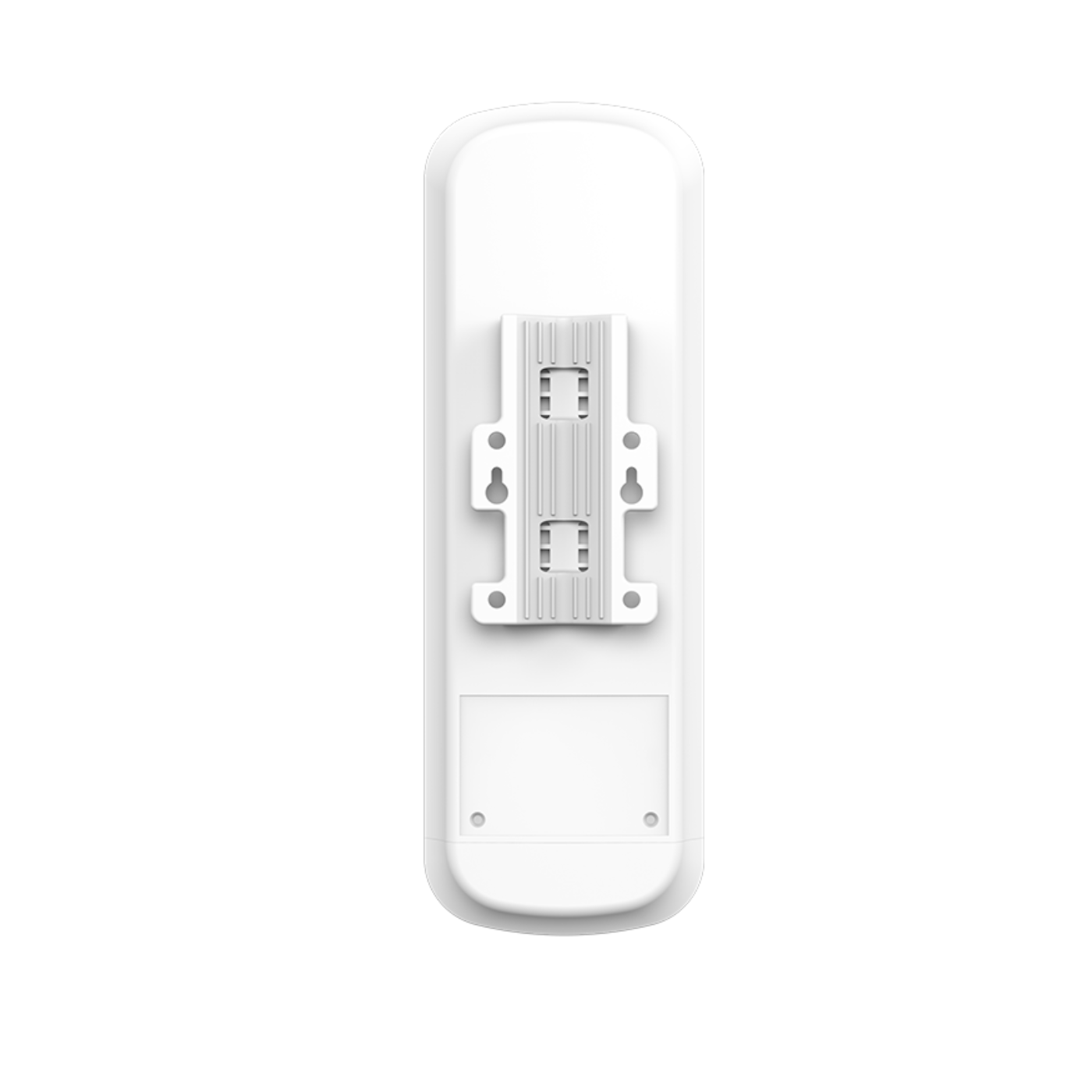

    • Easy setup with pre-configured or user-friendly interfaces. Includes mounting kits for poles or walls.
  • Power Over Ethernet (PoE)
    • Simplifies power delivery by using a single cable for both power and data.
  • Security
    • Equipped with advanced encryption protocols like WPA2/WPA3 to ensure data integrity and security.

Common Applications

• • • Rural Internet Access: Extending internet service to remote locations.
    • Surveillance Systems: Connecting remote security cameras to a central monitoring system.
    • Industrial Sites: Linking buildings, warehouses, or equipment in large industrial areas.
    • Community Networks: Sharing internet connectivity between homes or businesses in rural or suburban areas.

Advantages

• • • Cost-effective alternative to fiber or copper cables.
    • Quick deployment without extensive infrastructure requirements.
    • Stable and reliable connection for remote applications.

Device Specification

• • 5G frequency: 5.150GHz～5.850GHz
  • 5G WIFI Protocol: 802.11 a/ n
  • Max Rate: 300Mbps
  • Antenna: Internal 15dBi directional panel antenna
  • 5G EVM: 802.11a_54M: ≤-25 dB；802.11n_MCS7: ≤-28 dB ; ppm ±20ppm

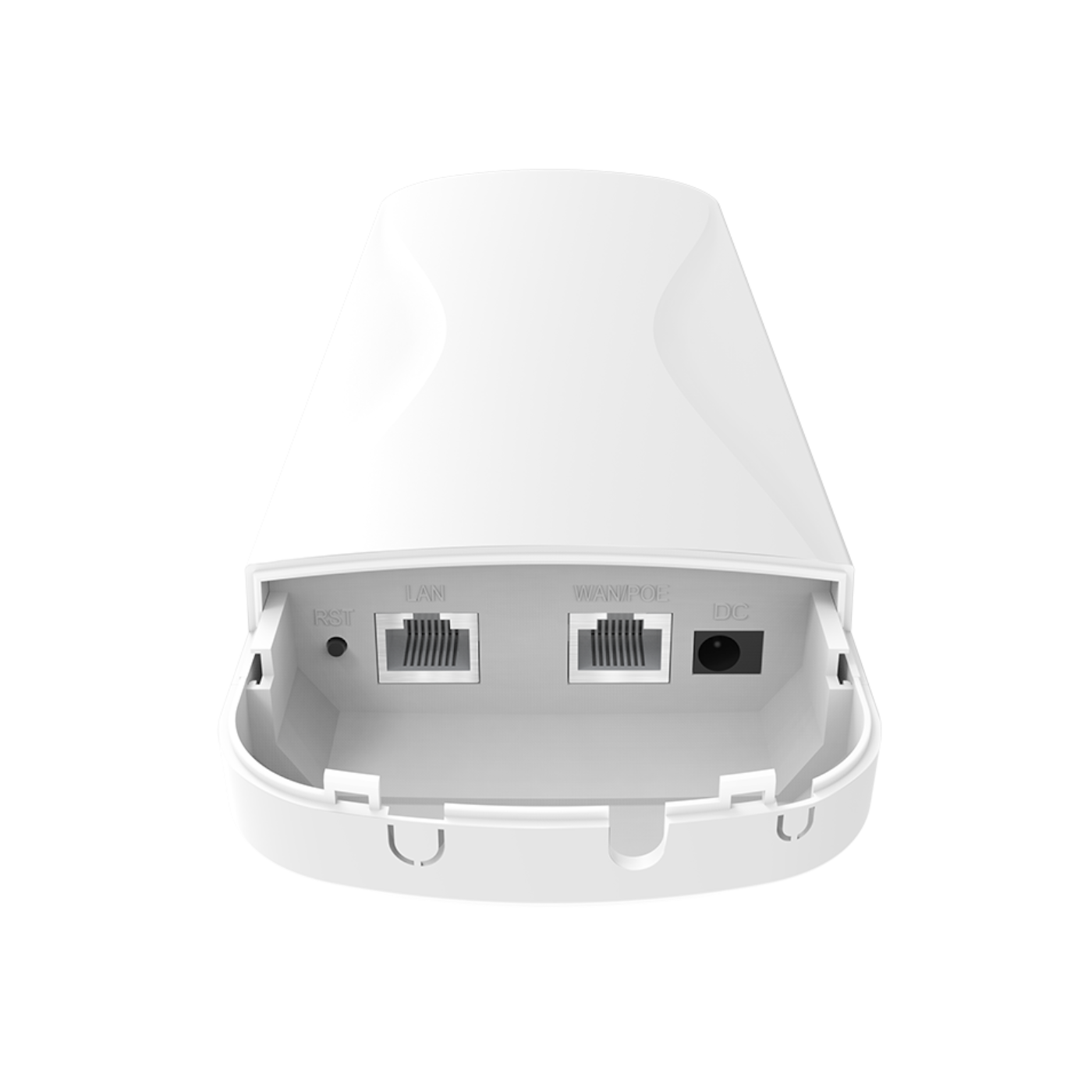

  • WAN: 1*10/100 WAN, support 24V POE
  • LAN: 1*10/100 LAN
  • Power: Poe 24V, DC 12~24V
  • Max Power Consumption: <8W
  • Reset: Press RESET for 2-5 seconds for pairing, 10-seconds for factory resetting.
  • Indicators: SYS, WAN, LAN, 5G WIFI, Signal*4
  • Dimension: height = 6.6 | Width = 3.4 Thickness = 1.67
  • Weight: 4 pounds
  • Temperature: Working = -20°C to 55°C；| Storage = -40°C to 70°C；| Humidity =  5％～95％(Non-Condensing)
  • IP Grade: IP65
  • ESD: Air:±8K, Touch:±6K
  • Electrical Surge: Common Mode: 2K, Differential Mode: 1K

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 2 WB5nL5 CPE [1 Kit]
  • 2 Poe Power supply
  • 2 Cat5e patch cable
  • Mounting screws
  • Manual & installation instructions

Manufacturer Warranty

• • 1 Year System & Harware Limited Warranty
