Network Based 4-Entrances Access Control System

Network Based 4-Entrances Access Control System

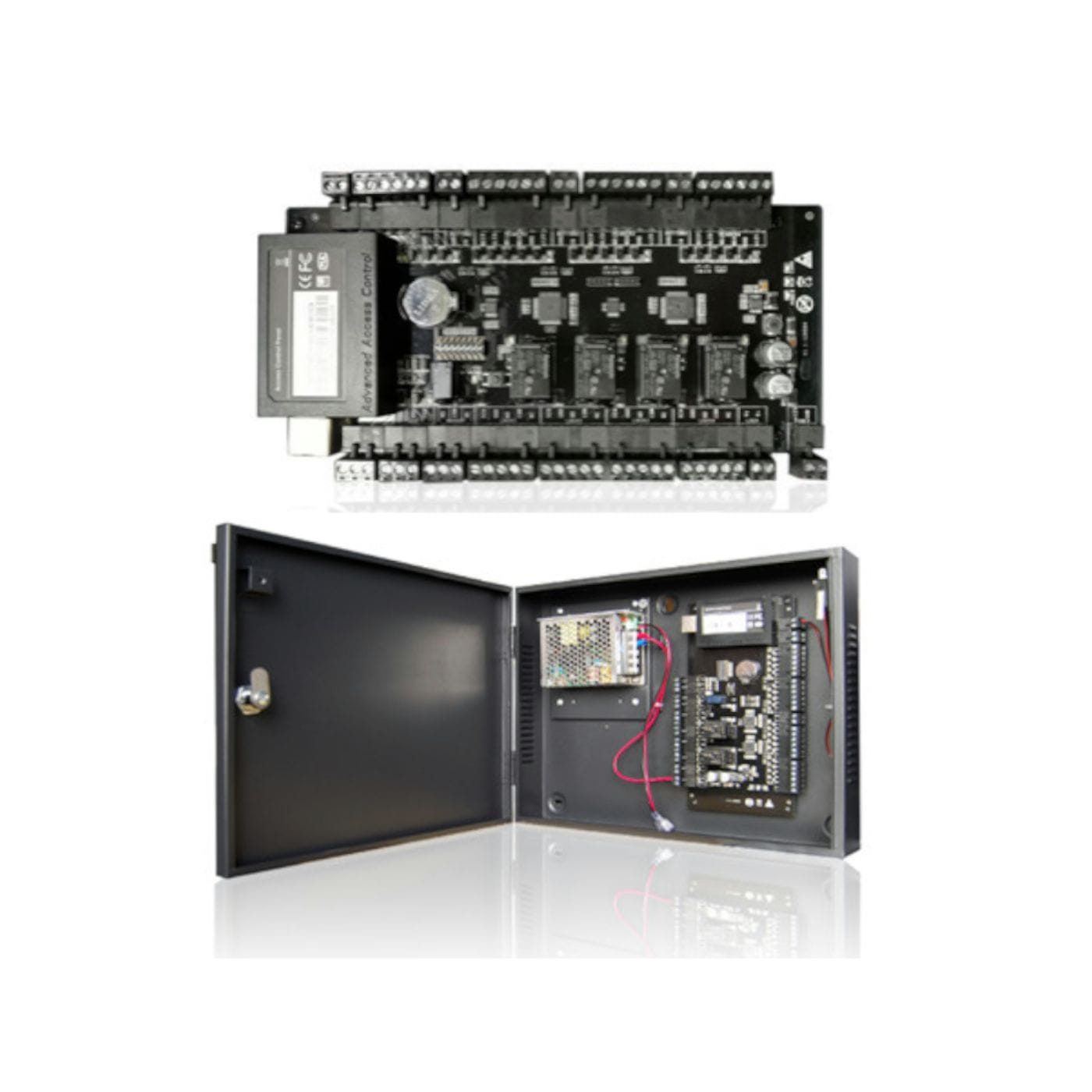

The ZK Teco C3-400 Network Based 4-Entrances Access Control System is a security setup designed to manage and monitor access to four different entry points, all connected through a network for centralized control.

Adopt TCP/IP and RS-485 communication ensure fast and reliable data transfer between the controller and the server.

This system ensures only authorized individuals can access secured areas through four distinct entrances, controlled by a central management platform via a network. Combines hardware (controllers, readers, locks) with software for monitoring and reporting.

Key Features

• • Multi-door Control
    • Supports 4 doors with 4 readers (one reader per door for entry).
    • Can control both entry and exit with additional readers.
  • Communication
    • TCP/IP and RS-485 communication ensure fast and reliable data transfer between the controller and the server.
    • Web-based management is possible through ZKTeco software platforms like ZK Access or ZKBioSecurity.
  • Capacity:
    • Supports up to 30,000 cardholders and 100,000 event logs, ensuring it handles large organizations smoothly.
  • Input/Output Ports
    • Inputs for door status sensors, exit buttons, and alarms.
    • Outputs include 4 relay outputs to control electric locks and alarms.
  • Advanced Access Features
    • Anti-passback (prevents users from re-entering without exiting).
    • Multi-card opening (requires multiple cards for sensitive areas).
    • First-card unlock (first authorized cardholder of the day unlocks the door).
  • Power Supply
    • Requires a 12V DC power supply.
    • Built-in protection for short circuits and power surges.
  • Software Compatibility:
    • Works with ZKTeco’s access control software for user management, time zones, and real-time monitoring.
  • Security & Reliability:
    • Supports backup and restores configurations.
    • Keeps events stored even during network interruptions.
  • Housing & Installation:
    • Durable metal casing with neat wiring layout.
    • Suitable for indoor installations.

Device Specification

• • Communication: TCP/IP, RS-485
  • Power supply: 12V DC, 1.5A
  • Number of Doors Controlled: 2 Doors
  • User Support: 30,000 users
  • Number of Readers Support: 4 readers
  • Events: 100,000
  • Reader Wiring Distance: 100M max.
  • Card Reader Wiegand Format: Wiegand 26 ~ 40bits (factory default is 26 bits)
  • Board Dimension: 6.3in × 4.17in. (160mm×106mm)
  • Management Software: ZK software

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

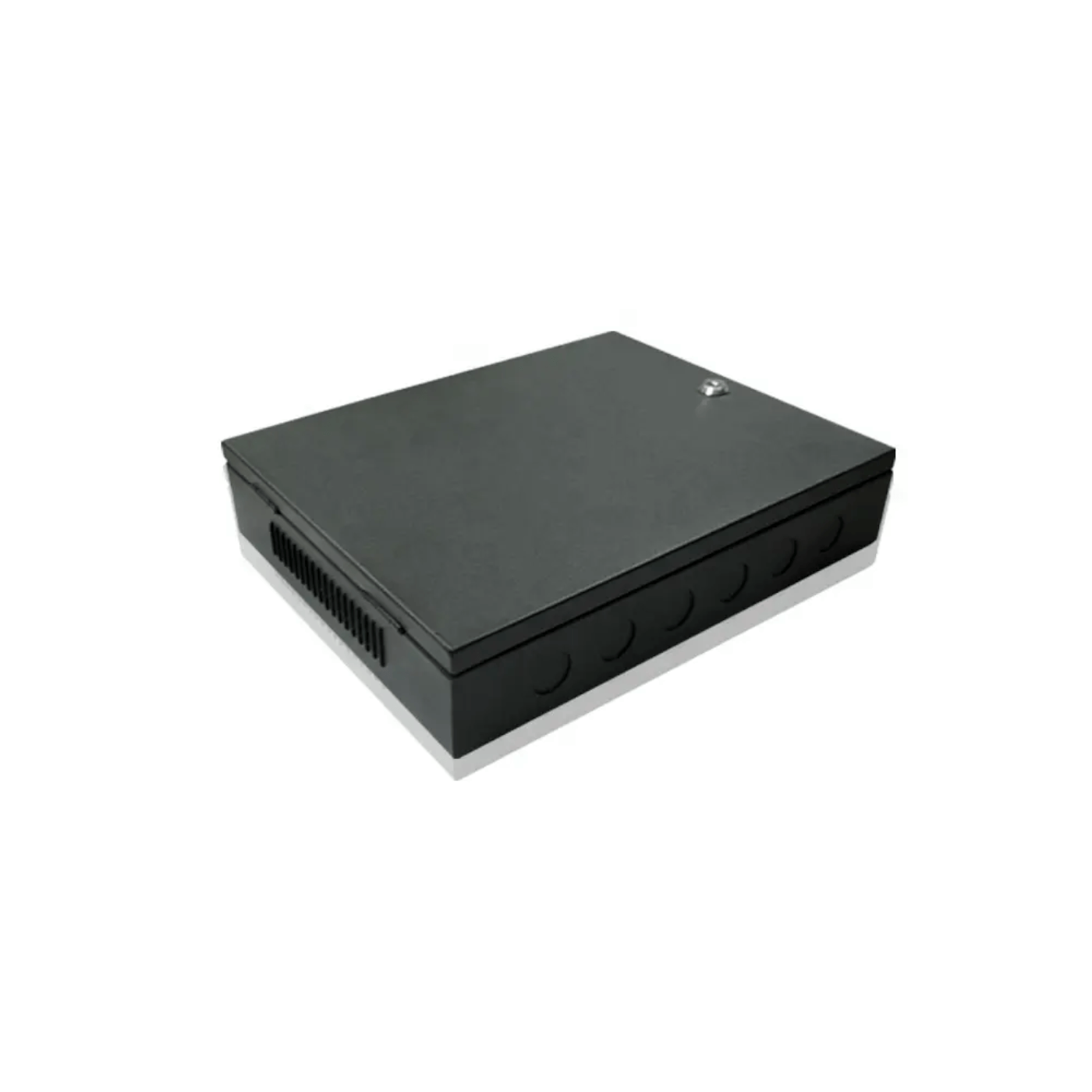

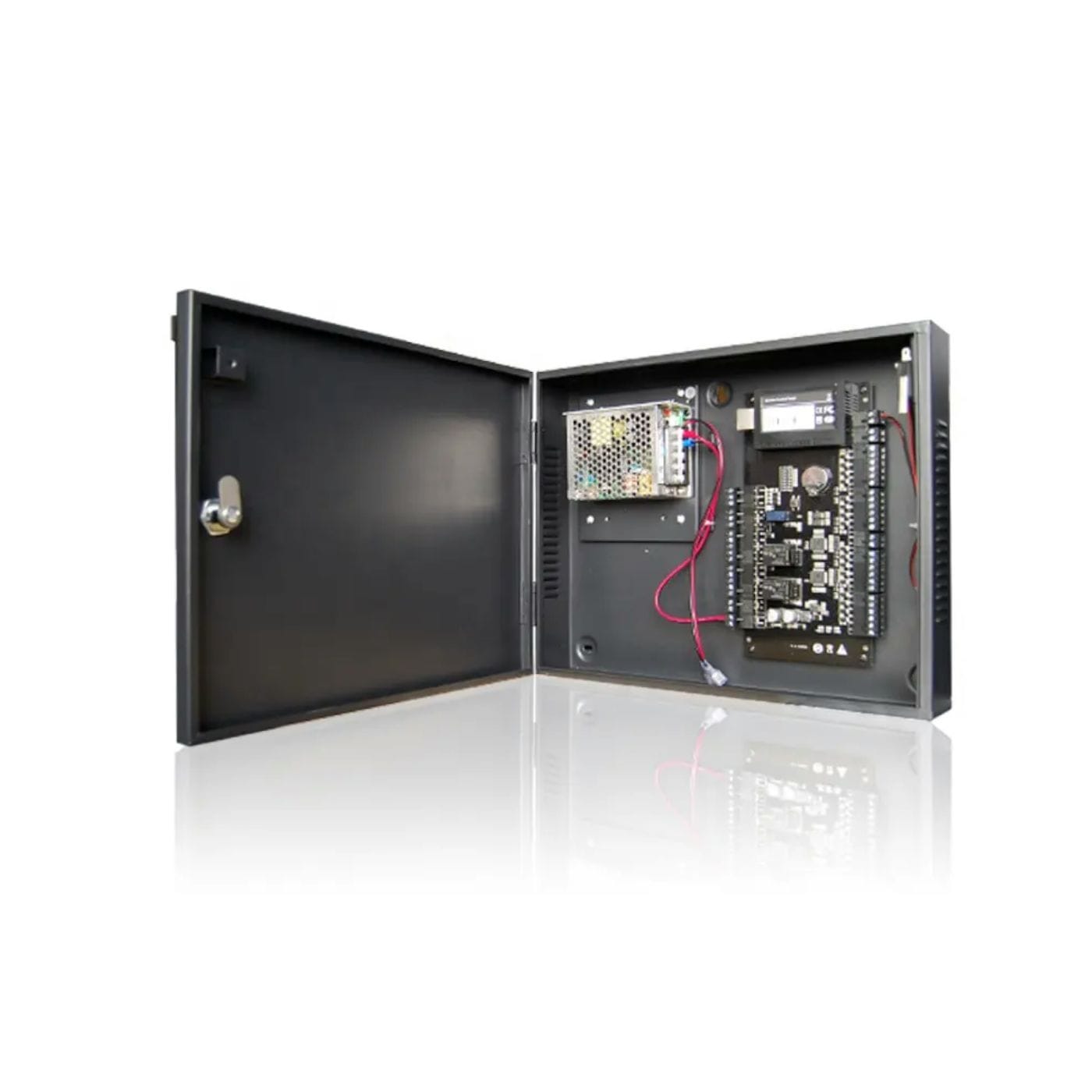

• • 1 C3-400 kit [Panel included]
  • Power supply
  • Mounting screws
  • Template & installation instructions

Manufacturer Warranty

• • 1 Year System & Harware Limited Warranty
