7 inch 2-wire Video Intercom Monitor Station

7 inch 2-wire Video Intercom Monitor Station

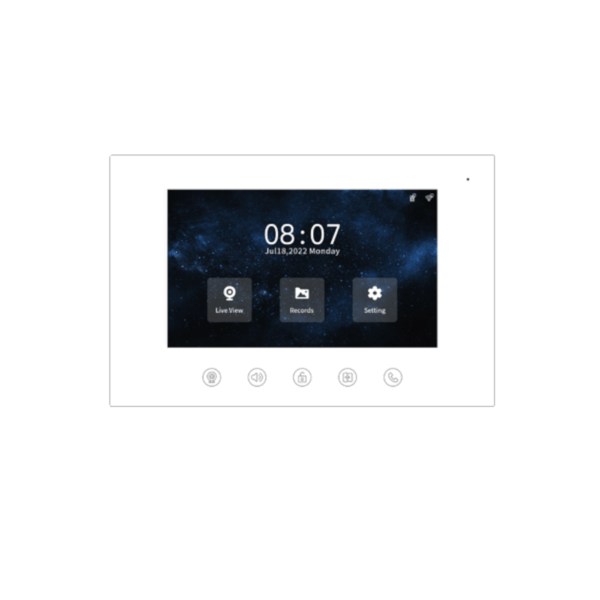

The 2W-IS13 2-Wire Audio Video Intercom Monitor is a communication monitor designed for use with the 2W-OS02 intercom door station camera. It allows users to see and communicate with visitors at the entrance before granting access.

Touchscreen Control – Provides an intuitive interface for answering calls and unlocking doors.

Adopts 2-wire technology that simplifies installation by requiring only two wires for both power and signal transmission, making it ideal for upgrading older intercom systems without extensive rewiring.

Key Features

• • Video Communication – Displays live video feed from the door station, allowing visual verification of visitors.
  • Two-Way Audio – Enables clear communication with visitors using a built-in microphone and speaker.
  • 2-Wire Connection – Uses just two wires for power and data transmission, reducing installation complexity.
  • HD Display – Features a high-resolution screen for sharp image quality.
  • Touchscreen Control – Provides an intuitive interface for answering calls and unlocking doors.
  • Night Vision Support – Integrated infrared or low-light camera compatibility for visibility in the dark.
  • Multiple Monitor Support – Can be connected to multiple indoor monitors or sub-stations for expanded coverage.
  • Remote Unlock – Allows door access control with the press of a button.
  • Expandable System – Supports additional cameras, monitors, or smart home integration.

Other Features

• • • Accept audio + video calls initiated by 2W-OS02 door camera
    • Touch screen operation with auto –display guests real-time video
    • Touch to talk, unlock connected electronic door lock or decline call
    • Support 32GB mini sd card [Card Sold Separately] for video recording
    • Integrates several door cameras
    • Support analog high definition cctv camera integration
    • Language choice between English, Francais, Italiano, Deutsch, Espanol, Turkce

Device Specification

• • Screen Size: 7 inch
  • Working Voltage: DC 24~32V
  • Working Current: ≤ 220mA (DC 24V)
  • Standby Current: ≤ 160mA
  • Working Temperature: -25℃~55℃
  • Storage Temperature: -40℃~70℃
  • Dimensions: Width: 8.7 | Height: 5.5 | Thickness: 0.9 inches
