ZDL-M20 OmniHub™ Smart Home Automation & Media Gateway

ZDL-M20 OmniHub™ 10.1” Smart Home Automation & Multi-Zone Media Gateway with Intercom Integration, Zigbee/WiFi/Bluetooth Control & 8-Zone Amplifier

The ZDL-M20 OmniHub™ Smart Home Automation & Media Gateway is a powerful all-in-one central hub designed to unify home automation, intercom communication, and multi-zone audio entertainment into a single intelligent platform. Built on an Android-based Home OS, the ZDL-M20 functions as a standalone automation controller and media center, while also integrating seamlessly with ZDL Systems IP-based intercom monitors, including the ZDL-IPWS7, ZDL-IPWX7, and ZDL-IPW10W series, operating as a fully interactive station within the intercom monitor group.

Seamless integration with ZDL-IPWS7 / ZDL-IPWX7 / ZDL-IPW10W stations – Multi-zone audio distribution with built-in 8-channel amplifier – LAN-based intercom voice communication

Smart Home Control Made Simple – The ZDL-M20 transforms your property into a fully automated smart environment by allowing centralized control of: Lighting systems | Curtains & motorized blinds | Air conditioning & HVAC systems | Smart switches, relays, and IoT devices

With support for Wi-Fi, Bluetooth, Zigbee, and RS485, the system ensures compatibility with a wide range of smart devices, making it ideal for both new installations and retrofit projects.

Seamless Intercom & Communication Integration – Designed to work natively with ZDL intercom ecosystems, the OmniHub™ enables: LAN-based voice calling between intercom monitors | Operation as a station within the intercom group | Unified communication between rooms and smart devices. This makes it a perfect addition to homes, apartments, offices, and multi-room environments.

Multi-Zone Audio & Entertainment Hub – Enjoy immersive audio throughout your space with distributed multi-zone music playback: Stream music to ZDL intercom monitors or external speakers | Supports online streaming, local media, Bluetooth audio, and auxiliary input | Built-in 8-zone amplifier (15W per channel) for powerful, clear sound | Expandable with external high-power amplifiers for larger installations.

Voice Control & Intelligent Scenes – Take full control using voice commands: Control lights, devices, and automation scenes | Voice search for music, news, radio, weather, schedules, and more | Create custom automation scenes (e.g., “Good Morning”, “Away Mode”, “Movie Mode”)

Advanced Smart Features – Smartphone pairing via Wi-Fi, Bluetooth, and Zigbee | Scene automation and scheduling | Real-time control and monitoring of connected devices | Flexible audio source combination playback | Local and cloud-enabled smart ecosystem support.

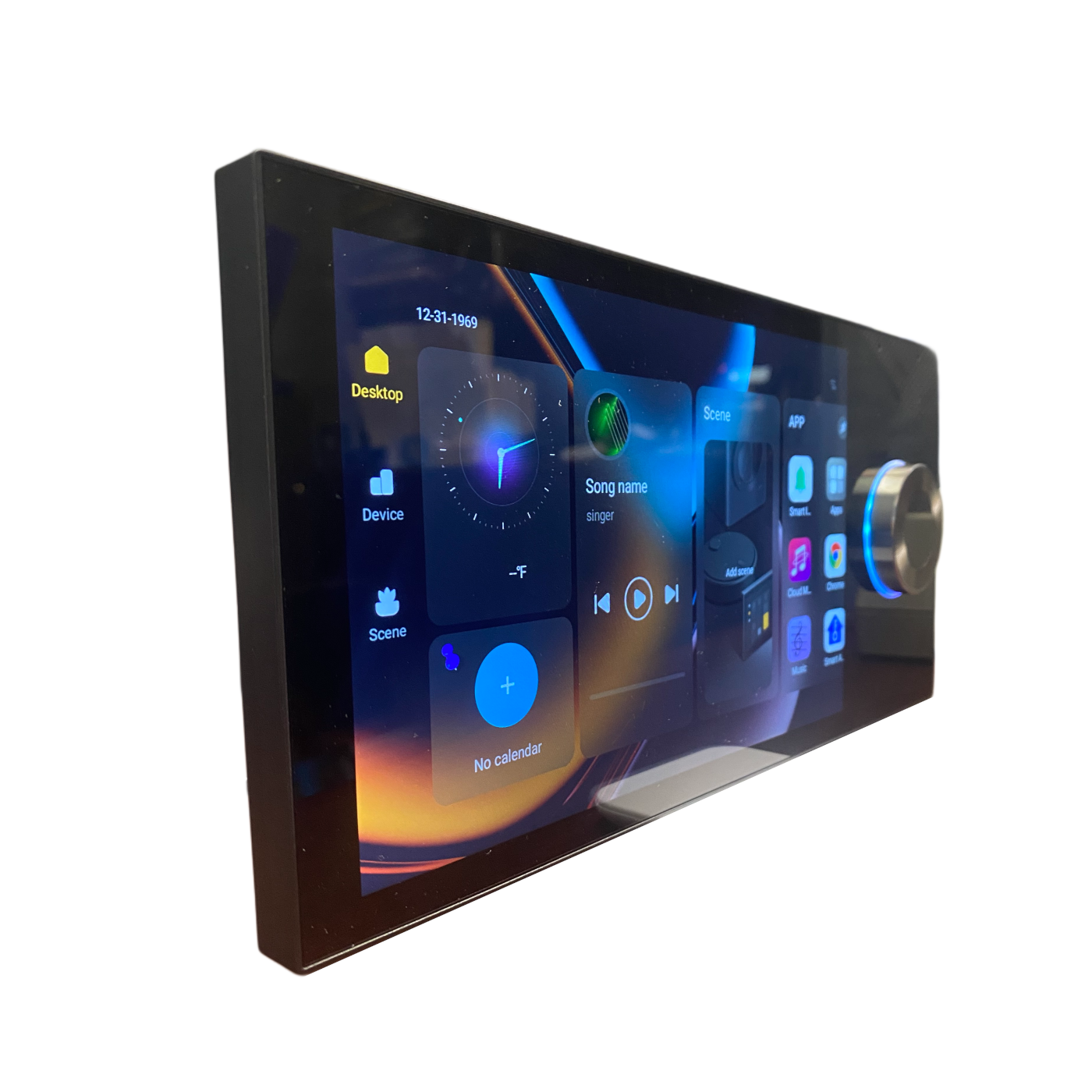

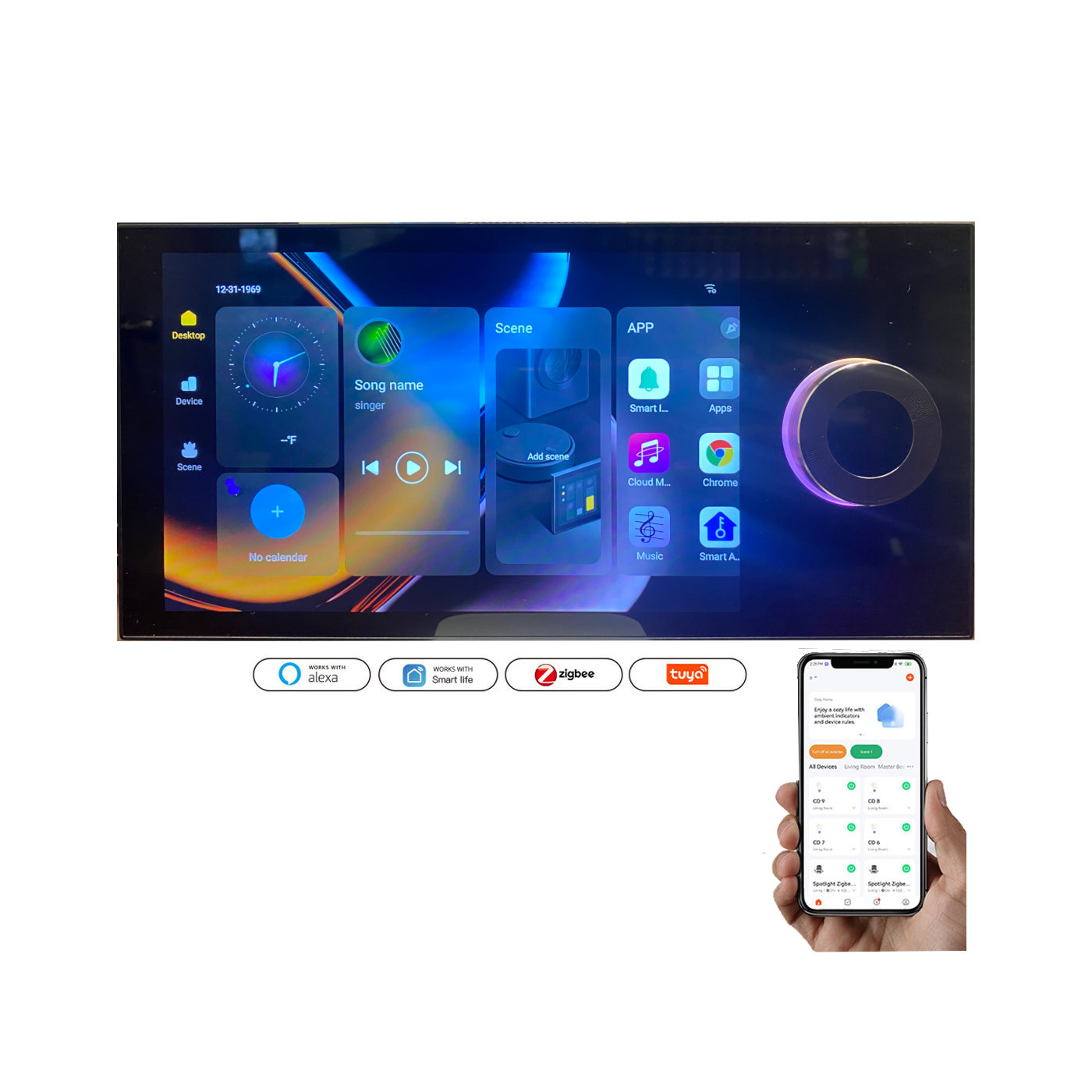

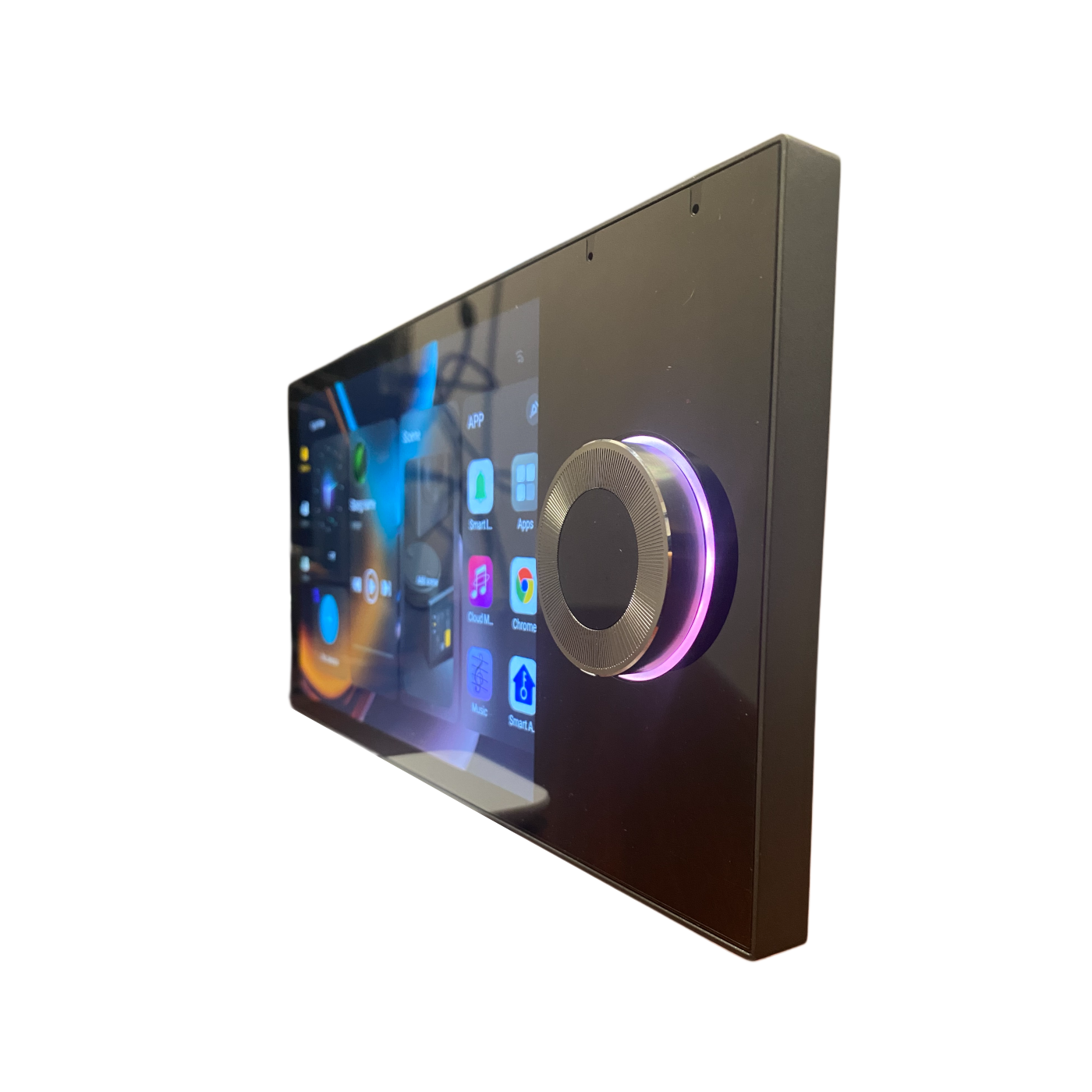

Modern Design & Easy Installation – Featuring a sleek 10.1-inch HD IPS touchscreen, the ZDL-M20 offers a clean, modern interface with intuitive controls. Its surface-mounted design ensures quick installation using standard wiring and included mounting bracket.

Device Key Features

• • All-in-one Smart Home Hub + Media Controller + Intercom Station
  • Seamless integration with ZDL-IPWS7 / ZDL-IPWX7 / ZDL-IPW10W smart monitors
  • Multi-zone audio distribution with built-in 8-channel amplifier
  • Supports Wi-Fi, Bluetooth, Zigbee, and RS485 control
  • Voice control & scene automation capability
  • LAN-based intercom voice communication
  • Supports external speakers & high-power amplifiers
  • Multiple audio sources: online, local, Bluetooth, AUX
  • 10.1” HD touchscreen interface
  • Ideal for homes, offices, villas, apartments, and smart buildings

Technical Specifications

• • General: Model: ZDL-M20 OmniHub™ | Operating System: Android (Home OS) | Application: Smart Home Automation + Media Gateway + Intercom Integration
  • Display: Screen Size: 10.1-inch Touchscreen | Display Type: HD IPS LCD | Resolution: 1280 × 800
  • Network & Connectivity: Wi-Fi: Supported | Bluetooth: Supported | Zigbee: Supported | LAN Communication: Supported (Intercom Integration)
  • Memory & Storage: Internal Memory: 8GB | External Storage: SD Card Slot (Up to 32GB)
  • Interfaces: USB: Type-C | RS485: Supported (Smart Device Control) | Auxiliary Audio Output: Yes | Speaker Output 1: Yes | Speaker Output 2: Yes | Amplifier Output: 8 Channels
  • Audio Performance: Amplifier Output Power: 15W × 8 Channels | Impedance: 8 Ohms | Frequency Response: 20Hz – 20kHz | Total Harmonic Distortion (THD): Vcc = 12V, F = 1kHz, Po = 15W → 0.03%
  • Smart Features: Voice Control: Supported | Scene Automation: Supported | Multi-Zone Music Playback: Supported | Intercom Voice Calling (LAN): Supported | Smartphone Integration: Wi-Fi / Bluetooth / Zigbee.
  • Power: Power Supply: 100VAC ~ 240VAC | AC Power Cable: Included
  • Physical: Dimensions: 289 × 156 × 11 mm | Mounting: Surface Mount (Bracket Included)

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 1 ZDL-M20 Smart panel
  • 1 AC Power lead [Brown & Blue wire with 2-prong end]

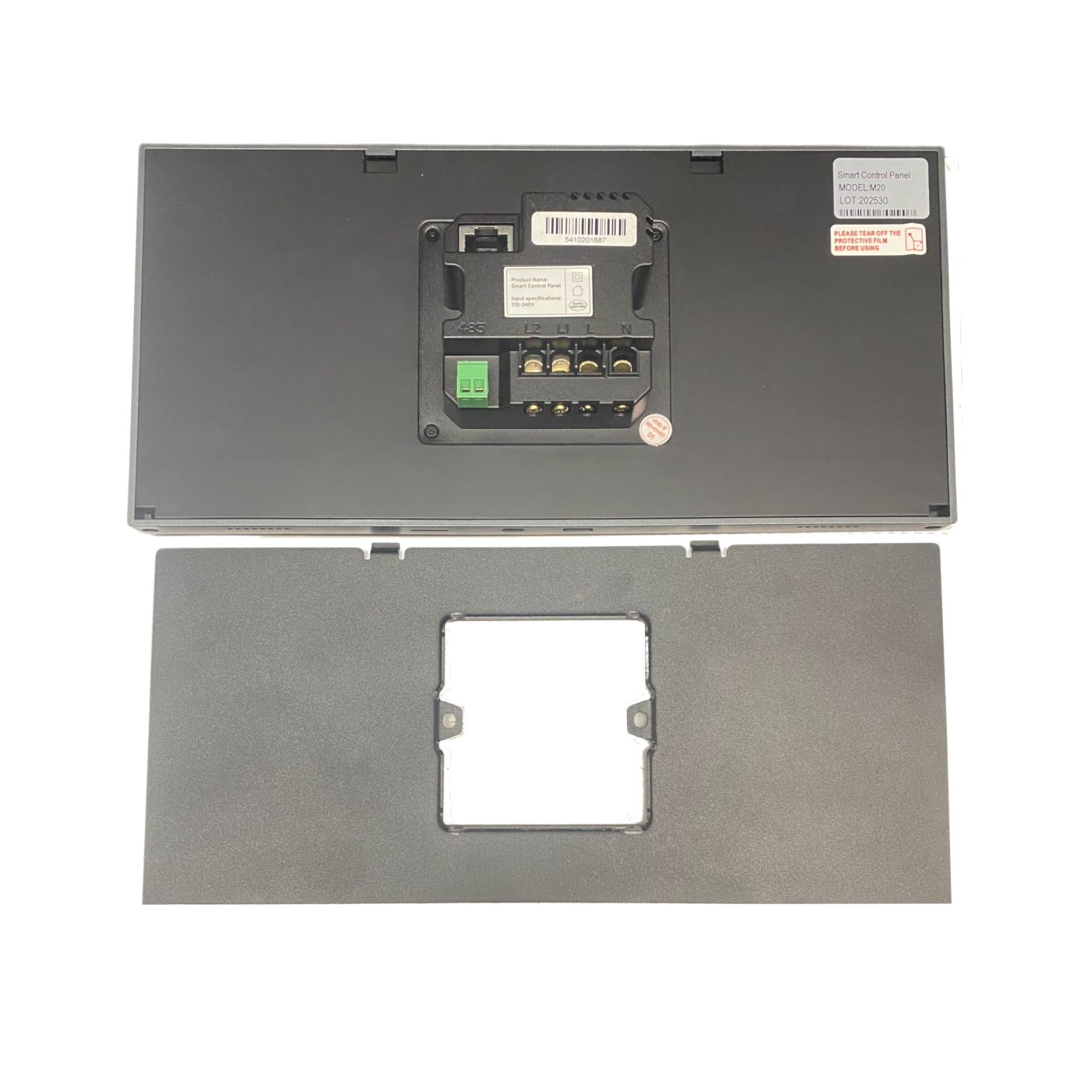

  • 1 Mounting bracket
  • Mounting Accessories
  • Instructions & Manuals

Manufacturer Warranty

• • 1 Year System & Harware Limited Warranty
