Bio-metric + Rfid Card Reader Stand-alone Access Control

Bio-metric + Rfid Card Reader Stand-alone Access Control

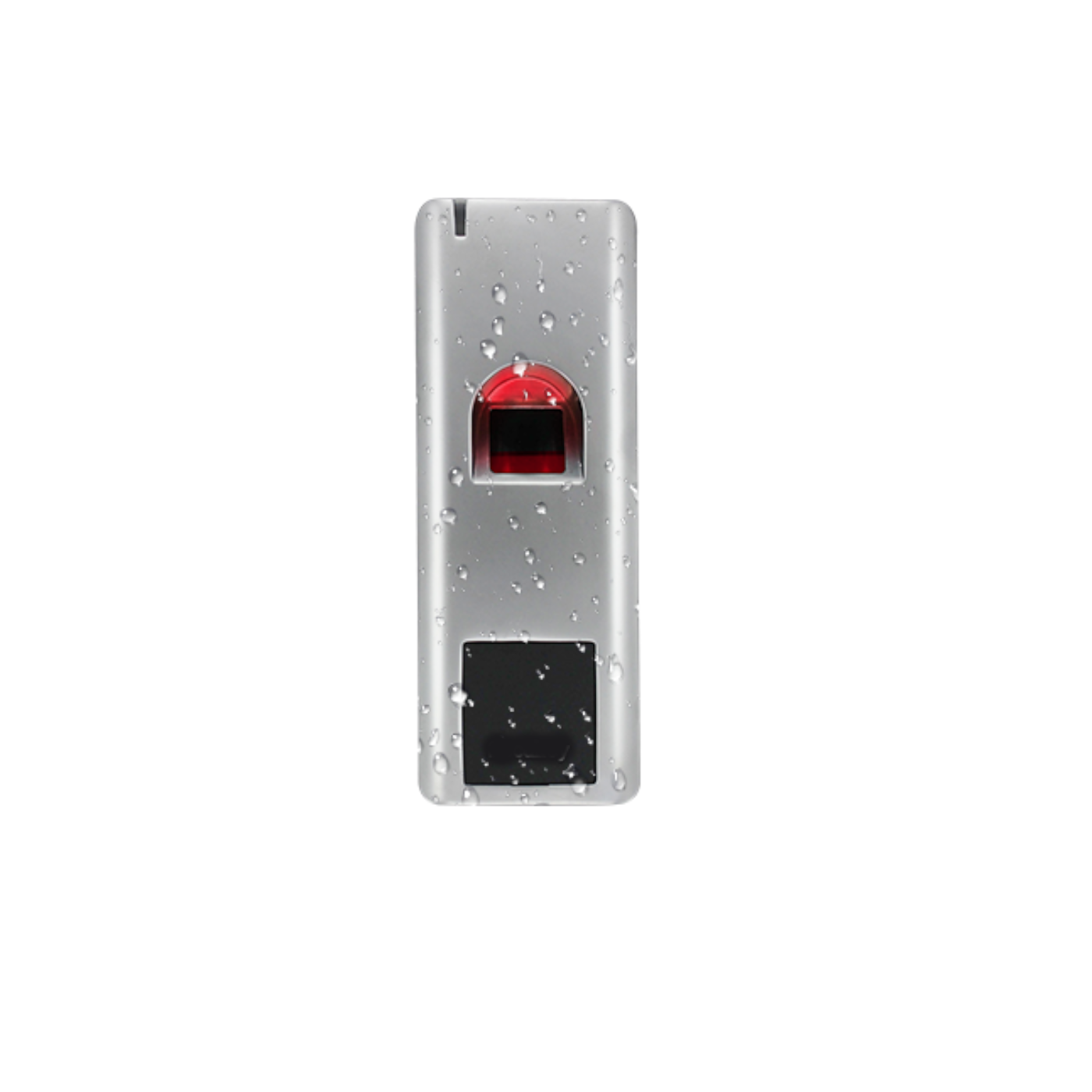

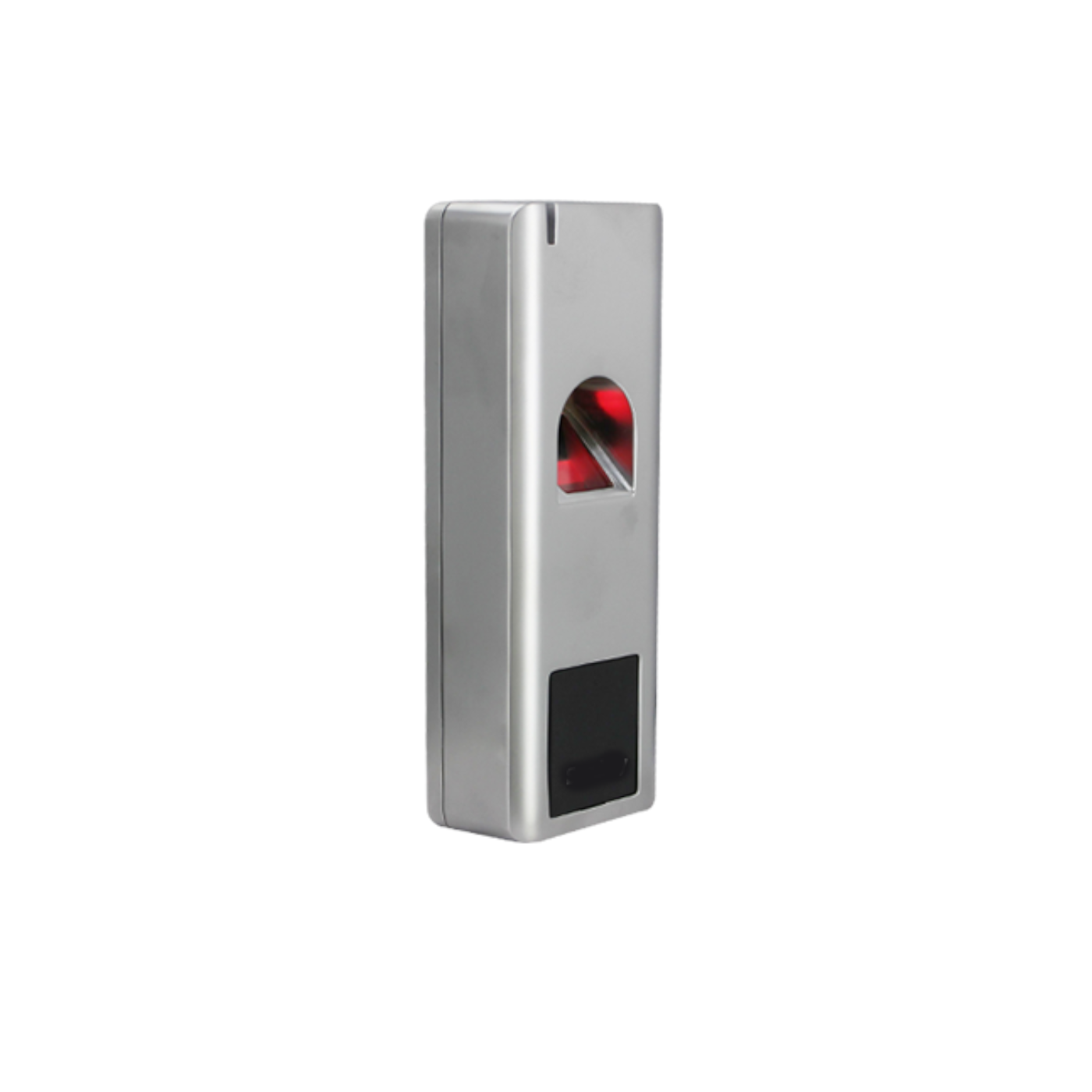

The SF1-HE Bio-metric + Rfid Card Reader Stand-alone Access Control is an advanced, all-in-one security solution designed to control access to secure areas.

Standalone Operation: No need for a computer or network connection — operates independently with built-in memory and processing.

It combines biometric fingerprint recognition and RFID card authentication in a single, compact unit, ensuring only authorized personnel can enter.

Key Features

• • Dual Authentication Modes: Supports fingerprint recognition and RFID cards (125kHz and HID options). Can be configured for single or dual-factor authentication for enhanced security.
  • Standalone Operation: No need for a computer or network connection — operates independently with built-in memory and processing.
  • User Capacity: Stores up to 1000+ fingerprints and 2,000 RFID card users.
  • Fast & Accurate Recognition: Fingerprint matching in less than 1 second with a false rejection rate (FRR) < 0.01%.
  • Durable & Weatherproof: IP65-rated for indoor and outdoor use.
  • Multiple Access Modes: Supports fingerprint only, card only, or fingerprint + card for high-security zones.
  • Output Support: Works with electric locks, magnetic locks, alarms, or door sensors.
  • Anti-Tamper Protection: Alarm triggers when the device is forcibly removed or tampered with.
  • Easy Setup: Supports RS485, or Wiegand interfaces for configuration and data transfer.

Ideal Applications

• • Offices & Corporate Buildings
  • Server Rooms & Data Centers
  • Warehouses & Factories
  • Residential Communities
  • Healthcare Facilities
  • Educational Institutions

Device Specification

• • User Capacity: Fingerprint = 1000 | Card = 2000. 3000 max.
  • Operating Voltage: 12VDC <45mA
  • Card Type: EM & HID [125KHz]
  • Read Range: 1 ~ 4 cm
  • Fingerprint Reader: Resolution = 500DPI | Identification Time = <1S | FAR = <0.01% | FRR = <0.1%
  • Relay: One [NO | NC | COM] | Output Time = 0 ~ 99 seconds [Default: 5 seconds] | Lock Output Load = 2 Amp max.
  • Wiegand Interface: 26 ~ 44 bits output
  • Operating Temperature: -22 deg. F ~ 140 deg. F
  • Operating Humidity: 10%RH ~ 99%RH
  • Structural Material: Zinc alloy

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 1 Access Control unit
  • Mounting screws
  • Template & installation instructions

Manufacturer Warranty

• • 1 Year System & Harware Limited Warranty
