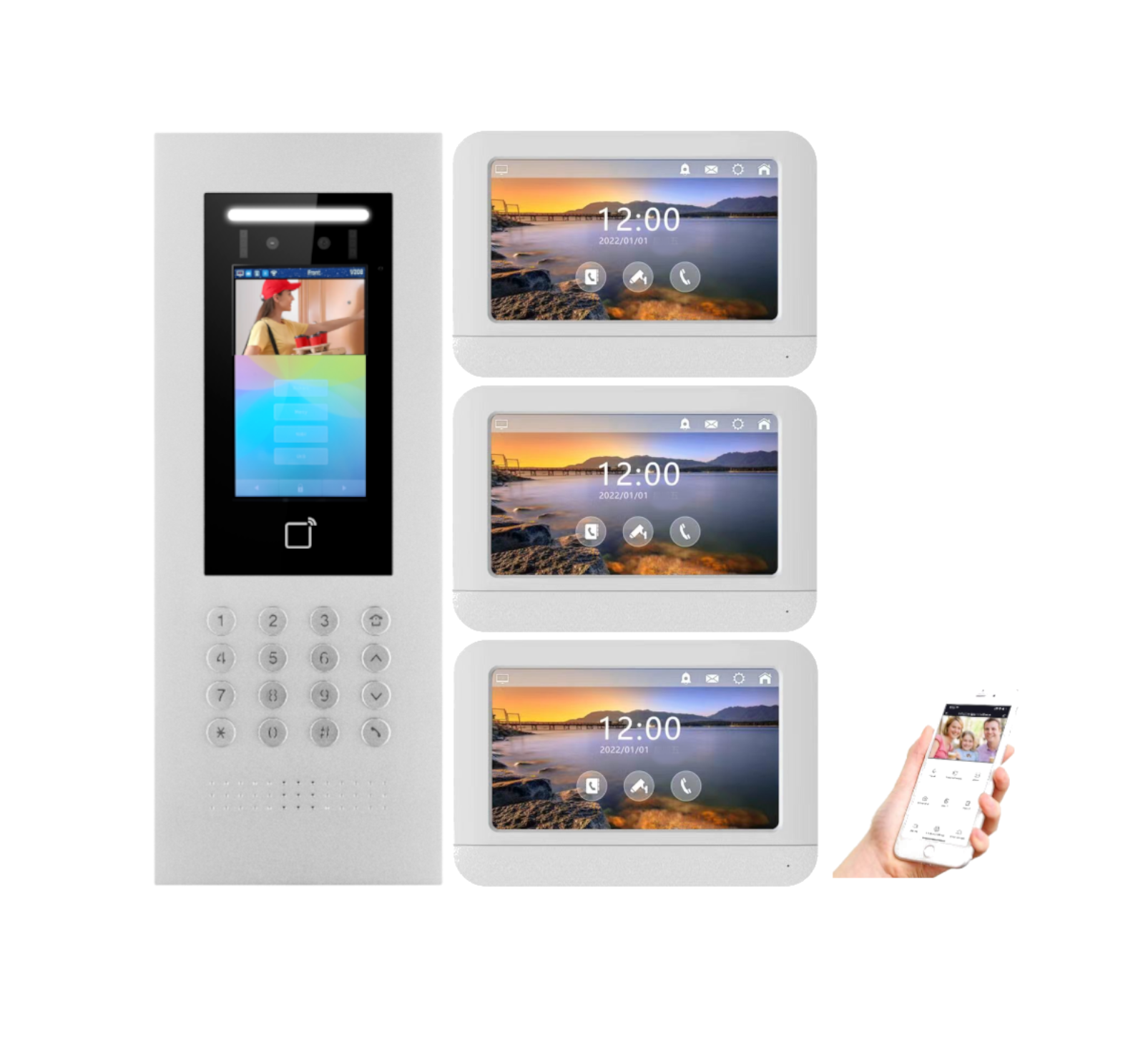

3 Unit Multi-tenant Building IP Intercom With Video

3 Unit Multi-tenant Building IP Intercom With Video

The ZDL-73 3 Unit Multi-tenant Building IP Intercom With Video is a 3-unit modern entry system designed to provide secure, convenient, and smart communication between tenants and visitors.

IP-Based System Internet Protocol (IP) Connection: Connects through category-5/6 ethernet network cable

Includes outdoor rated intuitive user friendly high resolution touch-screen door camera with smart facial recognition camera with sensor configurable to Grant/Reject access to connected entry doors.

Key Features

• • Video Communication
    • Built-in Camera: Allows tenants to see live video of visitors before granting access.
    • Wide-Angle Lens: Provides a broad view of the entryway for better visibility.
    • Night Vision: Ensures clear visibility even in low-light conditions.
  • IP-Based System
    • Internet Protocol (IP) Connection: Connects through the building’s network (Ethernet or Wi-Fi), enabling high-quality audio and video transmission.
    • Remote Access: Tenants can answer calls, view video, and unlock the door from a smartphone or tablet — even when they’re not home.
    • Cloud Integration: Some systems offer cloud storage for visitor logs, snapshots, or recorded video.
  • Multi-Tenant Functionality
    • Individual Call Buttons or Digital Directory: Visitors select the unit they want to contact.
    • Independent Communication Channels: Each tenant has a separate, private audio and video link.
    • Custom Ringtones/Notifications: Tenants get notified distinctly.
  • Access Control
    • Door Release Function: Tenants can remotely unlock the building door after confirming the visitor.
    • Face Recognition, Keycard, PIN, or Smartphone Entry: Supports alternative access methods for residents and authorized guests.
    • Anti-Tamper Design: Secure, vandal-resistant housing protects the system.
  • Installation and Configuration
    • Surface or Flush Mount: Options to match the building’s aesthetic and installation needs.
    • Power over Ethernet (PoE): Simplifies wiring by combining power and data in one cable.
    • Scalable: Can expand to more units or additional entry points if needed.
  • Additional Features
    • Two-Way Audio: Clear, hands-free communication.
    • Call Forwarding: If the primary tenant doesn’t respond, the call can redirect to a backup contact.
    • Event Logging: Tracks entry activity and visitor interactions.

Common Use Cases

• • Gated communities and apartment complexes
  • Office buildings and co-working spaces
  • Senior living facilities and student housing
  • Mixed-use buildings with both residential and commercial units

Device Specification

ZDL-7 IP Intercom Door Station

• • Camera Resolution: 2MP
  • Device Screen Size: 5-Inch
  • Camera Veiwing Angle: 150-Degree
  • Night View: IR LEDs ON [1-IR-LEDS]
  • Connection: RJ45-Female [Optional 8-Wire Connector Available]
  • WiFi Function / Ethernet LAN
  • Power Source: 12VDC Or POE
  • Operating Current: <400mA
  • Power Consumption: <5-Watts
  • Panel Dimension: Width-5.5 X Height-14.5 X Thickness-2.0 Inches
  • Mounting Style: Flush Mounting [Recommended]
  • Operating Temperature: -10 Degree To 158 Degree Fahrenheit
  • Weight: 18 Pounds

ZDL-IPWS7 Smart Touch Screen Monitor

• • Device Screen Size: 7-Inch
  • Screen Operation: Capacitive touch screen
  • Camera Veiwing Angle: 150-Degree
  • Screen Resolution: 1024 X 600
  • LAN Connection: RJ45-Female
  • Network Support: WiFi / LAN [Ethernet]
  • Power Source: 12VDC Or POE [48V]
  • Operating Current: <400mA
  • Power Consumption: <5-Watts
  • Panel Dimension: Width-9.5 X Height-6.5 X Thickness-0.9 Inches
  • Monitor Mounting Style: Flush Mounting [Recommended]
  • Compatible Door Cameras: ZDL-IPW2 | ZDL-IPW5LW | ZDL-IPW100W | ZDL-IPW80W | ZDL-IPW1000 | ZDL-IPW5000 | ZDL-7 | ZDL-700 | ZDL-7500 | ZDL-8500.
  • IP Camera Support: HikVision | ONVIF | Dahua
  • Weight: 2 Pounds

Got Application Customization Questions?

• • Chat With One Of Our Qualified Agents online between the hours of 9:00Am – 5:00Pm CST
  • Email our Sales Department to get an answer within 24-hours
  • Contact Sales By Phone between the hours of 9:00Am – 5:00Pm to get instant recommendation

Included Items & Accessories

• • 1 ZDL-7 Door Camera
  • 3 ZDL-IPWS7W Monitor
  • 4 Port Poe Switch [System Power Supply]
  • 2 Test Key-fobs
  • Mounting Accessories
  • Instructions & Manuals

Manufacturer Warranty

• • 1 Year System & Harware Limited Warranty
